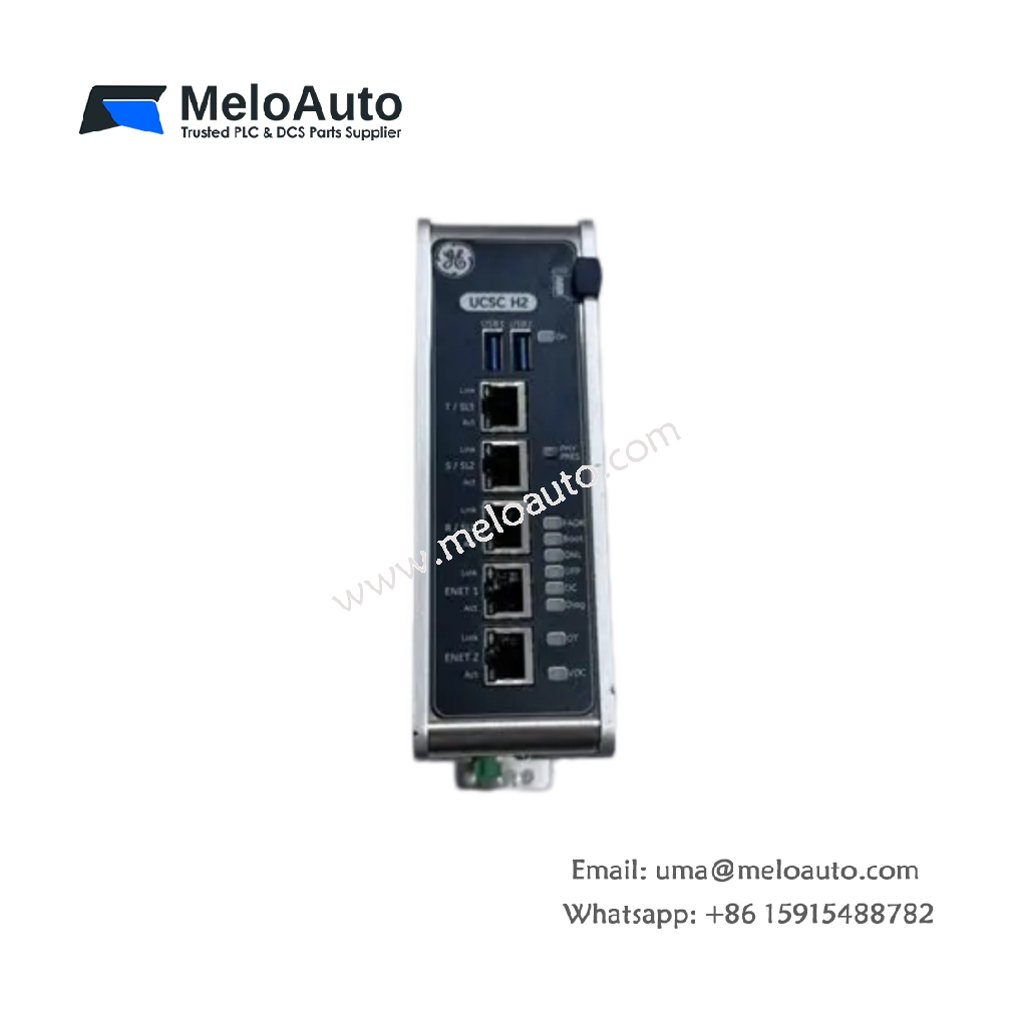

GE IS420UCSCH2A Mark VIe Controller Module

Product Overview

The GE IS420UCSCH2A serves as a mid-range controller module for the Mark VIe distributed control platform. This unit executes turbine control strategies with consistent determinism and reliability. Its balanced feature set suits both simple and moderately complex automation tasks. We engineered this module for versatility across diverse power generation applications.

Processing Architecture and Memory Configuration

This controller module combines capable processing with flexible storage options. The GE IS420UCSCH2A runs the QNX Neutrino operating system for rock-solid real-time execution. Its memory subsystem handles moderate application sizes without performance compromises. The module retains all configuration data in flash memory without battery assistance. Furthermore, onboard diagnostics monitor system health and alert operators to potential issues.

Technical Specifications

Parameter	Specification
Processor	600 MHz Intel EP80579
Operating System	QNX Neutrino 6.5
System Memory	256 MB DDR2 SDRAM
Flash Storage	2 GB CompactFlash (industrial grade)
User Program Memory	1 GB
Ethernet Ports	5 total (4 x IONet, 1 x management)
IONet Speed	100 Mbps full-duplex
Serial Console	1 x RS-232 with RJ-45 connector
USB Host Ports	2 x USB 2.0
Maximum I/O Packs	64 per controller
Minimum Scan Rate	5 ms
Real-Time Clock Accuracy	±5 ppm with battery backup
Clock Battery Type	3.6 V lithium, 5 years typical life
LED Indicators	Power, run, fault, link, activity
Power Supply	24 V DC nominal (18–32 V DC range)
Power Consumption	27 W peak, 16 W typical
Inrush Current	15 A maximum for 10 ms
Weight	1.22 kg (approximately 2.69 lbs)
Dimensions (W x H x D)	63.5 mm x 273 mm x 193 mm
Mounting Type	DIN rail with 1.5 mm steel bracket
Operating Temperature	-30°C to +65°C
Storage Temperature	-40°C to +85°C
Relative Humidity	5% to 95% non-condensing
Vibration Resistance	2 g at 10–500 Hz
Shock Resistance	15 g for 11 ms
Protection Rating	IP20 (when mounted)

Key Functional Benefits

The GE IS420UCSCH2A offers ample storage capacity for data-intensive applications. Its fanless construction removes mechanical failure points from the system. Consequently, this module achieves exceptional reliability in continuous duty cycles. The controller supports hot-standby configurations for critical process areas. Moreover, its fast scan rate accommodates demanding closed-loop control requirements.

Installation and System Connectivity

You must mount the GE IS420UCSCH2A on a standard DIN rail inside an appropriate enclosure. The controller communicates with I/O packs via the redundant IONet network backbone. Proper cable segregation between power and data lines ensures signal integrity. Additionally, you can access management functions through the dedicated Ethernet port. This module integrates seamlessly into the Mark VIe control system architecture.

Environmental Compliance and Reliability

The GE IS420UCSCH2A meets CE, UL 61010-1, and RoHS directives. Its conformal-coated PCB resists moisture, dust, and corrosive gases. The module maintains specification across the full temperature operating range. Furthermore, the MTBF exceeds 200,000 hours under normal conditions. This robust engineering ensures dependable performance throughout the equipment’s service life.
