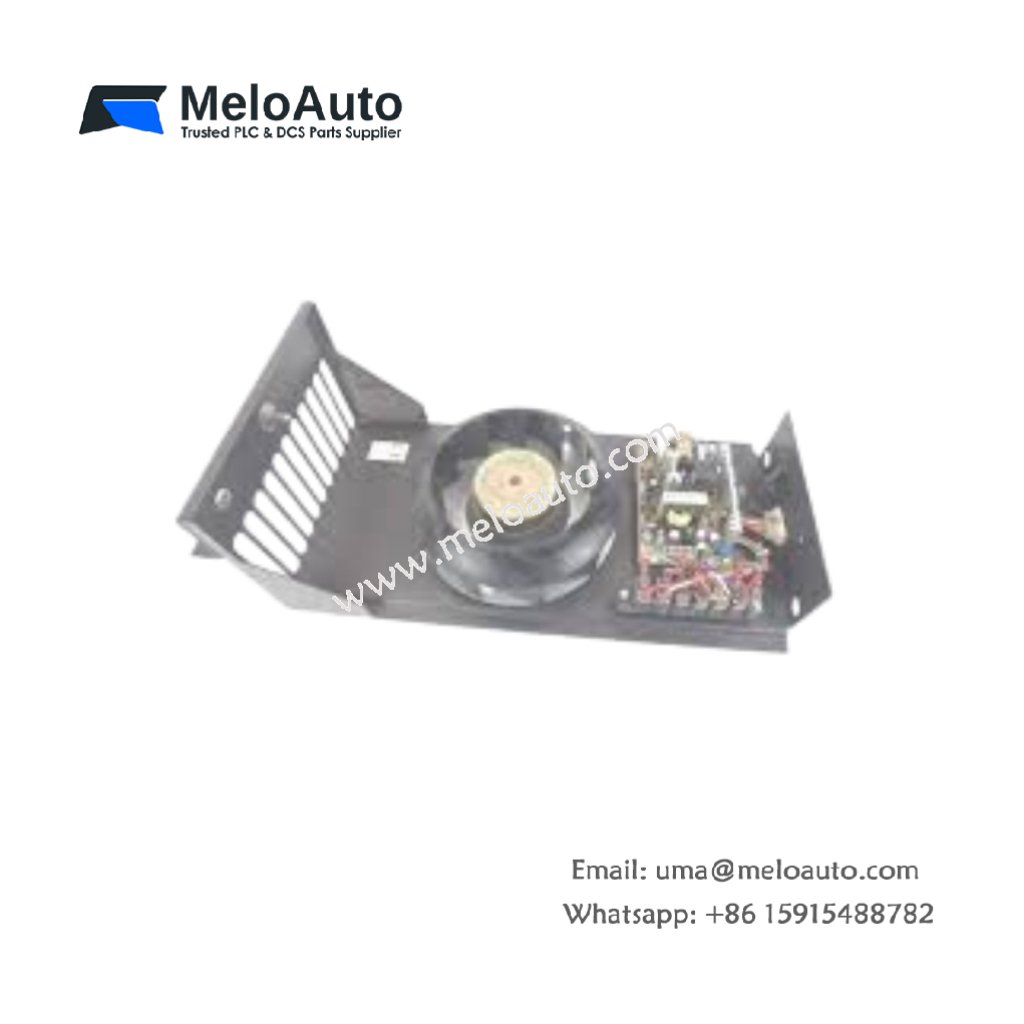

ABB Bailey IPFAN14 Fan Module | 85 CFM

Cooling Performance and Airflow Direction

The ABB Bailey IPFAN14 provides forced-air cooling for Bailey cabinet enclosures. This module draws hot air out of the rack assembly continuously. It prevents overheating of adjacent controller and I/O modules. The fan operates quietly while maintaining steady airflow.

Technical Specifications

Parameter	Specification
Model	IPFAN14
Category	Fan Module
Height	267 mm
Width	52 mm
Depth	185 mm
Weight	0.85 kg
Airflow Rate	85 CFM (cubic feet per minute)
Fan Speed	3200 RPM ±10%
Noise Level	48 dBA
Connector Type	1 x 3-pin power header
Status Indicator	1 x green RUN LED
Internal Components	1 brushless DC motor, 1 impeller, 1 speed sensor
Energy Storage	None (no battery or capacitor)

Internal Components and Fan Technology

The IPFAN14 contains a brushless DC motor for long service life. One plastic impeller with seven blades generates the 85 CFM airflow. A built-in speed sensor monitors the fan rotation continuously. The module sends a fault signal when the speed drops below 2500 RPM. The ABB Bailey IPFAN14 stores no electrical energy internally. It includes zero capacitors or batteries for safe operation.

Installation and Replacement Guidelines

Install this fan module at the top of the Bailey rack enclosure. Connect the 3-pin power header to the dedicated fan power port. Ensure the airflow arrow points toward the exhaust direction. Replace the IPFAN14 immediately when the speed sensor triggers an alarm. The module operates reliably from 0°C to +50°C ambient temperature. Clean the fan inlet filter every three months for optimal performance.

Physical Dimensions and Power Requirements

The ABB Bailey IPFAN14 weighs 0.85 kilograms for secure mounting. Its height measures 267mm, width 52mm, and depth 185mm. This fan module consumes only 6.5 watts of power at full speed. The green RUN LED illuminates when the fan receives power. You cannot repair this module due to its sealed construction. Simply replace the entire IPFAN14 unit when it fails.
