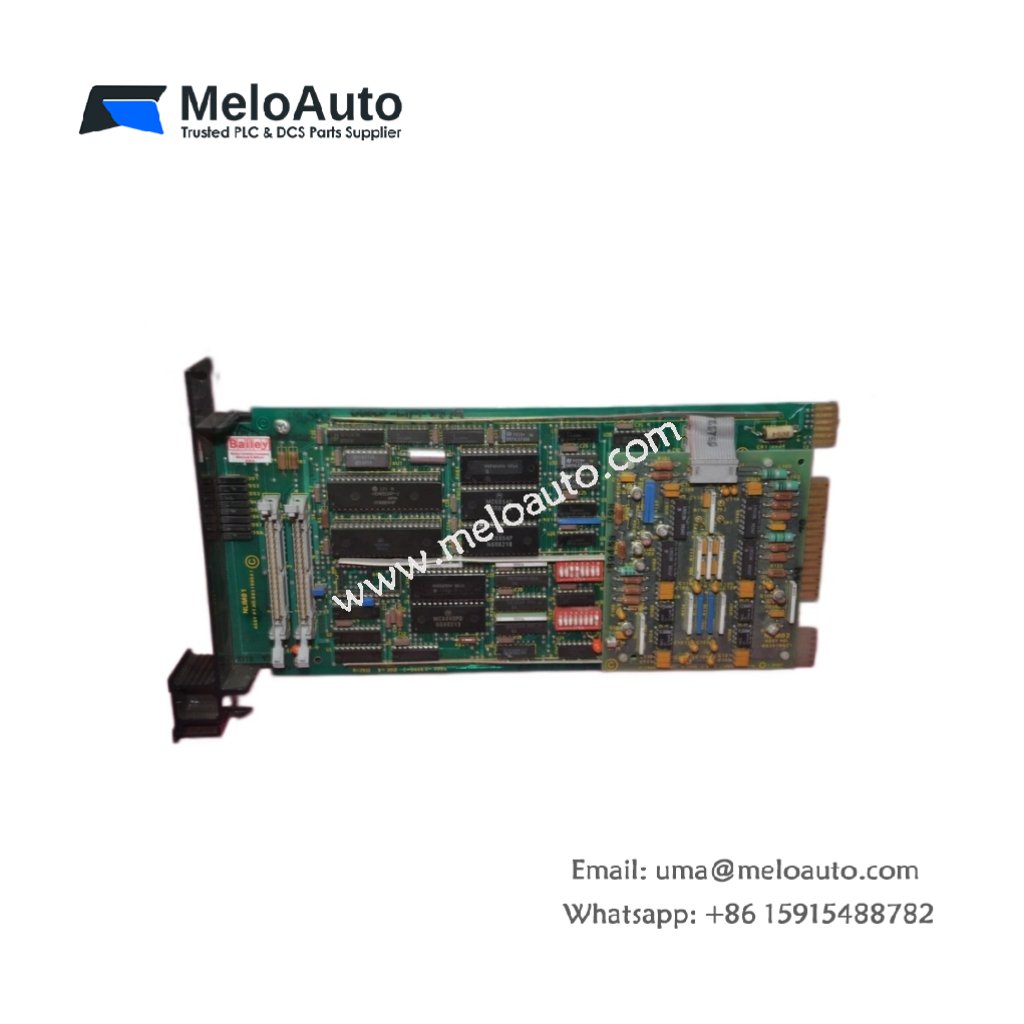

ABB Bailey NLIM01 Loop Interface Module

Signal Conditioning and Loop Isolation

The ABB Bailey NLIM01 provides a dedicated interface between field loops and control systems. This module conditions analog signals from field transmitters and sensors. It electrically isolates the control system from hazardous loop voltages. Therefore, the module protects sensitive electronics from surges and ground loops.

Technical Specifications

Parameter	Specification
Model	NLIM01
Category	Loop Interface Module
Height	267 mm
Width	35 mm
Depth	185 mm
Weight	0.55 kg
Input Signal Range	4-20 mA (or 0-20 mA selectable)
Output Signal Range	4-20 mA (active or passive)
Loop Voltage	24 V DC nominal (18-30 V DC)
Isolation Voltage	1500 V AC (field to system)
Accuracy	±0.1% of span
Connector Type	1 x 8-pin screw terminal block
Status Indicators	1 x green PWR LED, 1 x red FLT LED
Internal Components	1 signal isolator, 1 DC-DC converter, 1 terminal block
Energy Storage	100 µF filtering capacitor

Internal Architecture and Signal Path

The NLIM01 contains three primary internal components for signal processing. One signal isolator breaks the electrical path between field and system. One DC-DC converter generates isolated power for the field loop. A small 100 µF capacitor filters high-frequency noise from the input signal. The ABB Bailey NLIM01 also includes an 8-pin screw terminal block for field wiring. Two status LEDs provide immediate visual feedback about module health.

Loop Configuration and Wiring Guidelines

Connect field transmitters to the top four terminals of the NLIM01. Wire the control system input to the bottom four terminals accordingly. Select active or passive output mode using the internal jumper setting. Apply 24 V DC power to the loop from an external supply. Use twisted-pair shielded cable for runs longer than 30 meters. The module provides 1500 V AC isolation for operator safety.

Physical Dimensions and Installation Requirements

The ABB Bailey NLIM01 weighs only 0.55 kilograms for straightforward mounting. Its height measures 267mm, width 35mm, and depth 185mm. This loop interface module consumes 2.5 watts of power from the backplane. Install the NLIM01 in any standard Bailey rack slot. The module operates reliably from -20°C to +60°C ambient temperature. The green PWR LED lights up when the backplane supplies correct voltage.
