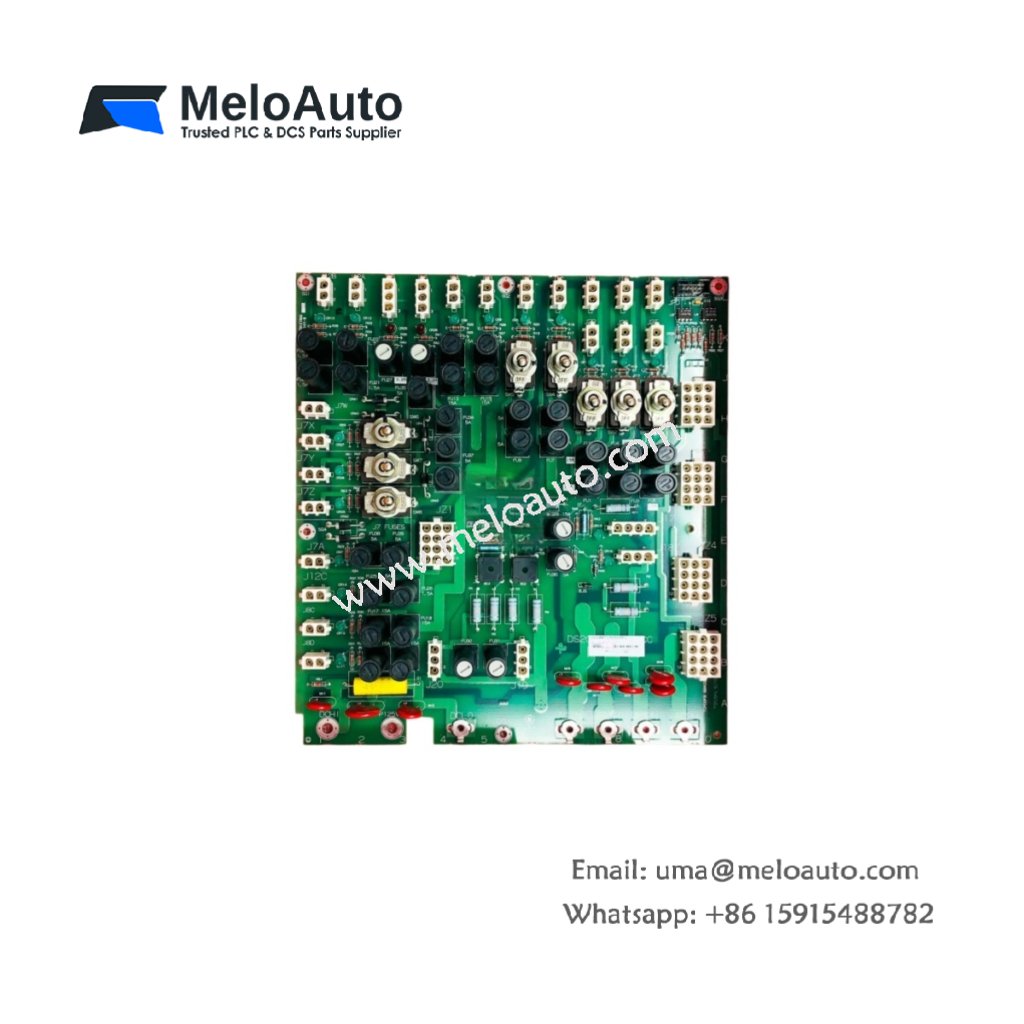

GE DS200TCPDG2B DS200TCPDG2BEC Distribution Board

This GE DS200TCPDG2B DS200TCPDG2BEC Distribution Board distributes power and signals across multiple Mark V rack slots. The board receives raw DC input and routes it to various backplane connectors. You will find this component in many GE turbine control systems globally. The DS200TCPDG2BEC variant includes an enhanced coating for chemical resistance.

Technical Specifications

Parameter	Specification
Full Model	GE DS200TCPDG2B DS200TCPDG2BEC Distribution Board
Category	Distribution Board
Input Voltage	125 VDC or 250 VDC (Field Selectable)
Distribution Paths	12 Independent Power Rails
Signal Lines	24 Low-Voltage Signal Traces
Maximum Current	15 A per Rail, 30 A Total
Fuse Protection	12 x 5A Fast-Blow Fuses
Dimensions (H x W)	280 mm x 180 mm
Weight	Approximately 1.10 kg
Connectors	2 x Power Input Stabs, 6 x Backplane Edge Connectors
Component Count	78 Discrete Components
Energy Storage	4 x 100 µF Decoupling Capacitors

Power Distribution and Protection Features

The GE DS200TCPDG2B DS200TCPDG2BEC Distribution Board routes power to six adjacent rack positions. Each output rail has an individual fuse for short circuit protection. The board also distributes low-voltage signals between cards without active components. Furthermore, it includes status monitoring for each fuse position. Consequently, the main controller knows exactly which rail has failed.

Installation and Connection Steps

Mount this GE DS200TCPDG2B DS200TCPDG2BEC Distribution Board in the designated distribution slot of any Mark V rack. First, connect the external DC supply to the two power input stabs. After that, slide the board fully into the backplane connectors. Then, verify each fuse matches the required rating for your application. Finally, check that all six edge connectors align properly before powering up.

Energy Discharge and Safety Notice

This GE DS200TCPDG2B DS200TCPDG2BEC Distribution Board stores minimal energy in its decoupling capacitors. However, you must wait 30 seconds after power removal before handling. The four capacitors discharge through internal resistors during this time. Never replace fuses while the system power remains active.

Status Indication and Diagnostics

A green LED indicates the presence of valid input power on the board. Twelve red LEDs illuminate individually when their corresponding fuse opens. These indicators help technicians locate failed distribution paths instantly without any test equipment.
