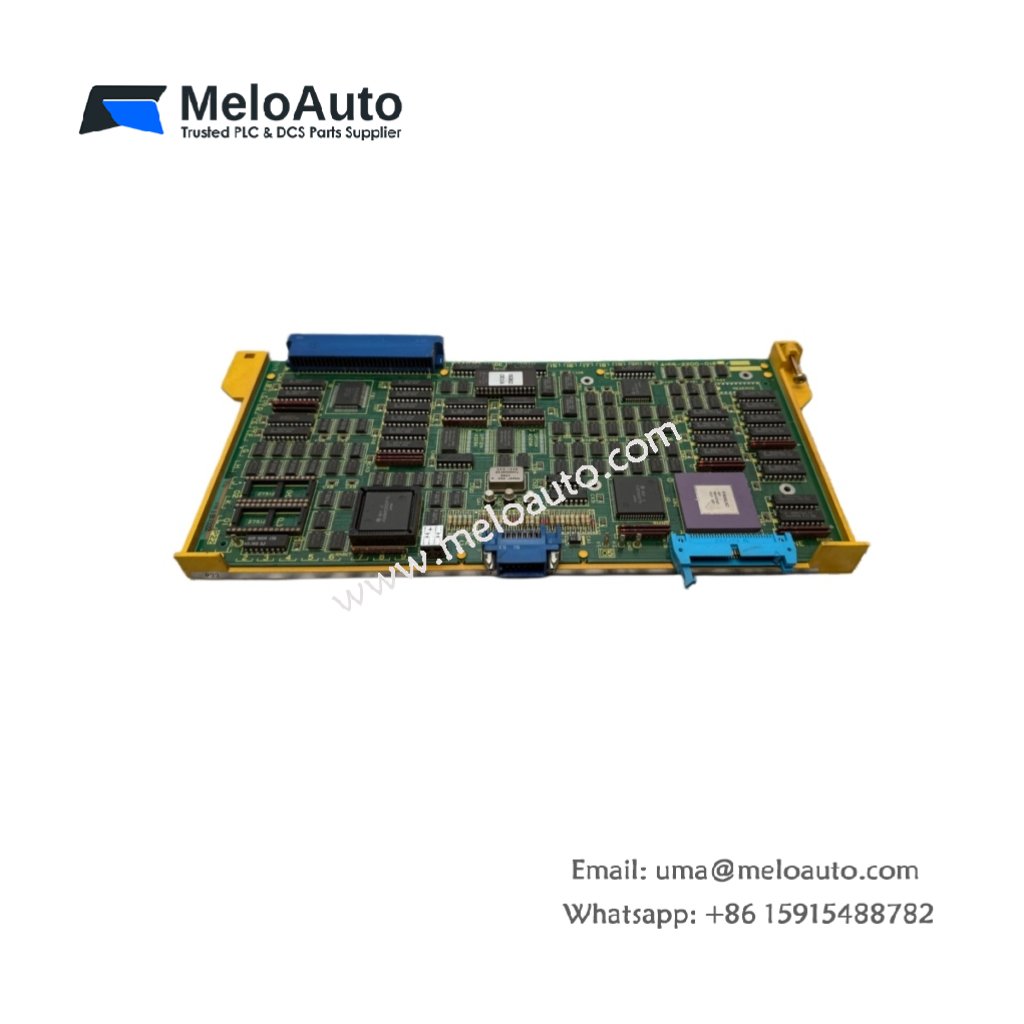

GE A16B-1211-0750/02A | I/O PCB

This I/O PCB connects CNC controllers to machine sensors and actuators. It provides both digital input and output channels for machine control. The unit mounts inside the CNC cabinet as a remote I/O interface.

Technical specifications

Parameter	Specification
Brand	GE Fanuc
Model	GE A16B-1211-0750/02A
Category	I/O PCB (Input/Output Board)
PCB Layer Count	4 layers
Input Channels	16 (twenty-four) digital inputs
Input Voltage	24V DC nominal (20V to 30V)
Input Current	6 mA per channel
Output Channels	16 (twenty-four) digital outputs
Output Type	Open collector transistor
Output Voltage	24V DC maximum
Output Current	0.1 A (100 mA) per channel
Optical Isolation	Yes (inputs and outputs)
Communication	CNC bus (backplane interface)
Power Supply	5V DC from backplane
Current Consumption	300 mA from +5V
Number of Components	1 PCB, 32 optocouplers, 32 resistors, 4 connectors
Status Indicators	32 x LEDs (one per channel)
Dimensions (L x W)	Approx. 20 cm x 15 cm
Thickness	Approx. 1.6 mm
Weight	Approx. 0.35 kg
Energy Storage	None (no battery or capacitor)
Operating Temperature	0°C to 55°C

Detailed Technical Analysis

This I/O PCB provides sixteen 24V DC input channels for sensor signals. It also offers sixteen transistor outputs for driving small actuators. Each input and output features optical isolation for noise immunity. The board connects to the CNC controller through the backplane bus.

Now let us examine its input characteristics. This module draws only 6 mA per activated input channel. A logical “1” signal requires between 15 and 30 volts DC. The GE A16B-1211-0750/02A filters input signals to prevent false triggering. Each input has a dedicated LED for status indication.

The output channels use open-collector transistors switching to ground. Each output handles up to 100 mA of load current. The GE A16B-1211-0750/02A draws 300 milliamps from the 5V backplane supply. The board contains no batteries or capacitors for energy storage. Thirty-two LEDs provide clear visual status for every channel.

Installation and Connection Guidelines

You mount this board into a designated slot in the CNC rack. Connect field wiring to the two 20-pin header connectors. Use shielded cable for input wiring to reduce electrical noise. The GE A16B-1211-0750/02A automatically maps I/O addresses to the system.

For output loads exceeding 100 mA, use external relays. The open-collector outputs cannot drive high-current devices directly. Ensure proper grounding for the 24V DC field supply. The GE A16B-1211-0750/02A provides no field power on its own.

Practical Applications

Engineers use this I/O board for CNC machine interface tasks. For example, it reads limit switches and pushbuttons from the machine. The GE A16B-1211-0750/02A also controls coolant valves and indicator lights. Its 32 total channels handle most medium-sized machine interfaces.

Summary

To conclude, this I/O PCB offers 16 inputs and 16 outputs for CNC systems. It weighs 0.35 kilograms and requires 5V backplane power. Choose GE A16B-1211-0750/02A for reliable machine I/O interface replacement.
