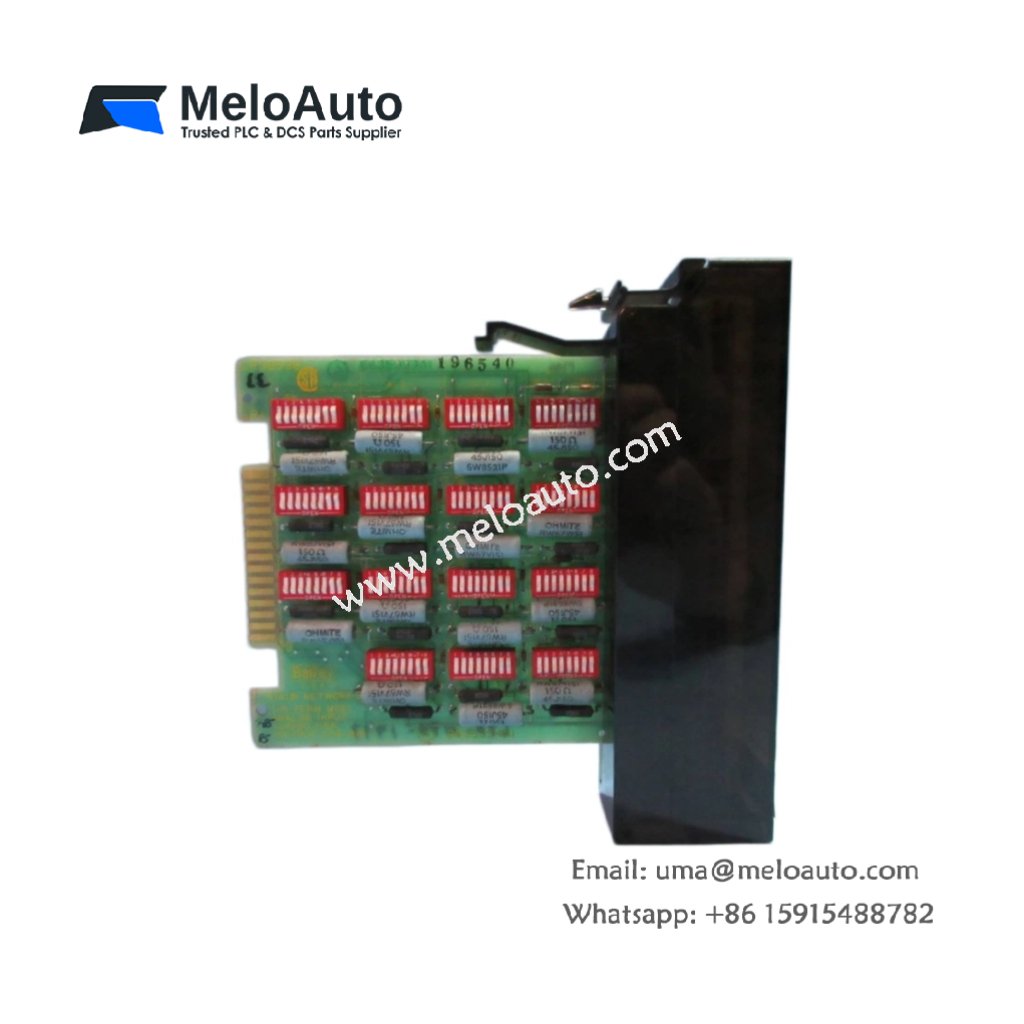

ABB Bailey NIAI01 I/O Term Analog Input Module

Signal Acquisition and Field Connection

The ABB Bailey NIAI01 provides a dedicated termination interface for analog input signals. This module connects field transmitters directly to the Bailey I/O system. It conditions 4-20 mA loop currents for accurate measurement.

Technical Specifications

Internal Architecture and Signal Path

The NIAI01 contains 16 precision 250 Ω resistors for current-to-voltage conversion. One terminal PCB holds all resistors and field wiring connections. Two 20-pin ribbon cable headers link the unit to the analog input module. Two 16-pin screw terminal blocks accept field transmitter wiring. The ABB Bailey NIAI01 uses no active electronics or power supply. This passive design generates zero heat and requires no configuration.

Field Wiring and Installation Guidelines

Connect each 4-20 mA transmitter to its dedicated terminal pair. Wire the positive lead to the “+” terminal on the NIAI01. Connect the negative lead to the “-” terminal for each channel. Apply 24 V DC loop power from an external supply source. Use twisted-pair shielded cable for all field signal runs. The NIAI01 creates a 1-5 V DC drop across each 250 Ω resistor. The analog input module reads this voltage for process measurement.

Termination Function and System Integration

This termination unit acts as the physical interface between field and system. Mount the NIAI01 on the same DIN rail as the I/O module. Connect the ribbon cables from the termination unit to the analog input module. The ABB Bailey NIAI01 matches the impedance requirements of Bailey I/O systems. You can place the termination unit up to 3 meters from the I/O module. This distance flexibility simplifies cabinet wiring layouts significantly.

Physical Dimensions and Mounting Requirements

The ABB Bailey NIAI01 weighs only 0.32 kilograms for straightforward mounting. Its height measures 130mm, width 45mm, and depth 105mm. Install this termination unit on standard 35 mm DIN rails. Place the NIAI01 close to the field cable entry point. The unit operates reliably from -20°C to +70°C ambient temperature. This passive device contains no moving parts for maximum reliability.

Energy Storage and Maintenance Status

The NIAI01 stores no electrical energy internally. It includes zero batteries or capacitors of any kind. Hence, this termination unit requires no scheduled maintenance whatsoever. You will never replace batteries or perform discharge procedures. The precision resistors will last indefinitely under normal operating conditions.
