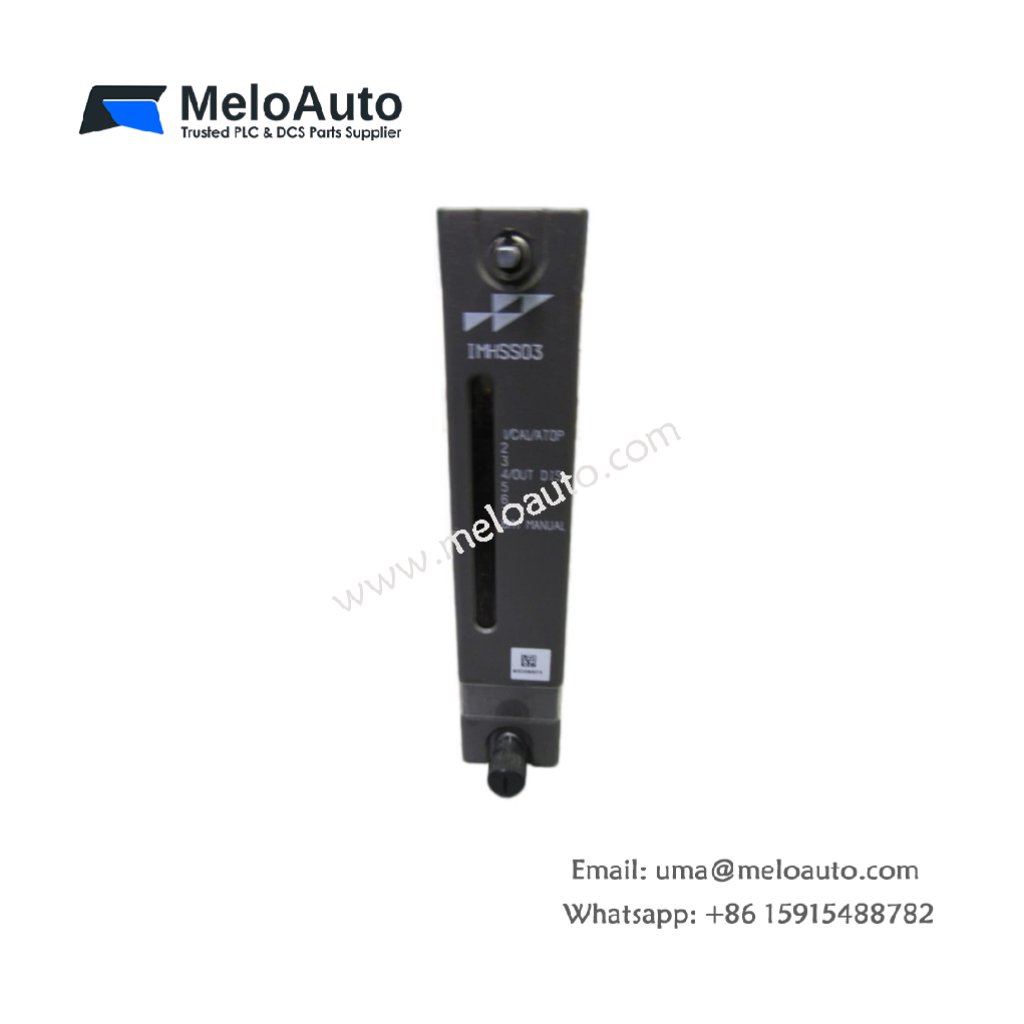

ABB Bailey IMHSS03 Hydraulic Servo Module

Precision Control for Hydraulic Actuators

The ABB Bailey IMHSS03 provides closed-loop control for hydraulic servo systems. This module manages position, velocity, and force control applications. It drives proportional solenoid valves with high precision.

Technical Specifications

Parameter	Specification
Model	IMHSS03
Category	Hydraulic Servo Module
Height	310 mm
Width	45 mm
Depth	250 mm
Weight	1.35 kg
Analog Inputs	4 x differential (LVDT, strain gauge, 4-20 mA)
Analog Outputs	2 x ±10 V or 4-20 mA (servo valve drive)
Digital Inputs	4 x 24 V DC (limit switches, enable signals)
Digital Outputs	4 x relay (status, alarm, ready)
Servo Output Current	±100 mA continuous (valve coil drive)
PWM Frequency	5 kHz (adjustable from 1-10 kHz)
Control Loop Update	250 microseconds
Resolution	16 bits (input and output)
Connector Type	2 x 20-pin screw terminal blocks
Status Indicators	6 x LEDs (PWR, RUN, FLT, LIM1, LIM2, VALVE)
Internal Components	1 DSP processor, 2 PWM drivers, 1 signal conditioner, 1 battery
Energy Storage	1200 mAh lithium battery (RAM backup)

Processing Architecture and Control Algorithms

The IMHSS03 uses a dedicated DSP processor for hydraulic servo control. This processor executes PID algorithms with feedforward compensation. The module updates control loops every 250 microseconds for rapid response. Four analog inputs accept LVDT position sensors or pressure transducers. Two analog outputs drive proportional solenoid valves with ±100 mA current. The ABB Bailey IMHSS03 provides 16-bit resolution for precise positioning.

Valve Drive and PWM Generation

This hydraulic servo module generates PWM signals for valve coil control. The output frequency is adjustable from 1 kHz to 10 kHz. The IMHSS03 delivers ±100 mA continuous current to servo valve solenoids. It includes dither signal generation for reducing valve hysteresis. Six status LEDs show power, running, fault, limit, and valve status. The red FLT LED indicates a valve coil short circuit or open circuit.

Input Signal Conditioning and Feedback

The ABB Bailey IMHSS03 conditions LVDT signals for position feedback. It also accepts 4-20 mA from pressure or flow transmitters. Four digital inputs accept 24 V DC signals from limit switches. You can configure each input as normally open or normally closed. The module compares actual position against the setpoint continuously. It adjusts the valve output to minimize the error signal.

Physical Dimensions and Installation Guidelines

The ABB Bailey IMHSS03 weighs 1.35 kilograms for secure rack mounting. Its height measures 310mm, width 45mm, and depth 250mm. This servo module consumes 9.5 watts from the backplane supply. Install the IMHSS03 in a dedicated slot away from high-voltage devices. The module operates reliably from 0°C to +55°C ambient temperature.

Energy Storage and Battery Maintenance

The IMHSS03 uses a 1200 mAh lithium battery for parameter backup. This battery retains tuning constants and configuration data during power loss. The battery lasts approximately five years under normal conditions. Replace the battery every four years for preventive maintenance. The red FLT LED flashes when the battery voltage drops too low. Always keep the module powered on during battery replacement.
