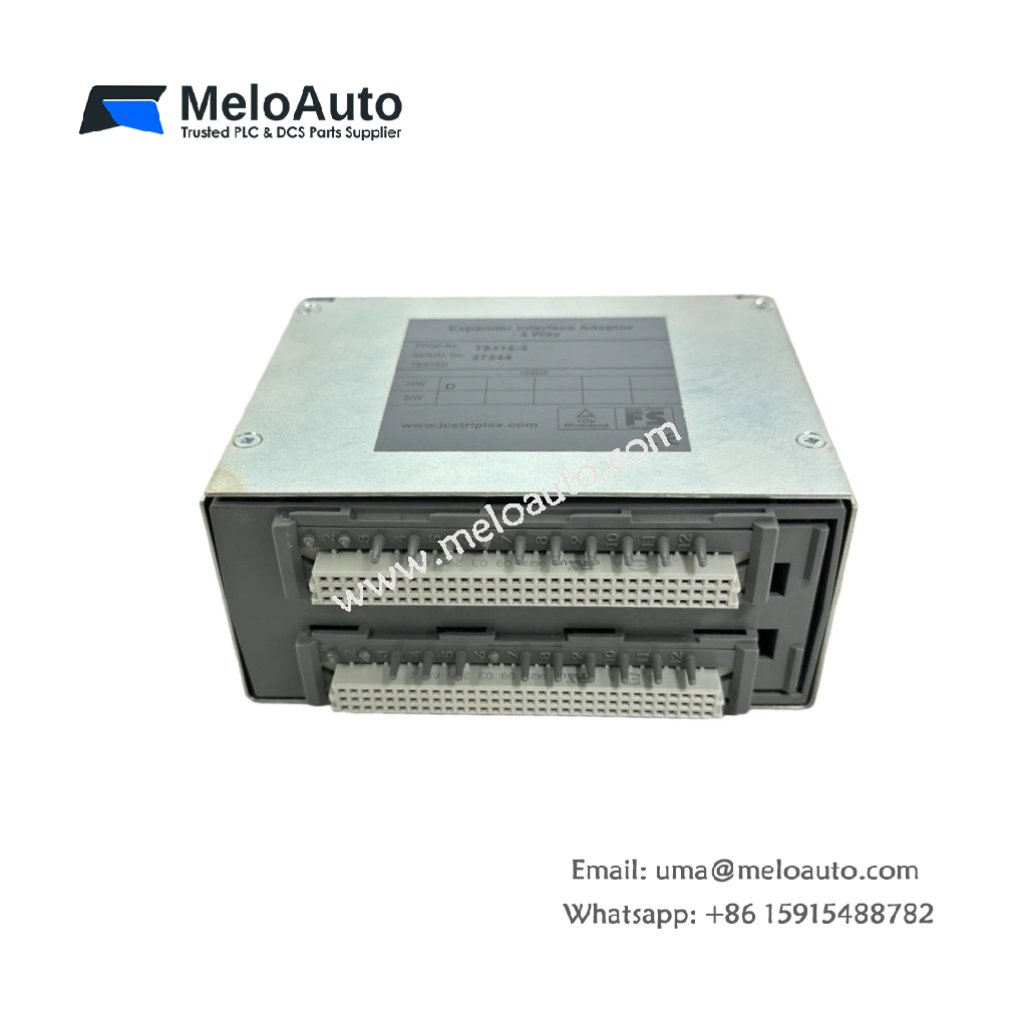

ICS Triplex T8312-4 Trusted TMR Expander Interface Adapter Unit

Overview

The ICS Triplex T8312-4 Trusted TMR Expander Interface Adapter Unit connects the Controller and Expander Chassis in Trusted TMR systems. It guarantees high performance, reliability, and safety in critical applications. Designed with either four or seven 12-pin ODU connectors, this unit integrates seamlessly with Trusted Expander Interface Modules, ensuring efficient communication between system components, even in harsh industrial environments.

Key Features

High Reliability: The T8312-4 boasts a failure rate of less than 10 FIT, minimizing system downtime. This feature is essential in safety-critical environments.
Superior Performance: By providing low latency and high throughput, the unit enables real-time responses to critical events. This capability is crucial for maintaining system integrity.
Comprehensive Safety Features: The unit includes overvoltage, overcurrent, and short-circuit protection, which prevents potential damage to system components.
Conformal Coating: The coating safeguards the unit from dust, moisture, and environmental contaminants, thus extending its lifespan.
Easy Installation: The design allows for straightforward installation and configuration, effectively reducing the risk of errors.
LED Indicators: LED lights display the unit’s operational status, such as power, signal presence, and fault conditions, making troubleshooting efficient.

Technical Specifications

Parameter	Value
Model Number	T8312-4
Manufacturer	ICS Triplex
Function	Trusted TMR Expander Interface Adapter
Connectors	Four or Seven 12-pin ODU connectors
PCB and Connector	96-way C-type
Power Supply	24 V DC
Power Consumption	6 W
Operating Temperature	-40°C to +70°C (-40°F to +158°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Humidity Range	5% to 95%
Communication Interface	Ethernet
Dimensions	31.8 mm x 168 mm x 147 mm
Weight	0.6 kg (approx.)

Applications

The ICS Triplex T8312-4 excels in industries where system reliability and real-time communication are critical. This makes it suitable for a wide range of applications, such as:

Oil & Gas: Efficiently interfaces safety systems in offshore rigs and refineries.
Nuclear Power: Facilitates reliable connections for monitoring and control in nuclear plants.
Chemical Processing: Ensures safe operation of automated systems in hazardous environments.
Transportation and Rail: Enhances control systems for the transportation sector, ensuring safety and efficiency.
