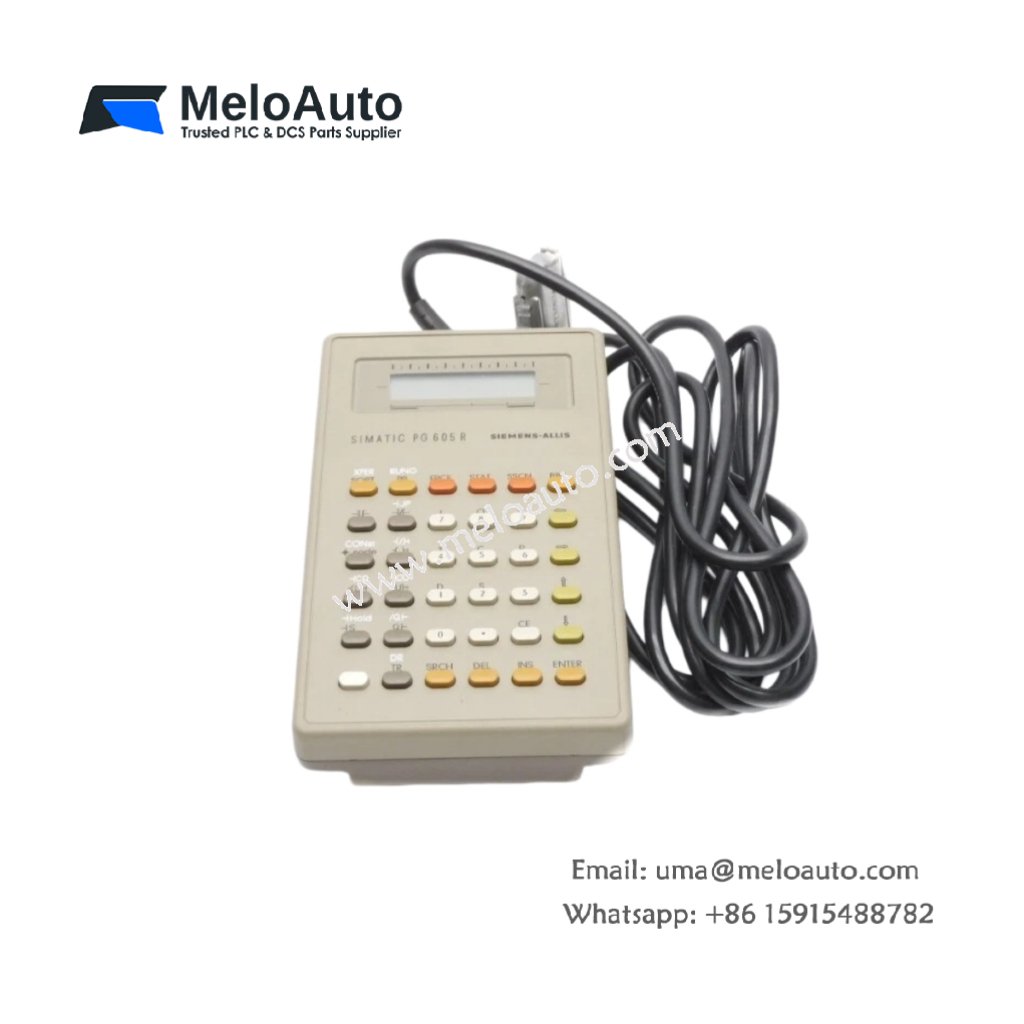

Siemens 6ES5605-0RU11 – Operator Keypad for SIMATIC S5 Control Systems

The Siemens 6ES5605-0RU11 provides manual control and data entry for automation processes. This keypad measures 220 mm in width and 130 mm in height. It has a depth of 35 mm, so it fits standard panel cutouts easily. The unit weighs 0.55 kg, making installation secure and straightforward.

Key Layout and Button Specifications

This operator keypad features 24 membrane keys arranged in a logical matrix layout. The Siemens 6ES5605-0RU11 includes numeric keys from 0 to 9 for data entry. It also provides function keys F1 through F12 for programmable machine commands. Each key has a rated actuation force of 1.8 newtons for comfortable operation. The membrane construction protects against dust and liquid ingress effectively.

Internal Architecture and Component Layout

The keypad contains two separate circuit boards inside its sealed plastic housing. One board handles key scanning and debouncing, while the other manages communication. The Siemens 6ES5605-0RU11 includes a dedicated 8-bit microcontroller for key encoding. A 25-pin D-sub connector interfaces with the SIMATIC S5 controller directly. The module stores 33 µF of capacitance for power supply filtering only.

Electrical Specifications and Display Features

You must supply 24V DC power to the dedicated pins on the D-sub connector. The Siemens 6ES5605-0RU11 draws 80 mA at 24V DC during normal operation. Therefore, total power consumption reaches 1.92 watts for the entire keypad. The unit includes a 2-line by 16-character LCD for operator feedback. This display uses LED backlighting for visibility in low-light conditions.

Environmental Tolerance and Mounting Details

You can mount this keypad flush into a control panel door easily. The device operates reliably from 0°C to 50°C ambient temperature. It tolerates humidity levels up to 90 percent without any condensation issues. The Siemens 6ES5605-0RU11 has an IP54 rating on the front panel for splash resistance. The rear body carries an IP20 rating for internal cabinet protection.

Below is a complete summary of its technical specifications.

The Siemens 6ES5605-0RU11 replaces older keypad units in SIMATIC S5 workstations. You do not need any special adapters or additional configuration software. This unit also supports parameter entry for machine setup and monitoring functions. Consequently, it provides reliable operator interface for industrial control applications.
