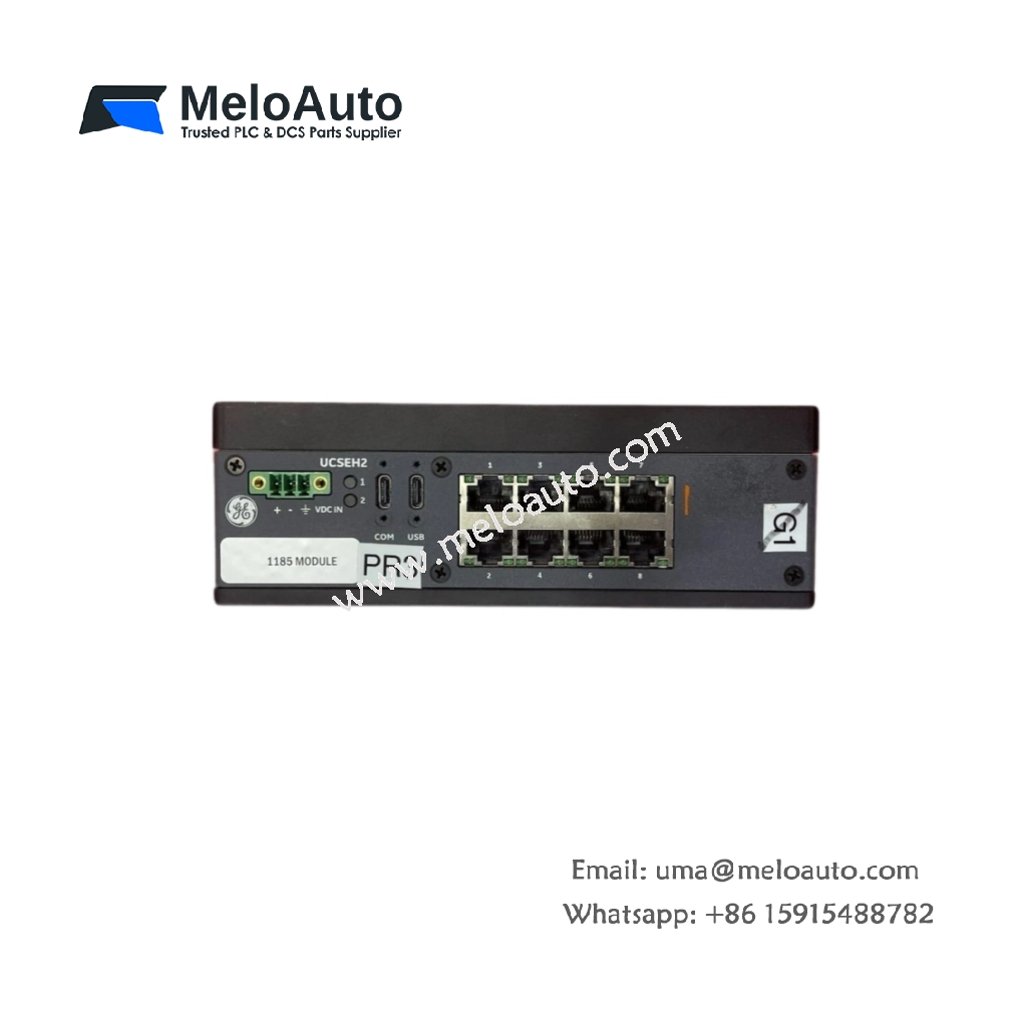

The GE IS420UCSEH2B serves as a high-performance dual-core controller within the Mark VIe platform. This unit provides expanded memory capacity for data-intensive automation applications. Its robust processing architecture handles complex turbine control and monitoring simultaneously. We engineered this module for demanding power generation environments requiring substantial computational resources.
Core Architecture and Processing Power
This dual-core controller distributes workloads intelligently across its two processing units. The GE IS420UCSEH2B runs the QNX Neutrino RTOS with full SMP capabilities. Its enhanced memory subsystem supports large-scale control strategies and comprehensive data logging. The module includes industrial-grade flash storage for reliable program retention. Furthermore, continuous self-diagnostics monitor hardware health and system performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Processor | Intel dual-core (2 x cores) |
| Clock Speed | 1.0 GHz per core |
| Operating System | QNX Neutrino 6.5 (SMP-enabled) |
| System Memory | 2 GB DDR3 SDRAM |
| Flash Storage | 4 GB CompactFlash (industrial grade) |
| User Program Memory | 2 GB |
| Ethernet Ports | 5 total (4 x IONet, 1 x management) |
| IONet Speed | 100 Mbps full-duplex |
| Serial Console | 1 x RS-232 with RJ-45 connector |
| USB Host Ports | 2 x USB 2.0 |
| Maximum I/O Packs | 128 per controller |
| Minimum Scan Rate | 1 ms |
| Real-Time Clock | Battery-backed with ±5 ppm accuracy |
| Clock Battery | 3.6 V lithium, 5 years typical life |
| Status LEDs | Power, run, fault, per-core activity |
| Power Supply | 24 V DC nominal (18–32 V DC range) |
| Power Consumption | 38 W peak, 26 W typical |
| Inrush Current | 18 A maximum for 10 ms |
| Weight | 1.38 kg (approximately 3.04 lbs) |
| Dimensions (W x H x D) | 63.5 mm x 273 mm x 193 mm |
| Mounting Type | DIN rail with 1.5 mm steel bracket |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration | 2 g at 10–500 Hz |
| Shock | 15 g for 11 ms |
| Protection Class | IP20 when mounted |
Key Functional Benefits
The GE IS420UCSEH2B offers exceptional processing power with substantial memory resources. Its dual-core architecture enables dedicated cores for control and safety functions. Consequently, this module delivers superior performance for safety-critical applications. The controller supports extensive data logging for predictive maintenance programs. Moreover, its 1 ms scan rate handles the most demanding real-time control loops effectively.
Installation and System Connectivity
You must mount the GE IS420UCSEH2B on a standard DIN rail within an approved enclosure. The controller interfaces with I/O packs through the high-speed IONet redundant network. Proper cable routing preserves signal integrity and minimizes electromagnetic interference. Additionally, you can access system configuration via the management Ethernet port. This module integrates fully with GE’s Mark VIe safety and control platform.
Environmental Durability and Standards
The GE IS420UCSEH2B complies with CE, UL 61010-1, and RoHS directives. Its conformal-coated PCB resists moisture, dust, and corrosive industrial gases. The module maintains full specification across extreme temperature variations. Furthermore, the controller achieves an MTBF exceeding 190,000 hours. This robust engineering ensures dependable performance in critical power generation facilities.
