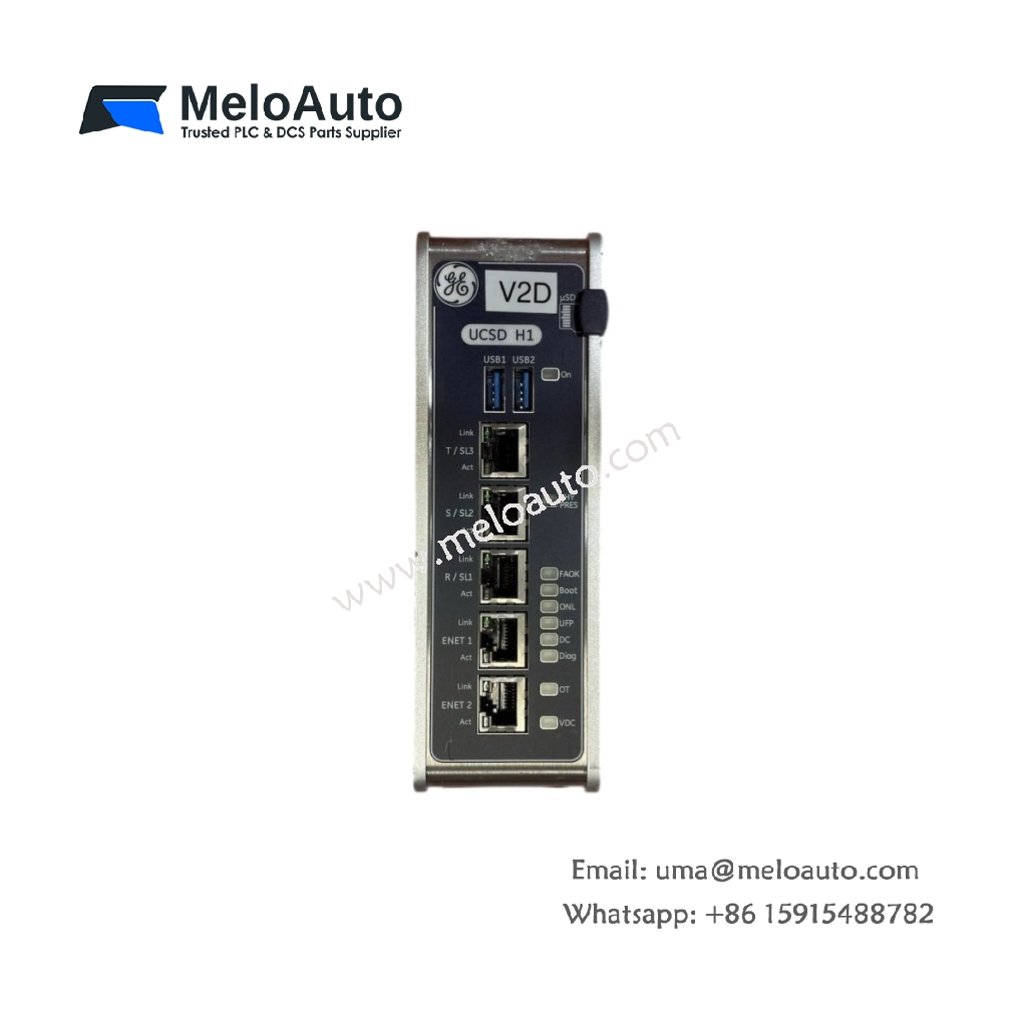

GE IS420UCSDH1A Quad-Core Controller

Product Overview

The GE IS420UCSDH1A operates as a high-performance quad-core controller within the Mark VIe platform. This unit delivers exceptional processing power for demanding turbine control and protection applications. Its multi-core architecture handles complex computations and multiple tasks simultaneously. We engineered this module for advanced automation requiring substantial computational throughput.

Processing Architecture and Parallel Performance

This quad-core controller leverages its multiple processor cores for superior multitasking capabilities. The GE IS420UCSDH1A runs the QNX Neutrino RTOS to distribute workloads efficiently across all cores. Its symmetrical multiprocessing design accelerates both control loops and data analysis tasks. The module includes generous memory resources to support sophisticated application programs. Furthermore, built-in diagnostics monitor each core’s operational status continuously.

Technical Specifications

Parameter	Specification
Processor	Intel quad-core (4 x cores)
Clock Speed	1.2 GHz per core
Operating System	QNX Neutrino 6.5 (SMP-enabled)
System Memory	2 GB DDR3 SDRAM
Flash Storage	4 GB CompactFlash (industrial grade)
User Program Memory	2 GB
Ethernet Ports	5 total (4 x IONet, 1 x management)
IONet Speed	100 Mbps full-duplex
Serial Console	1 x RS-232 (RJ-45)
USB Host Ports	2 x USB 2.0
Maximum I/O Packs	128 per controller
Minimum Scan Rate	1 ms
Task Execution	True parallel processing across cores
Real-Time Clock	Battery-backed with ±5 ppm accuracy
Clock Battery	3.6 V lithium, 5 years typical
Status LEDs	Power, run, fault, core activity per core
Power Supply	24 V DC nominal (18–32 V DC)
Power Consumption	45 W peak, 32 W typical
Inrush Current	20 A maximum for 10 ms
Weight	1.45 kg (approximately 3.20 lbs)
Dimensions (W x H x D)	63.5 mm x 273 mm x 193 mm
Mounting	DIN rail with 1.5 mm steel bracket
Operating Temperature	-30°C to +65°C
Storage Temperature	-40°C to +85°C
Relative Humidity	5% to 95% non-condensing
Vibration	2 g at 10–500 Hz
Shock	15 g for 11 ms
Protection Class	IP20 when installed

Key Functional Benefits

The GE IS420UCSDH1A delivers unprecedented processing power for complex control strategies. Its quad-core design enables simultaneous execution of multiple high-speed tasks. Consequently, this controller handles advanced algorithms without compromising loop performance. The module supports predictive analytics and condition monitoring applications. Moreover, its 1 ms scan rate accommodates the most demanding real-time requirements.

Installation and System Integration

You must mount the GE IS420UCSDH1A on a standard DIN rail within an appropriate enclosure. The controller communicates with I/O packs through the redundant IONet high-speed network. Proper thermal management ensures optimal performance under full load conditions. Additionally, you can configure the system via the management Ethernet port. This module integrates seamlessly into GE’s Mark VIe architecture for high-end applications.

Environmental Durability and Standards Compliance

The GE IS420UCSDH1A complies with CE, UL 61010-1, and RoHS directives. Its conformal-coated PCB protects against moisture and airborne contamination. The module delivers full-rated performance across extreme temperature ranges. Furthermore, the controller’s MTBF exceeds 180,000 hours under normal operating conditions. This robust construction ensures reliability in critical power generation applications.
