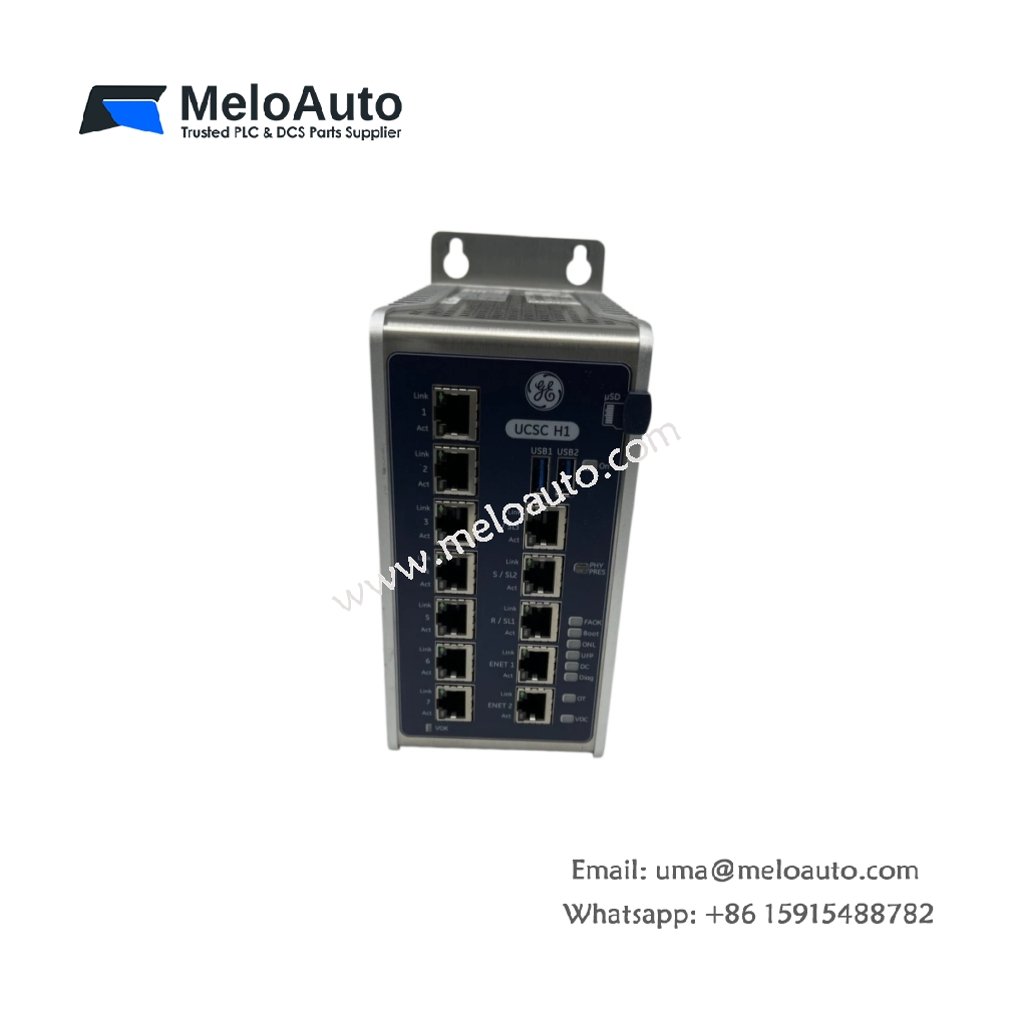

GE IS420UCSCH2B Controller Module

Product Overview

The GE IS420UCSCH2B functions as a high-capacity single module controller for the Mark VIe system. This unit handles complex turbine sequencing and data acquisition tasks efficiently. Its generous memory allocation supports extensive application programs and historical trending. We designed this controller for demanding power generation and industrial process applications.

Core Architecture and Processing Power

This single module integrates a high-performance processor with substantial memory resources. The GE IS420UCSCH2B runs the QNX Neutrino RTOS for deterministic multitasking performance. Its large storage capacity accommodates extensive control logic and data logging requirements. The module supports redundant configurations for enhanced system availability. Furthermore, embedded diagnostics continuously validate hardware functionality and communication integrity.

Technical Specifications

Parameter	Specification
Processor	600 MHz Intel EP80579
Operating System	QNX Neutrino 6.5
System Memory	256 MB DDR2 SDRAM
Flash Storage	4 GB CompactFlash (industrial grade)
User Program Memory	2 GB
Ethernet Ports	5 total (4 x IONet, 1 x management)
IONet Speed	100 Mbps full-duplex
Serial Console	1 x RS-232 with RJ-45 connector
USB Host Ports	2 x USB 2.0
Maximum I/O Packs	64 per controller
Minimum Scan Rate	5 ms
Real-Time Clock Accuracy	±5 ppm with battery backup
Clock Battery	3.6 V lithium, 5 years typical
Status LEDs	Power, run, fault, Ethernet link/act
Power Supply	24 V DC nominal (18–32 V DC)
Power Consumption	29 W peak, 17.5 W typical
Inrush Current	15 A maximum for 10 ms
Weight	1.28 kg (approximately 2.82 lbs)
Dimensions (W x H x D)	63.5 mm x 273 mm x 193 mm
Mounting	DIN rail with 1.5 mm steel bracket
Operating Temperature	-30°C to +65°C
Storage Temperature	-40°C to +85°C
Relative Humidity	5% to 95% non-condensing
Vibration	2 g at 10–500 Hz
Shock	15 g for 11 ms
Protection Class	IP20 when installed

Key Functional Benefits

The GE IS420UCSCH2B provides exceptional storage capacity for complex control strategies. Its fanless design eliminates moving parts and enhances long-term reliability. Consequently, this controller performs well in high-temperature environments. The module retains all program data indefinitely without an external battery. Moreover, its high-speed IONet communication ensures deterministic data exchange with field devices.

Installation and System Integration

You must install the GE IS420UCSCH2B on a DIN rail within a suitable control cabinet. The controller connects to I/O packs through the redundant IONet fiber optic network. Proper cable management preserves signal quality and reduces electromagnetic interference. Additionally, you can perform configuration and diagnostics via the management Ethernet port. This module operates exclusively within GE’s Mark VIe control platform architecture.

Environmental Standards and Reliability

The GE IS420UCSCH2B complies with CE, UL 61010-1, and RoHS requirements. Its conformal-coated circuit board withstands moisture and airborne contaminants. The module delivers full performance across extreme temperature ranges. Furthermore, the controller achieves an MTBF exceeding 200,000 hours. This robust design ensures continuous operation in critical power generation facilities.
