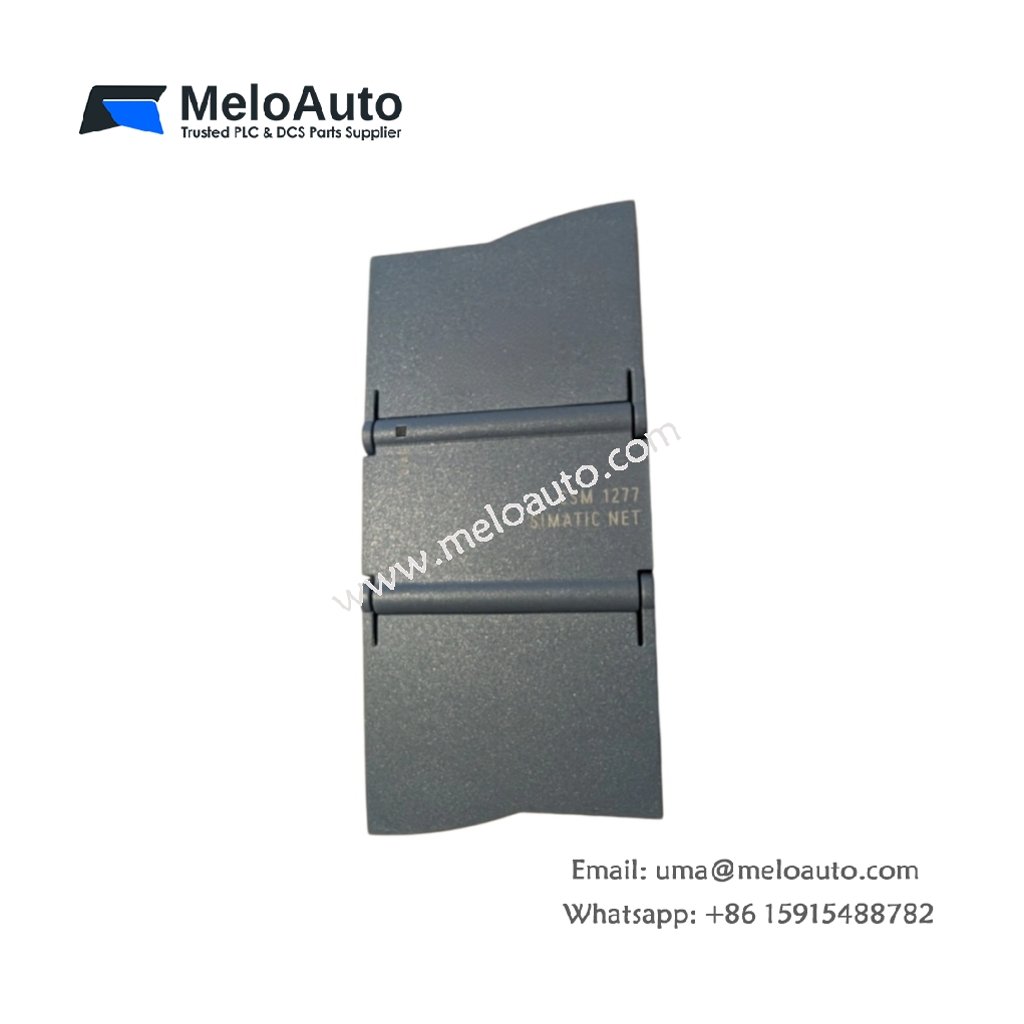

Siemens 6GK7277-1AA10-0AA0 Expansion Module

This expansion module enables AS-Interface communication for SIMATIC S7-1200 controllers. It integrates seamlessly into the Siemens SIMATIC S7-1200 programmable controller platform. The unit connects up to 62 AS-Interface slaves for distributed automation tasks. Users can integrate sensors, actuators, and field devices with minimal wiring effort.

AS-Interface Communication and Network Capabilities

This module serves as a fully functional AS-Interface master for S7-1200 systems. It supports the AS-Interface specification V3.0 for advanced communication features. The unit manages up to 62 standard slaves or 31 A/B slaves on the network. Users can achieve cycle times as low as 5 ms for time-critical applications. This performance suits high-speed packaging and material handling systems.

Network Configuration and Slave Management

The 6GK7277-1AA10-0AA0 provides powerful tools for AS-Interface network configuration. Users can automatically detect and address connected slaves through the TIA Portal. The module supports both online and offline configuration for flexible engineering. It manages slave parameter assignments and diagnostic data effectively. Users can also implement analog signal processing through the AS-Interface network. This capability enables comprehensive automation solutions with diverse field devices.

Data Exchange and System Integration

This module handles all data exchange between the AS-Interface network and the S7-1200 CPU. It maps slave I/O data directly into the CPU’s process image for seamless access. The unit ensures deterministic data transfer for consistent system performance. Users can integrate both digital and analog modules through this master. The module also supports safety-related communication for SIL 3 applications. Consequently, engineers achieve unified and reliable automation architectures.

Configuration and Diagnostic Functions

The module provides comprehensive diagnostic capabilities through the TIA Portal software. Users can access detailed information about each connected slave device. The system detects cable breaks, short circuits, and communication errors automatically. Diagnostic data appears in the PLC program for immediate operator response. Front-panel LEDs indicate power, network activity, and fault conditions clearly. These indicators enable quick troubleshooting without additional software tools.

Power Supply and Energy Efficiency

The module draws 150 mA at 24 V DC from the S7-1200 backplane. It also provides power to connected AS-Interface slaves via the network cable. The unit requires an external 30 V DC power supply for the AS-Interface network. This external supply delivers power to all connected field devices. Consequently, users can power sensors and actuators without separate wiring. The module also includes overcurrent protection for network safety.

Installation and Space-Saving Design

This expansion module mounts directly onto the S7-1200 CPU or adjacent modules. Users can snap the unit onto the DIN rail without special tools. The compact 30 mm width saves valuable control cabinet space. The module connects through the integrated backplane bus for straightforward installation. A removable terminal block simplifies AS-Interface cable connection and maintenance. The housing carries an IP20 rating for standard industrial environments.
