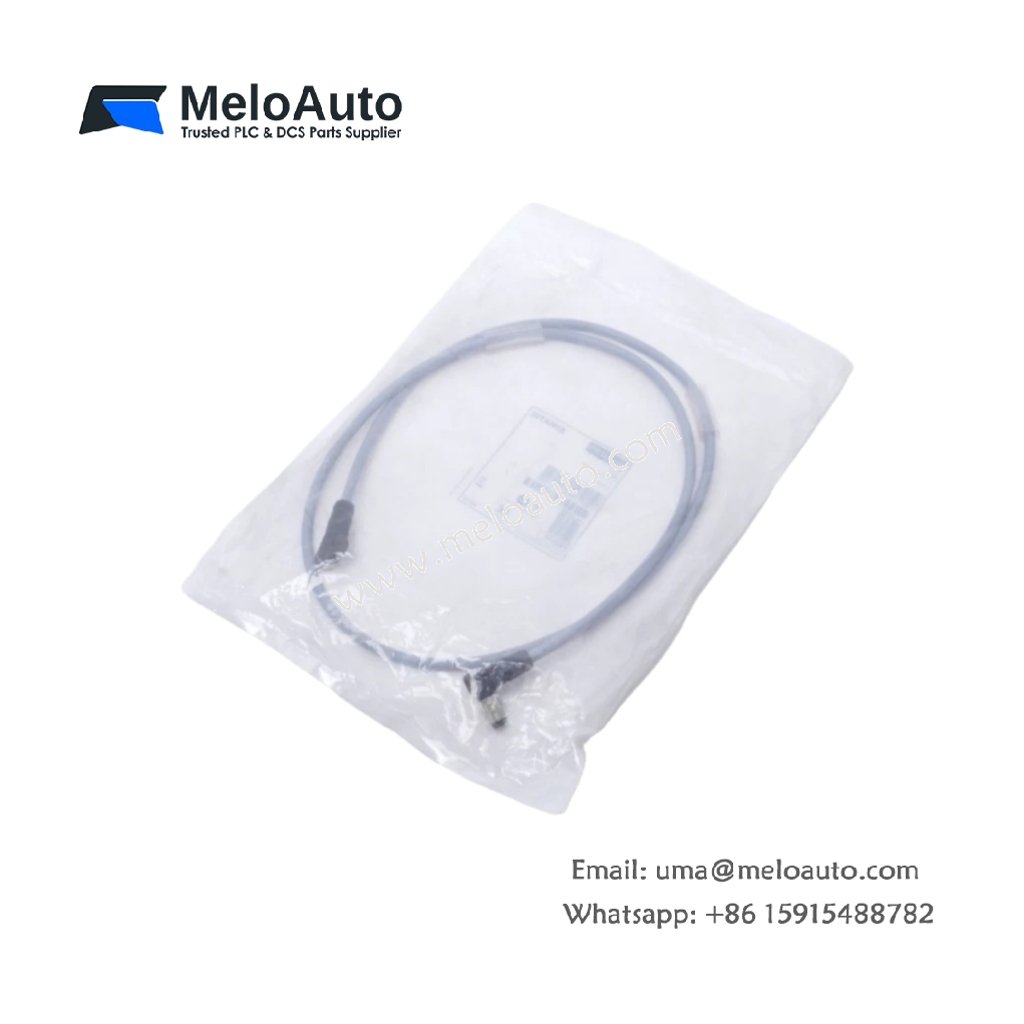

Siemens 6ES7194-2LH10-1AB0 Power Cable M8

This power cable provides secure M8 connections for distributed I/O modules. It integrates seamlessly into the Siemens SIMATIC ET 200 distributed I/O system. The unit delivers reliable power transmission from the main supply to field modules. Users can connect sensors, actuators, and I/O blocks with consistent electrical performance.

Cable Construction and Electrical Specifications

This power cable features high-quality materials for industrial applications. It includes 4-conductor construction for flexible power and signal transmission. The cable provides 24 V DC power delivery with excellent voltage stability. Each conductor features stranded copper for optimal conductivity and flexibility. Users can rely on consistent electrical performance across various operating conditions.

Connector Design and Durability

The 6ES7194-2LH10-1AB0 features a robust M8 connector with a 4-pin configuration. Users can easily connect and disconnect the cable for maintenance purposes. The connector includes gold-plated contacts for superior conductivity and corrosion resistance. The unit provides secure locking with an integrated threaded coupling. This design prevents accidental disconnection during vibration and machine operation. Additionally, the connector carries an IP67 protection rating for harsh environments.

Cable Construction and Flexibility

This power cable uses high-quality stranded copper conductors for maximum flexibility. The PVC insulation ensures reliable electrical isolation between conductors. The PUR outer jacket provides excellent resistance to oils and chemicals. Users can route the cable through cable ducts and tight spaces easily. The cable also withstands repeated flexing for dynamic applications. This flexibility suits robotic cells and moving machine parts effectively.

Compatibility with ET 200 Systems

This cable works with a wide range of ET 200 distributed I/O modules. It fits ET 200SP, ET 200eco, and ET 200pro systems. The M8 connector mates directly with compatible sensor and power ports. Users must ensure their modules support this specific cable type. The unit automatically interfaces with the modules for seamless power delivery. This compatibility simplifies inventory management and spare parts handling.

Environmental and Mechanical Durability

The cable operates reliably across a wide temperature range from -25 °C to 80 °C. It resists oils, coolants, and chemicals commonly found in industrial environments. The PUR jacket provides excellent protection against physical abrasion. The cable also withstands repeated bending and flexing without damage. Furthermore, the IP67 rating protects against dust and water ingress. This robust design suits automotive, packaging, and material handling applications.

Installation and Cable Management

This cable provides a 1.0 m standard length for convenient field installation. Users can connect modules with minimal cable slack and routing effort. The flexible cable design simplifies wire management within control panels. Installers can secure the cable using standard cable ties and management accessories. The color-coded conductors simplify wiring during system assembly and commissioning. This design reduces installation time and potential wiring errors.
