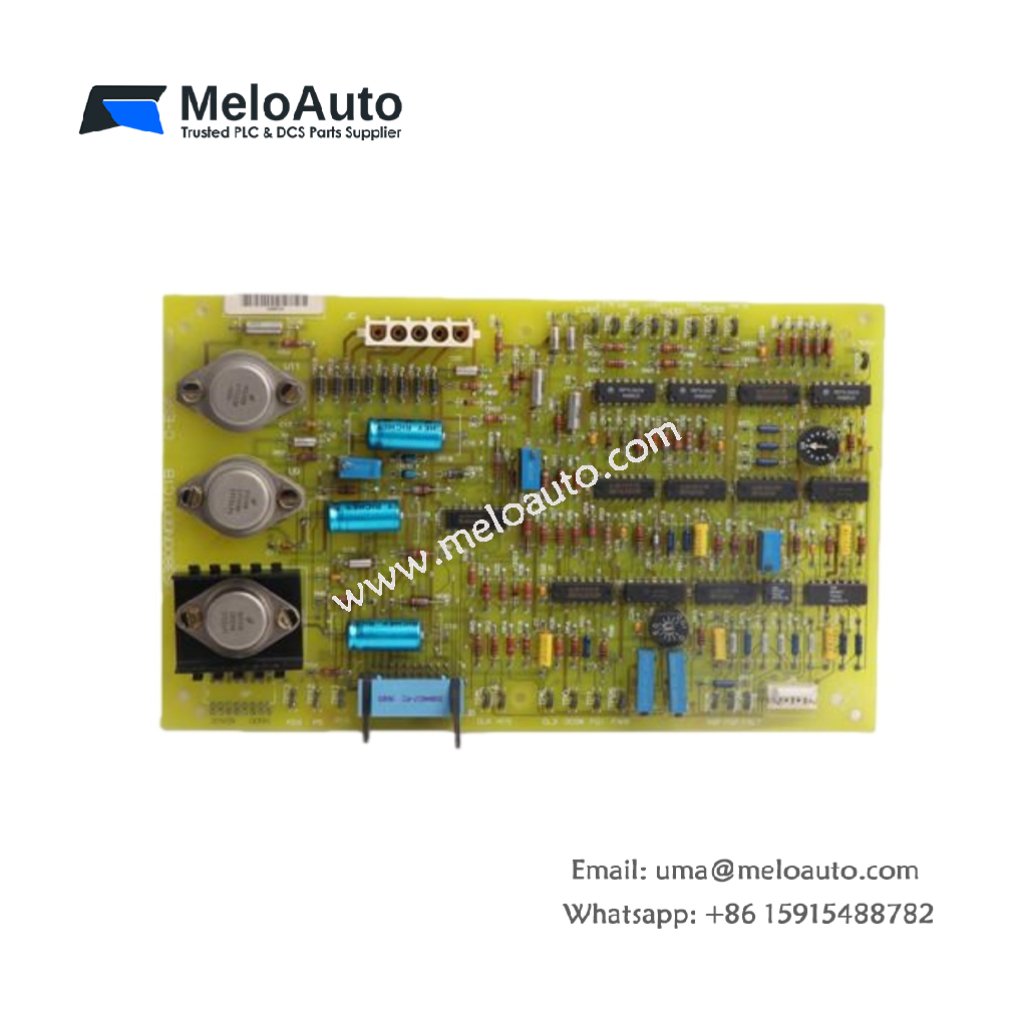

GE DS200TCQAG1BGE Analog I/O Board

Product Overview

The DS200TCQAG1BGE is an Analog I/O board from GE (General Electric), designed as part of the Mark V Series. This series, renowned for its advanced control systems, was initially developed for gas, steam, and wind turbines. The DS200TCQAG1BGE is a crucial component for systems that rely on GE’s Speedtronic technology, which was first introduced with the Mark I Series in the 1960s. Although the Mark V Series is no longer in active production, the DS200TCQAG1BGE remains indispensable for maintaining and upgrading legacy turbine control systems.

Key Technical Specifications

Specification	Details
Part Number	DS200TCQAG1BGE
Manufacturer	GE General Electric
Series	Mark V Series
Functional Description	Analog I/O Board
Acronym	TCQA
PCB Coating Style	Normal Coating
Revision Quantity	1 Revision
Assembly Type	Normal Assembly
Connectors	4 x 34-pin, 2 x 40-pin
Jumpers	6
LEDs	6
Mounting	Designed for board cabinet installation with screw holes for secure mounting
Weight	Approx. 0.5 kg (specific weight varies by assembly)
Dimensions (L x W x H)	15.2 cm x 10.5 cm x 3.2 cm

Features & Benefits

The DS200TCQAG1BGE Analog I/O Board plays a vital role in the operation of turbine control systems. It is engineered to support both the analog and digital I/O needs of turbine systems, providing precise and reliable control for various functions. The board’s connectors and LED indicators ensure efficient troubleshooting and system monitoring.

The design includes screw holes for easy and secure mounting within a cabinet, which is essential for maintaining the board’s stability during operation. With six jumpers, it allows for configuration flexibility, making it adaptable for different system requirements. Though part of an older Mark V Series, this board continues to be essential in the servicing and repair of turbine control systems that still rely on Speedtronic technology.

Installation Tips

Retain screws and washers from the old board to facilitate installation.
Keep the installation area clean and free of debris to prevent potential damage or injury.
During installation, use both hands: one to hold the screwdriver and the other to hold screws and washers securely in place.

Conclusion

For users maintaining or repairing legacy turbine control systems, the DS200TCQAG1BGE Analog I/O Board is an essential component. With its reliable performance, flexibility, and easy installation, it continues to serve turbine systems worldwide, ensuring operational efficiency and control.
