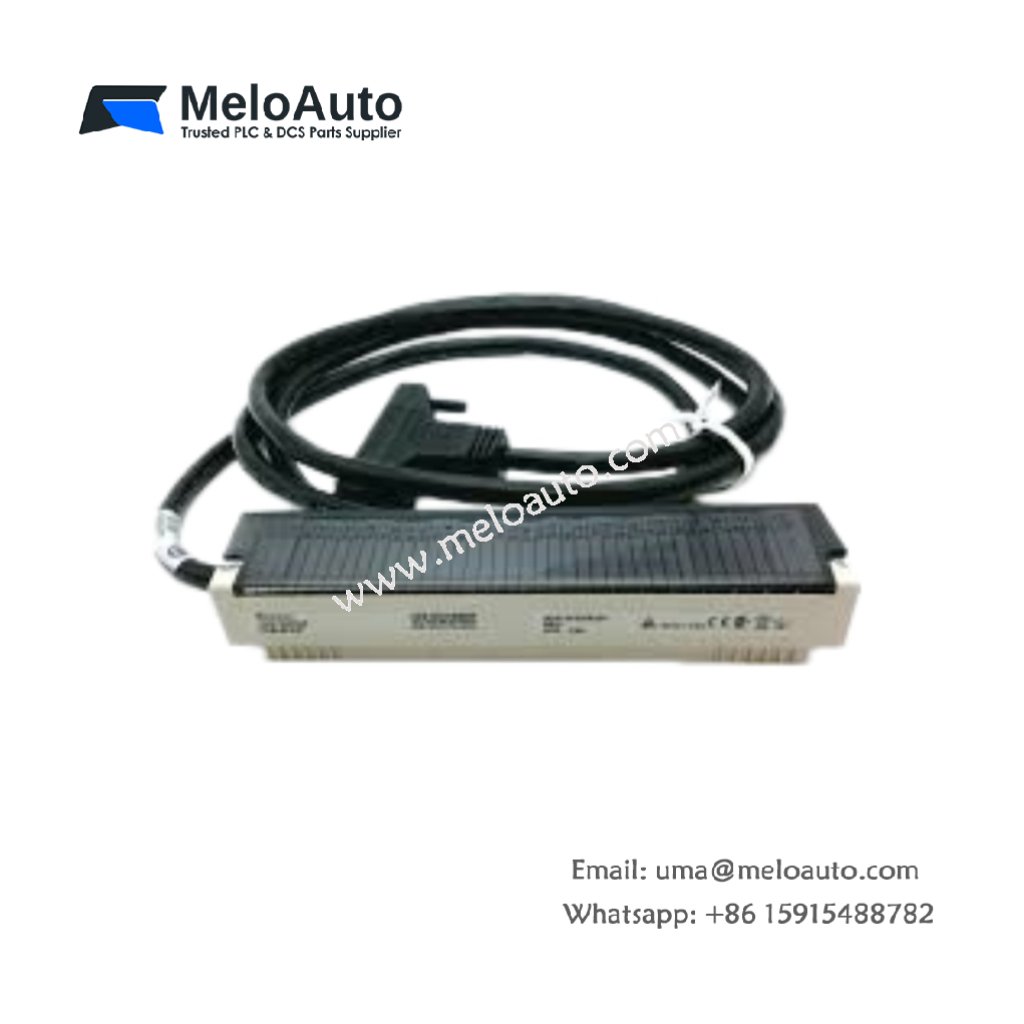

Schneider 140XTS00209 Cable System Terminal

The 140XTS00209 serves as a cable system terminal for Schneider PLC I/O modules. This unit provides convenient field wiring connections for remote racks. Its rectangular frame measures 86 millimeters in width. The terminal height reaches 56 millimeters exactly. Depth stays at 61 millimeters. You will find this unit weighs approximately 0.09 kilograms. Therefore, installation requires only a standard DIN rail clip. One 20-position spring clamp terminal block handles all field wiring.

Physical Layout and Connectors

The spring clamp terminal accepts solid wires up to 14 AWG. Each clamp opens with a small screwdriver for easy insertion. A 20-pin ribbon cable connector links to the host I/O module. Four mounting tabs secure the unit to TS35 DIN rails. You can label each terminal position using the write-on surface.

Technical Specifications

Parameter	Specification
Terminal Width	86 mm
Terminal Height	56 mm
Terminal Depth	61 mm
Unit Weight	0.09 kg
Terminal Points	20 (spring clamp)
Wire Gauge	24 to 14 AWG (solid/stranded)
Connector Type	20-pin ribbon (1.27mm pitch)
Component Total	28 discrete parts
Current Rating	2A per terminal
Voltage Rating	60V DC / 30V AC
Contact Material	Tin-plated copper alloy
Operating Temperature	-25°C to +70°C

Internal Design and Energy Storage

The 140XTS00209 contains exactly 28 discrete components inside. A small PCB routes each ribbon pin to its corresponding clamp. The board uses no capacitors or energy storage devices. Gold-plated contacts ensure reliable signal transmission over time. The spring mechanism maintains constant pressure on each wire. This design eliminates the need for screw tightening or retorquing.

Operational Performance

This cable terminal connects directly to Schneider I/O modules via ribbon cable. It transfers signals between field devices and the PLC rack. Moreover, the unit supports both digital and analog signal types. You can terminate up to 20 individual field wires at one location. The spring clamps withstand vibration better than screw terminals. Each clamp releases quickly for wire changes or rework. Consequently, you achieve fast and reliable field wiring terminations. Schneider designed this terminal for Quantum and Momentum platforms. Its compact size saves valuable space inside control cabinets.

In summary, the 140XTS00209 delivers efficient cable termination. Use this unit for remote I/O racks or marshalling panels. It simplifies field wiring without special tools or training. Order this cable system terminal for your Schneider PLC installation.
