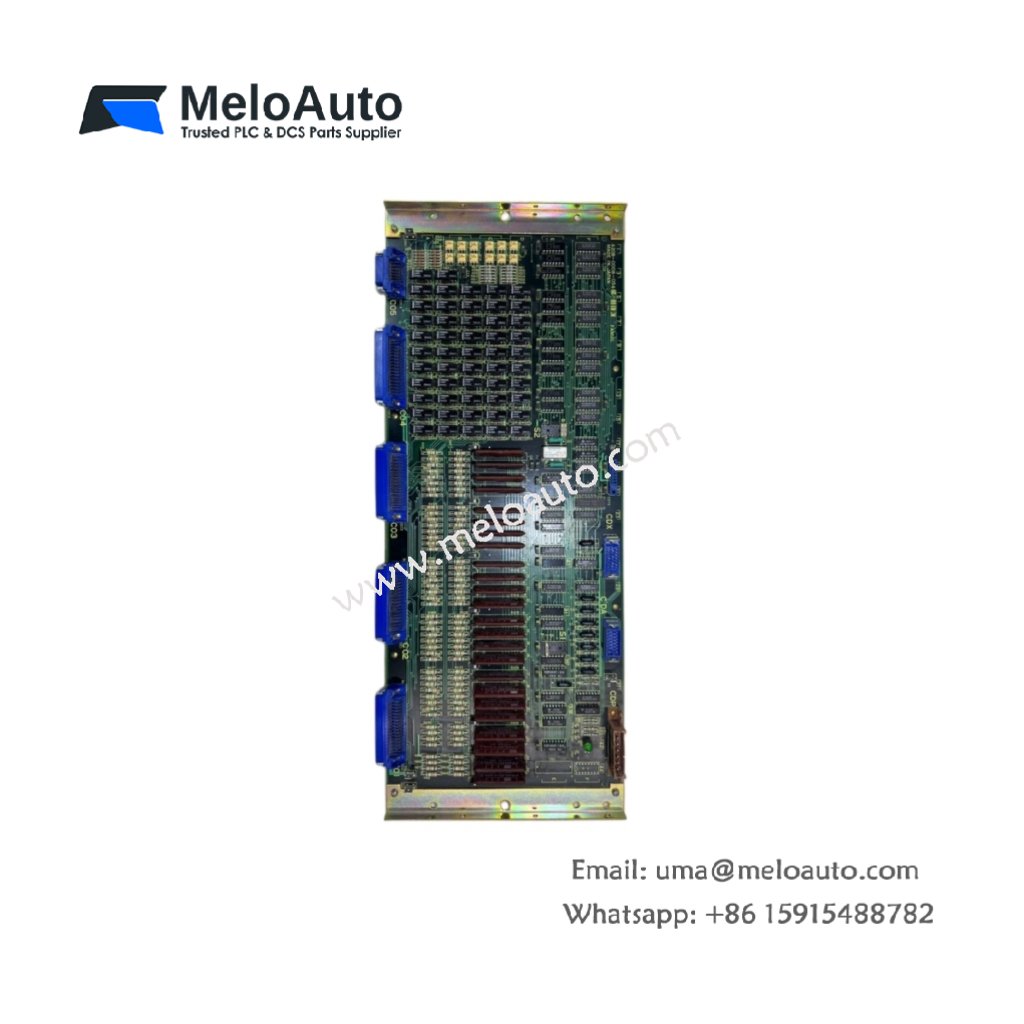

GE A20B-0008-0540/01A | Control Module Interface

This control module interface manages communication between CNC system boards. It connects the main processor to I/O and servo control circuits. The unit mounts inside the CNC cabinet for reliable data exchange.

Technical specifications

Parameter	Specification
Brand	GE Fanuc
Model	GE A20B-0008-0540/01A
Category	Control Module Interface
PCB Layer Count	4 layers
Component Count	Approximately 110 components
Integrated Circuits	15 ICs (logic, buffers, drivers)
Connector Types	2 x 50-pin headers, 1 x 34-pin ribbon
Interface Protocol	Proprietary CNC bus
Power Supply	24V DC from backplane
Current Consumption	180 mA typical
Test Points	8 gold-plated test points
Status Indicators	1 x LED (Power OK)
Number of Components	1 PCB, 15 ICs, 3 connectors, 60 resistors
Dimensions (L x W)	Approx. 24 cm x 18 cm
Thickness	Approx. 1.6 mm
Weight	Approx. 0.38 kg
Energy Storage	6 x electrolytic capacitors (220 µF total)
Operating Temperature	0°C to 55°C
Mounting	6 x screw holes (M3)

Detailed Technical Analysis

This control module interface uses a 4-layer PCB for robust signal integrity. The board contains approximately 110 components including 15 ICs. These integrated circuits include bus drivers, logic gates, and buffer chips. The GE A20B-0008-0540/01A handles timing-critical communication between CNC subsystems.

Now let us examine its connectivity features. The module includes two 50-pin headers for main bus connections. A 34-pin ribbon connector links to auxiliary I/O circuits. Eight gold-plated test points allow signal monitoring with an oscilloscope. A single green LED confirms that power is present.

The module stores no program data or user settings permanently. It functions purely as a passive signal routing and buffering device. The GE A20B-0008-0540/01A draws 180 milliamps from the 24V DC supply. Six electrolytic capacitors provide local power filtering for the ICs.

Installation and Compatibility Guidelines

You mount this board using six M3 screws with insulating standoffs. Ensure proper alignment before pressing connectors together. The GE A20B-0008-0540/01A fits specific GE Fanuc CNC models. Verify compatibility with your system before purchasing this module.

Handle the board by its edges to avoid static damage. Use a grounded wrist strap during installation procedures. The GE A20B-0008-0540/01A has no field-serviceable components. Replace the entire board if you suspect a failure.

Practical Applications

Engineers use this interface module for CNC system repair and restoration. It serves as a direct replacement for failed original boards. The GE A20B-0008-0540/01A also supports legacy machine tool upgrades. Its robust construction withstands industrial vibration and temperature cycles.

Summary

To conclude, this control module interface contains 110 components and 15 ICs. It weighs 0.38 kilograms and requires a 24V DC supply. Choose GE A20B-0008-0540/01A for reliable CNC system interface replacement.
