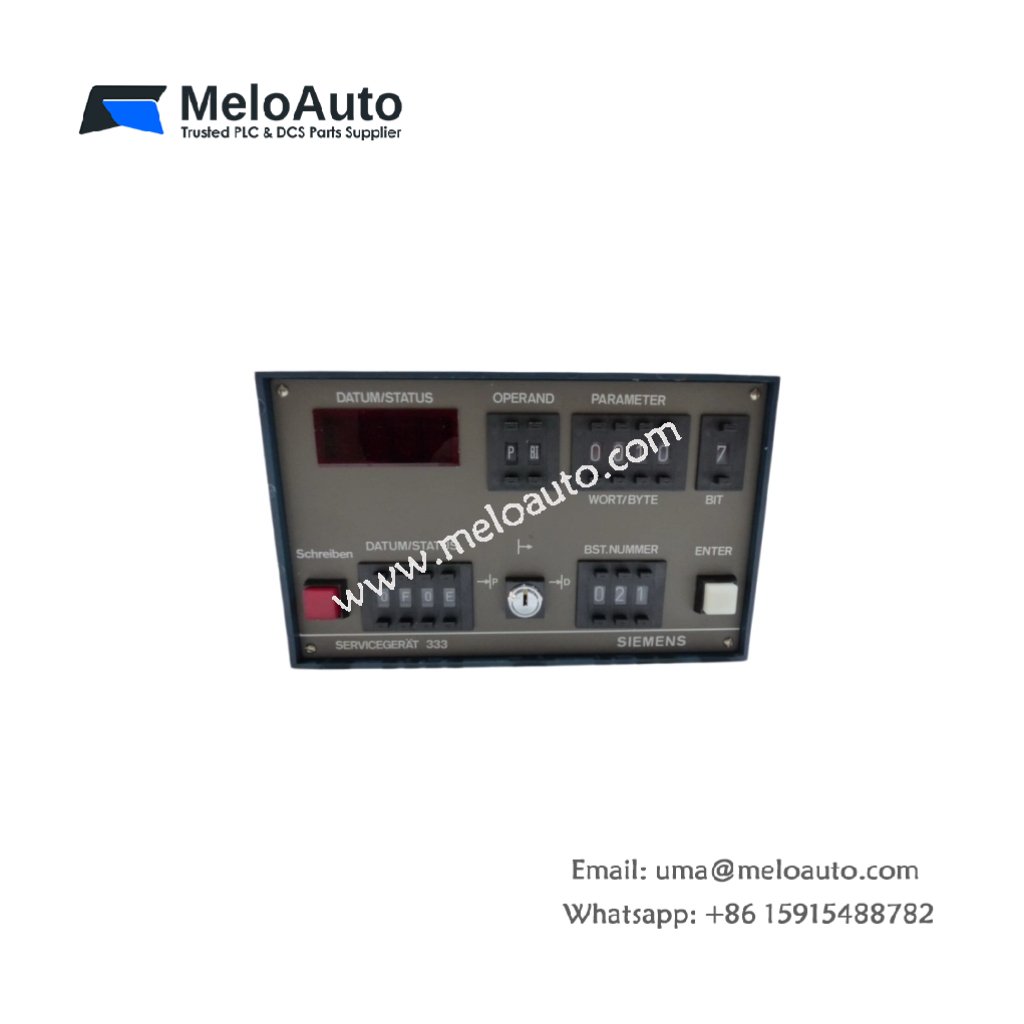

Siemens 6ES5333-0AC Service Monitor Assembly

This device monitors backplane activity and helps diagnose system faults quickly. The Siemens 6ES5333-0AC plugs into any S5 rack slot for signal analysis. It measures 232 mm in width and 75 mm in height. This unit weighs approximately 0.45 kg for portable diagnostic use.

Technical Specifications Table

Parameter	Value
Product Model	Siemens 6ES5333-0AC
Category	Service Monitor Assembly / Diagnostic Tool
Compatible Racks	SIMATIC S5 all series
Display Type	8 x red LED status indicators
Signal Monitoring	Backplane bus activity and voltage levels
Dimensions (W x H x D)	232 mm x 75 mm x 130 mm
Weight	0.45 kg
Connection Type	1 x 20-pin male backplane connector
Internal Components	1 x buffer circuit, 8 x LED drivers
Monitored Signals	Address bus, data bus, control lines
Energy Storage	None (passive monitoring device)
Operating Voltage	5 V DC (drawn from backplane)
Power Consumption	50 mA maximum

Internal Design and Signal Monitoring

This service monitor uses eight red LEDs to show bus activity in real time. A buffer circuit taps into the backplane signals without loading the bus. The Siemens 6ES5333-0AC monitors address lines, data lines, and control signals simultaneously. Each LED corresponds to a specific signal group for quick fault identification. The module draws only 50 mA of current from the 5 V DC backplane supply. Consequently, this device does not interfere with normal PLC operation.

Installation and Diagnostic Use

First, insert this monitor into any empty slot of your SIMATIC S5 rack. Next, power up your PLC system to activate the monitoring circuit. Then, observe the LED patterns during program execution or fault conditions. A steady LED indicates constant signal activity on that bus line. A flashing LED suggests intermittent communication or addressing issues. You can move the module to different slots for troubleshooting specific sections. This monitor works with all SIMATIC S5 CPU models including 100U, 115U, 135U, and 155U. Remove the module after diagnosis to free the slot for normal I/O operation.
