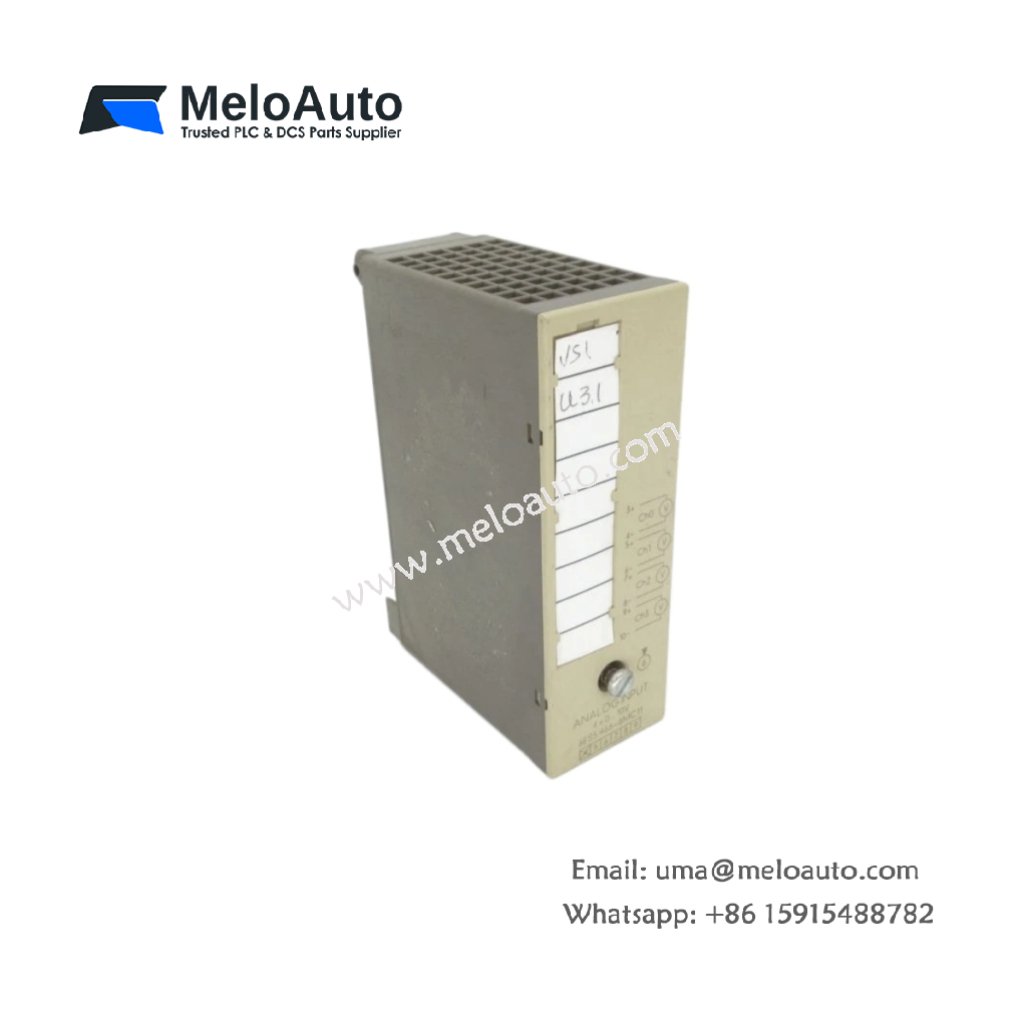

Siemens 6ES5466-8MC11 Analog Input Module

The Siemens 6ES5466-8MC11 is a dedicated analog input module for the SIMATIC S5 series. It reads voltage signals from sensors or field transmitters. This module fits perfectly into the ET 200U distributed I/O station.

Technical parameters of Siemens 6ES5466-8MC11

Parameter	Specification
Brand	Siemens
Model	Siemens 6ES5466-8MC11
Product Family	SIMATIC S5 / ET 200U
Category	Analog Input Module
Number of Channels	8 (eight) independent inputs
Input Signal Range	0 to 10V DC (voltage)
Data Storage Format	1 byte per channel (0 to 255)
Compatible Rack	ET 200U distributed I/O station
Dimensions (L x W x H)	Approx. 12 cm x 9 cm x 4 cm
Weight	Approx. 0.4 kg

Detailed Technical Analysis of Siemens 6ES5466-8MC11

The Siemens 6ES5466-8MC11 specializes in voltage-based analog acquisition. It works with 0 to 10V DC signals from pressure or temperature transmitters. Therefore, you get reliable measurement data for process monitoring.

Now let us examine its unique data storage method. Unlike many modern modules, this device stores each analog value in a single byte. That byte represents a raw integer between 0 and 255. In contrast, most analog cards use 16-bit word storage. Consequently, you must pre-process this byte value before using it for scaling.

You will find the Siemens 6ES5466-8MC11 ideal for legacy system maintenance. It requires no firmware updates or complex configuration. Simply insert the module into an ET 200U rack slot. For example, if you place it in slot 1, the start address begins at byte 72. The module then writes channel 0 data to IB 72, channel 1 to IB 73, and so on up to IB 75.

Integration and Replacement Considerations

Engineers often ask about replacing this module in modern systems. Notably, you can substitute the Siemens 6ES5466-8MC11 with an S7-300 analog input card. The direct equivalent is the SM 331 module (6ES7331-1KF02). This substitution works well during a partial system migration.

The hardware weighs approximately 0.4 kilograms. Its compact dimensions (12 x 9 x 4 cm) save valuable cabinet space. Additionally, the module offers strong noise immunity for harsh industrial floors. It draws minimal power from the backplane bus.

Summary of Siemens 6ES5466-8MC11 Features

To summarize, the Siemens 6ES5466-8MC11 delivers eight channels of 0-10V analog input. It stores each channel in a single byte format (0-255 raw value). Use this module to keep your SIMATIC S5 system running reliably. It is a practical choice for process control in older automation lines.
