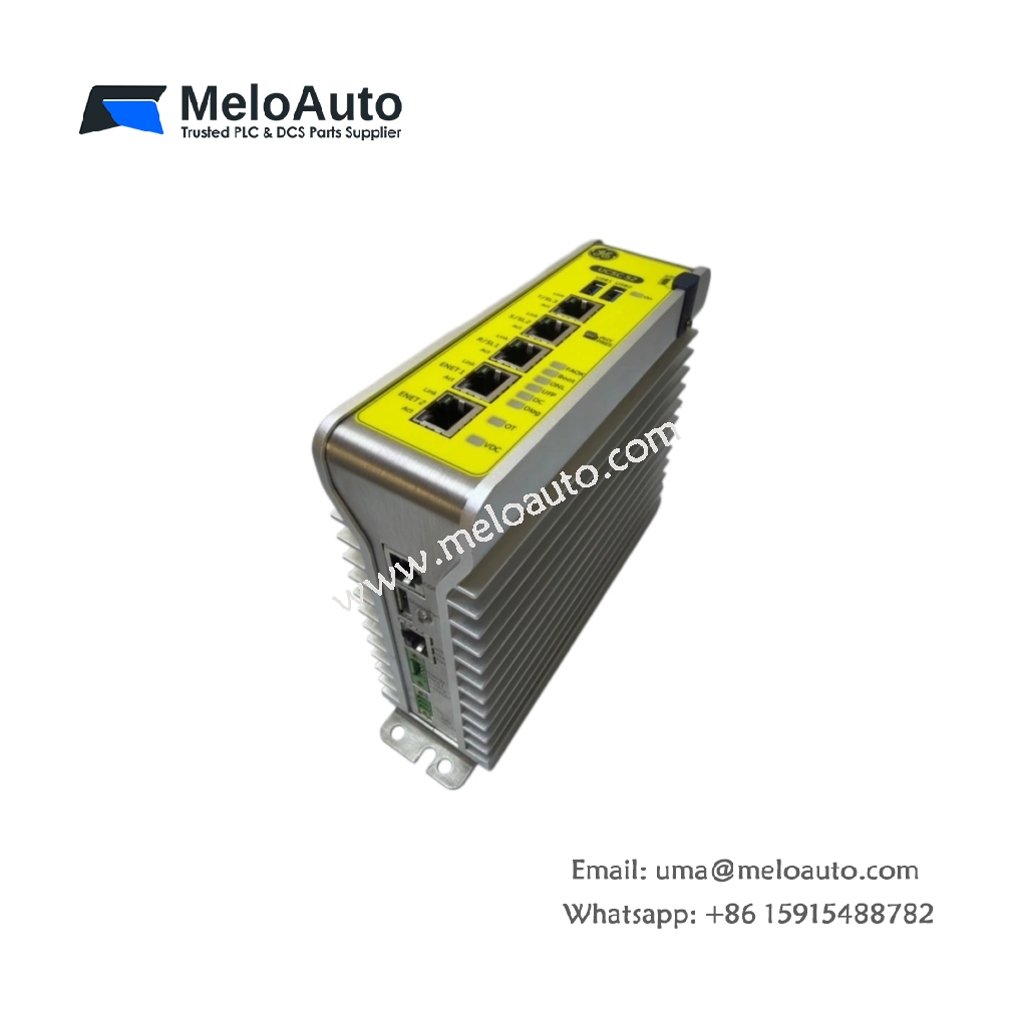

GE IS420UCSCS2 Mark VIe Controller Module

Product Overview

The GE IS420UCSCS2 operates as a compact single-slot controller within the Mark VIe series. This unit combines processing power with integrated I/O connectivity for streamlined automation. Its efficient design reduces cabinet space requirements significantly. We engineered this module for applications where footprint and performance matter equally.

Processing Architecture and Integrated Features

This controller incorporates a capable processor with built-in communication interfaces. The GE IS420UCSCS2 runs the QNX Neutrino RTOS for reliable real-time operations. Its integrated I/O capabilities eliminate the need for separate interface modules. The module includes onboard non-volatile storage for application and configuration retention. Furthermore, self-diagnostic routines continuously verify operational integrity.

Technical Specifications

Parameter	Specification
Processor	600 MHz Intel EP80579
Operating System	QNX Neutrino 6.5
System Memory	256 MB DDR2 SDRAM
Flash Storage	512 MB CompactFlash
User Program Memory	256 MB
Ethernet Ports	5 total (4 x IONet, 1 x management)
IONet Speed	100 Mbps full-duplex
Serial Console	1 x RS-232 (RJ-45 connector)
USB Ports	2 x USB 2.0 host
Maximum I/O Packs	32 per controller
Minimum Scan Rate	10 ms
Real-Time Clock	Battery-backed with ±5 ppm accuracy
Clock Battery	3.6 V lithium, 5 years typical
LED Indicators	Power, run, fault, link status
Power Supply	24 V DC nominal (18–32 V DC)
Power Consumption	23 W peak, 13.5 W typical
Inrush Current	12 A maximum for 10 ms
Weight	1.1 kg (approximately 2.43 lbs)
Dimensions (W x H x D)	63.5 mm x 273 mm x 193 mm
Mounting Bracket	1.5 mm steel, DIN rail compatible
Operating Temperature	-30°C to +65°C
Storage Temperature	-40°C to +85°C
Relative Humidity	5% to 95% non-condensing
Vibration	2 g at 10–500 Hz
Protection Rating	IP20 when mounted

Key Functional Benefits

The GE IS420UCSCS2 offers a balanced feature set for standard control applications. Its fanless thermal design removes moving parts and enhances service life. Consequently, this module delivers consistent performance with minimal maintenance. The controller retains programs without battery power, reducing ownership costs. Moreover, its compact footprint leaves room for additional system components.

Installation and System Connectivity

You must mount the GE IS420UCSCS2 on a standard DIN rail inside a protective enclosure. The controller communicates with I/O packs through the dedicated IONet network. Proper grounding and cable shielding ensure reliable data transmission. Additionally, you can access the module via the management port for configuration tasks. This unit integrates seamlessly into GE’s Mark VIe control system environment.

Durability and Compliance Standards

The GE IS420UCSCS2 meets CE and RoHS regulatory requirements for industrial equipment. Its conformal-coated PCB resists humidity and dust ingress effectively. The module maintains specification across its full temperature operating range. Furthermore, the controller achieves an MTBF exceeding 180,000 hours. This reliability supports continuous operation in demanding plant conditions.
