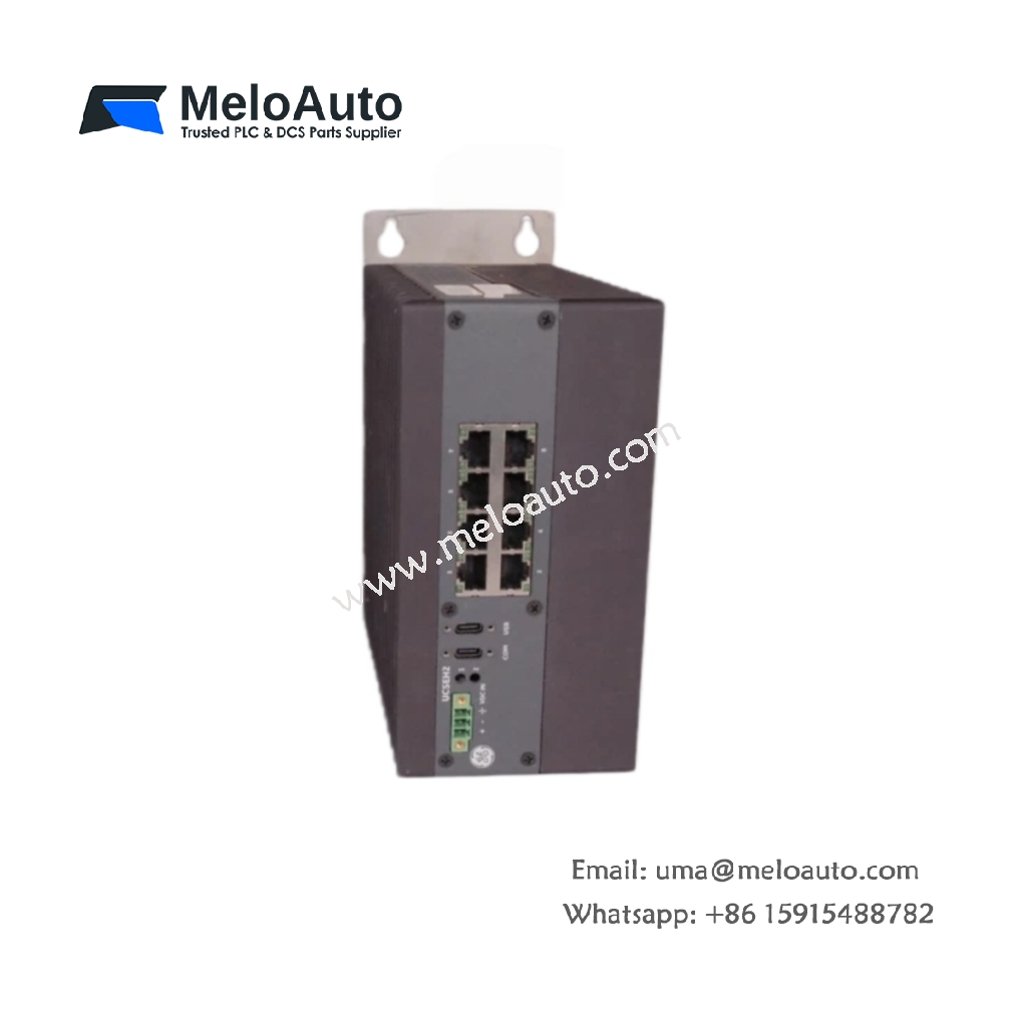

GE IS420UCSEH2A Dual-Core Controller

Product Overview

The GE IS420UCSEH2A operates as a dual-core controller module within the Mark VIe platform. This unit balances processing power with energy efficiency for demanding control tasks. Its multi-core architecture enables concurrent execution of safety and regulatory functions. We built this module for applications requiring both performance and cost-effectiveness.

Processing Architecture and Core Distribution

This dual-core controller leverages its two independent cores for workload separation. The GE IS420UCSEH2A runs the QNX Neutrino RTOS with symmetric multiprocessing support. Its architecture isolates critical control loops from less time-sensitive background tasks. The module includes ample memory for complex logic and data acquisition. Furthermore, onboard diagnostics monitor core utilization and thermal conditions continuously.

Technical Specifications

Parameter	Specification
Processor	Intel dual-core (2 x cores)
Clock Speed	1.0 GHz per core
Operating System	QNX Neutrino 6.5 (SMP-enabled)
System Memory	1 GB DDR3 SDRAM
Flash Storage	2 GB CompactFlash (industrial grade)
User Program Memory	1 GB
Ethernet Ports	5 total (4 x IONet, 1 x management)
IONet Speed	100 Mbps full-duplex
Serial Console	1 x RS-232 (RJ-45 connector)
USB Host Ports	2 x USB 2.0
Maximum I/O Packs	64 per controller
Minimum Scan Rate	2 ms
Task Separation	Dedicated cores for safety vs. control
Real-Time Clock	Battery-backed with ±5 ppm accuracy
Clock Battery	3.6 V lithium, 5 years typical
Status LEDs	Power, run, fault, per-core activity
Power Supply	24 V DC nominal (18–32 V DC range)
Power Consumption	35 W peak, 24 W typical
Inrush Current	18 A maximum for 10 ms
Weight	1.35 kg (approximately 2.98 lbs)
Dimensions (W x H x D)	63.5 mm x 273 mm x 193 mm
Mounting	DIN rail with 1.5 mm steel bracket
Operating Temperature	-30°C to +65°C
Storage Temperature	-40°C to +85°C
Relative Humidity	5% to 95% non-condensing
Vibration	2 g at 10–500 Hz
Shock	15 g for 11 ms
Protection Rating	IP20 when mounted

Key Functional Benefits

The GE IS420UCSEH2A offers exceptional performance with moderate power requirements. Its dual-core design allows real-time control and background analytics simultaneously. Consequently, this controller handles complex applications without excess energy consumption. The module supports redundancy configurations for enhanced system availability. Moreover, its 2 ms scan rate satisfies most high-speed control requirements.

Installation and System Integration

You must mount the GE IS420UCSEH2A on a standard DIN rail inside a protective cabinet. The controller connects to I/O packs via the redundant IONet communication backbone. Proper airflow around the module ensures optimal thermal performance. Additionally, you can configure parameters through the dedicated management interface. This module integrates fully with GE’s Mark VIe control architecture.

Environmental Compliance and Reliability

The GE IS420UCSEH2A meets CE, UL 61010-1, and RoHS industrial standards. Its conformal-coated PCB withstands humidity and corrosive atmospheric conditions. The module delivers consistent performance across its full temperature range. Furthermore, the controller achieves an MTBF exceeding 190,000 hours. This reliability ensures uninterrupted operation in critical power generation facilities.
