Product Overview

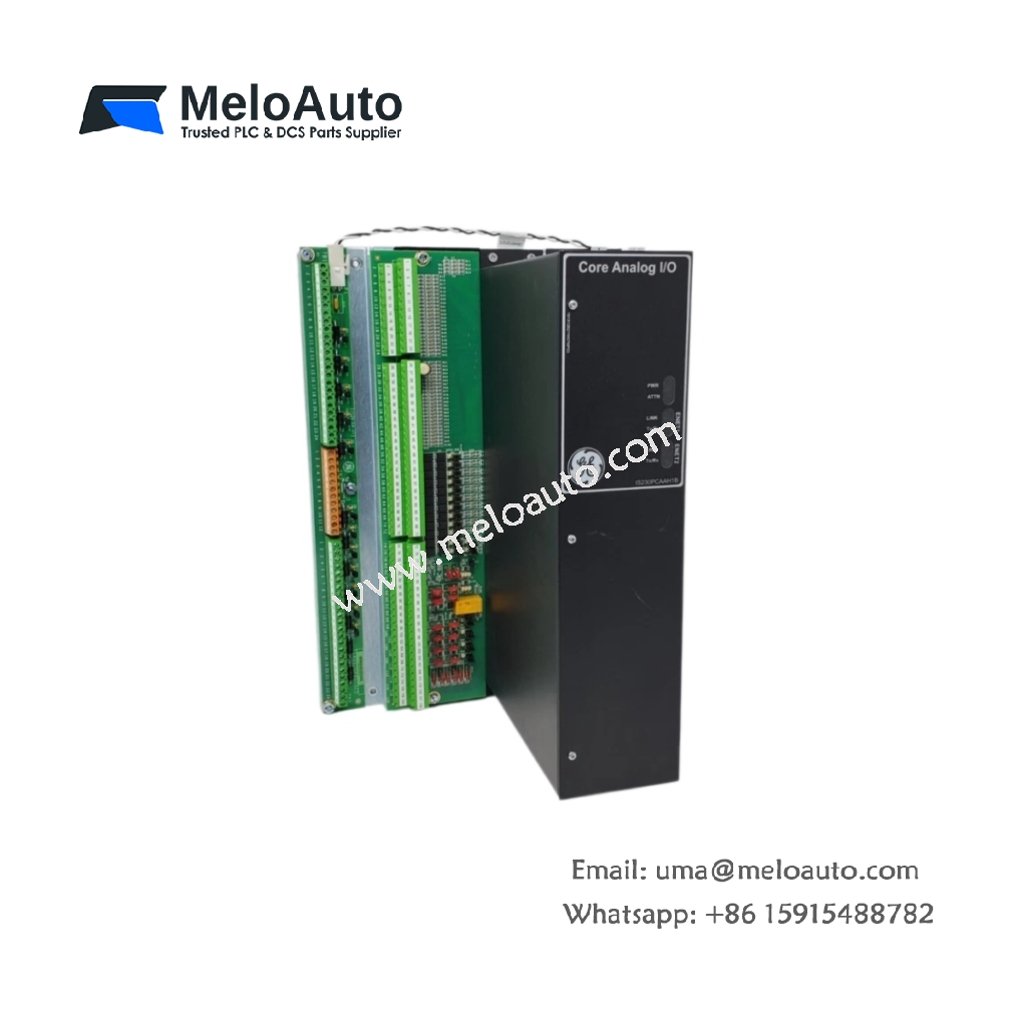

The GE IS230PCAAH1A operates as a core analog module within the Mark VIe distributed control system. This unit handles analog signal acquisition and conversion with high precision. Its versatile input configuration accommodates various field devices and sensors. We engineered this module for reliable operation in demanding power generation environments.
Signal Acquisition and Conversion Architecture
This core analog module features multiple channels with independent signal conditioning paths. The GE IS230PCAAH1A accepts both current and voltage inputs from diverse transducers. Its high-resolution ADC delivers accurate measurements for critical process parameters. The module includes programmable gain amplifiers for optimal signal scaling. Furthermore, built-in filtering removes high-frequency noise from sensor readings.
Technical Specifications
| Parameter | Specification |
|---|---|
| Analog Input Channels | 8 differential or 16 single-ended |
| Voltage Ranges | ±10 V, ±5 V, 0–10 V, 0–5 V |
| Current Ranges | 0–20 mA, 4–20 mA (with external shunt) |
| ADC Resolution | 16-bit |
| Accuracy | ±0.1% of full scale at 25°C |
| Temperature Drift | ±50 ppm/°C maximum |
| Sample Rate | 100 Hz per channel |
| Input Impedance | > 1 MΩ (voltage mode) |
| Isolation | 1.5 kV between field and logic |
| Power Supply | 24 V DC from backplane |
| Power Consumption | 8.5 W typical |
| Configuration Storage | Non-volatile EEPROM |
| LED Indicators | Channel status, power, communication |
| Connector Type | 2 x 40-pin header |
| Weight | 0.85 kg (approximately 1.87 lbs) |
| Dimensions (W x H x D) | 86 mm x 305 mm x 280 mm |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
Key Functional Benefits
The GE IS230PCAAH1A delivers accurate analog measurement for turbine monitoring applications. Its high input impedance prevents loading effects on sensitive sensor outputs. Consequently, this module preserves measurement integrity across long cable runs. The board includes diagnostic features for detecting open circuits and over-range conditions. Moreover, users can configure each channel individually via software commands.
Installation and System Integration
You must mount the GE IS230PCAAH1A in a dedicated I/O rack slot within the control cabinet. Proper cable segregation between analog and digital signals reduces noise interference. The module communicates with the main controller through the VME backplane interface. Additionally, you can calibrate the board using GE’s configuration software tools. This module integrates seamlessly into the Mark VIe system architecture.
Environmental Durability and Compliance
The GE IS230PCAAH1A meets CE and RoHS industrial standards for control equipment. Its conformal-coated PCB protects sensitive circuitry from moisture and dust. The module operates reliably across extreme temperature fluctuations. Furthermore, the board achieves an MTBF exceeding 150,000 hours under normal conditions. This robust design ensures consistent performance in harsh industrial settings.
