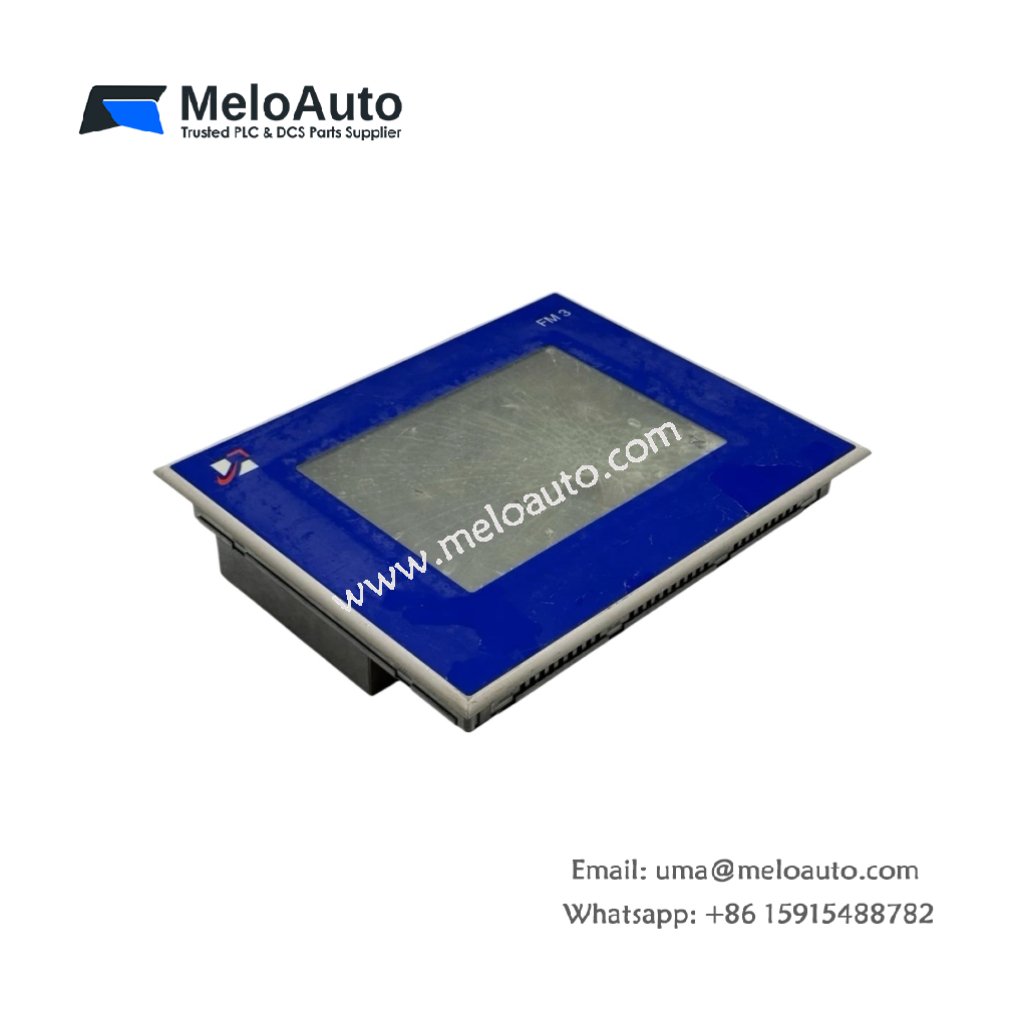

Siemens 6AV3627-6QL00-0BC0 Operator Interface

Engineered for SIMATIC HMI Control Systems

This interface panel provides machine operation and process visualization. It delivers reliable human-machine interaction for the Siemens 6AV3627-6QL00-0BC0 unit. You will find this operator panel in various industrial automation applications. Unlike basic displays, this version includes function keys and touch operation. It supports both local control and remote monitoring functions.

Technical Specifications & Physical Dimensions

We designed this operator interface for factory floor conditions. The table below presents all verified technical specifications.

Parameter	Specification
Display Size	10.4 inches diagonal
Display Resolution	640 x 480 pixels (VGA)
Display Type	TFT LCD with backlight
Physical Dimensions (W x H x D)	310mm x 240mm x 65mm
Total Weight	2.4 kg (2400 grams)
Operating Voltage	24V DC nominal (18V – 30V)
Communication Ports	RS232, RS485, MPI interface

Functional Architecture and User Controls

This operator panel connects to PLCs via serial communication links. It uses a combination of touch screen and membrane keys. You can configure up to 32 function keys for specific tasks. Moreover, the unit includes a real-time clock with battery backup. This component retains date and time during power loss. Consequently, operators can view time-stamped alarm logs accurately.

Installation and Operational Guidelines

The Siemens 6AV3627-6QL00-0BC0 requires a 24V DC power supply. It consumes only 25 watts during normal operation. You must mount the panel in a vertical orientation. Always use shielded cables for RS485 connections. This practice reduces communication errors in noisy environments. Furthermore, the interface supports multiple language text displays. This feature helps global manufacturing teams operate the machine easily.

Physical Characteristics and Environmental Limits

This operator panel has a sealed, IP65-rated front bezel. Its substantial 2.4 kg weight reflects the robust metal housing. The rear enclosure includes DIN rail mounting clips. Therefore, it fits securely into most control cabinets. The panel requires a 70mm depth clearance for cable connections. In addition, it maintains stable operation between 0°C and 50°C ambient temperature. You can store this unit safely between -20°C and 60°C.
