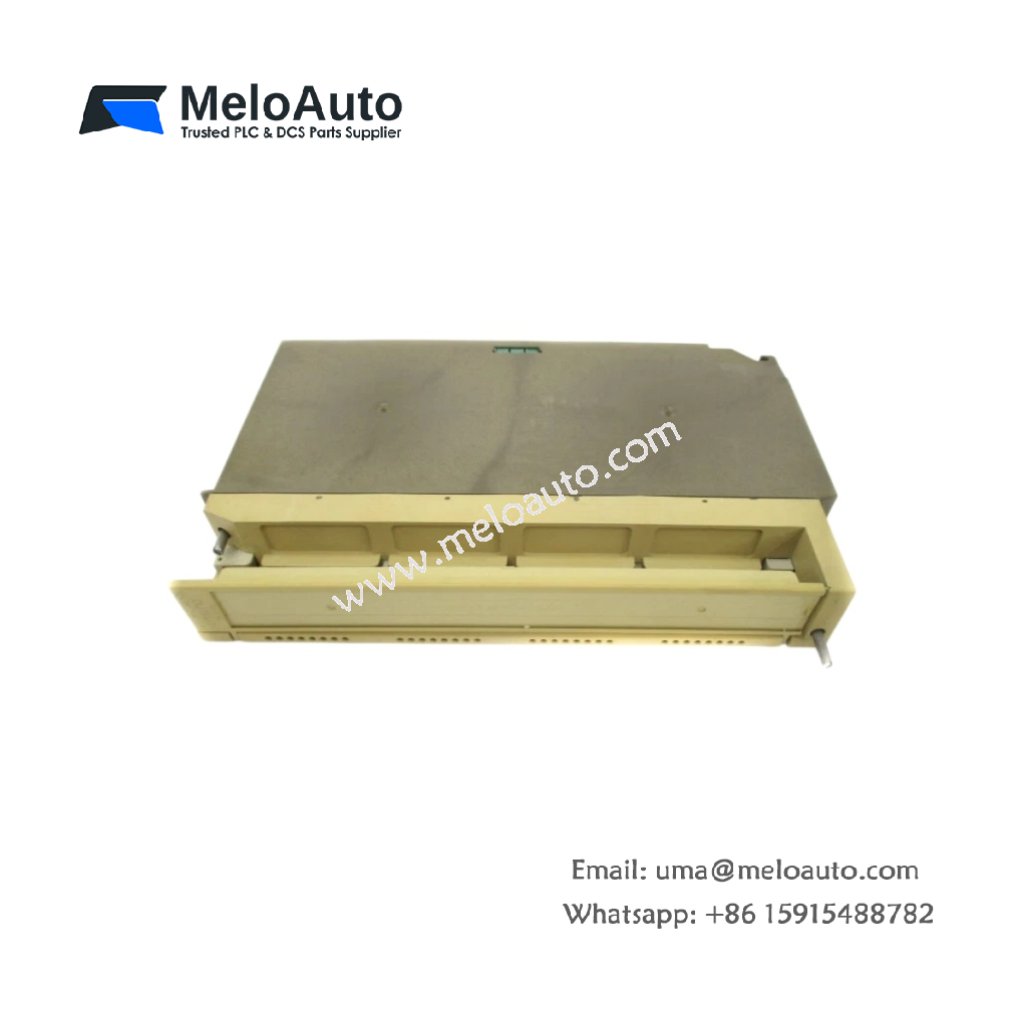

Siemens 6ES5451-7LA11 | Digital Output Module

The Siemens 6ES5451-7LA11 drives actuators and indicators from your S5 PLC. This digital output module switches 24V DC loads with sixteen independent channels. It converts logic signals into real-world electrical outputs for machine control.

Technical specifications of Siemens 6ES5451-7LA11

Parameter	Specification
Brand	Siemens
Model	Siemens 6ES5451-7LA11
Product Family	SIMATIC S5
Category	Digital Output Module
Number of Channels	16 (sixteen) independent outputs
Output Voltage	24V DC nominal
Output Current per Channel	0.5 A (500 mA) maximum
Total Current per Module	4 A maximum
Output Type	Transistor (sourcing)
Short-Circuit Protection	Yes (electronic)
Output Delay	0.5 ms typical
Lamp Load Capability	5 W maximum
Power Supply	24V DC external
Current Consumption	100 mA (logic) + load current
Isolation	Optical isolation between outputs and backplane
Number of Components	1 PCB, 16 transistors, 16 LED indicators, 1 connector
Dimensions (L x W x H)	Approx. 12 cm x 10 cm x 4 cm
Weight	Approx. 0.35 kg
Energy Storage	None (no battery or capacitor)
Operating Temperature	0°C to 60°C

Detailed Technical Analysis

The Siemens 6ES5451-7LA11 provides sixteen sourcing transistor outputs at 24V DC. Each channel delivers up to 0.5 amps of continuous current. You can connect solenoids, relays, indicator lamps, or small contactors directly. The module limits total module current to 4 amps across all channels.

Now let us examine its protective features. The Siemens 6ES5451-7LA11 includes electronic short-circuit protection on every output. This feature prevents damage from accidental wiring errors. Each channel also has a bright green LED indicator. These LEDs show the active status of each output immediately.

The module draws only 100 milliamps for its internal logic. The load current comes directly from your external 24V supply. The Siemens 6ES5451-7LA11 optically isolates outputs from the PLC backplane. Therefore, electrical noise from field wiring cannot damage your CPU.

Installation and Wiring Guidelines

You mount the Siemens 6ES5451-7LA11 into any standard S5 rack slot. Use a 20-pin front connector for all field wiring connections. Connect a common 24V DC supply to the module’s power terminals. The outputs then switch this supply voltage to your loads.

For inductive loads like relays or solenoids, add a flyback diode. This diode prevents voltage spikes from damaging the output transistors. The Siemens 6ES5451-7LA11 switches within 0.5 milliseconds. This speed suits most industrial control applications perfectly.

Practical Applications

Engineers use this module for controlling machine actuators and pilot lights. For example, you can drive 16 small contactors from a single module. The Siemens 6ES5451-7LA11 also works well for solenoid valves in pneumatic systems. Its short-circuit protection adds reliability to critical production lines.

Summary

To conclude, the Siemens 6ES5451-7LA11 offers sixteen 24V DC outputs at 0.5A each. It weighs only 0.35 kilograms and contains no batteries. Choose this module for reliable digital output control in legacy S5 systems.
