Siemens 6ES5701-2LA12 | Expansion Rack

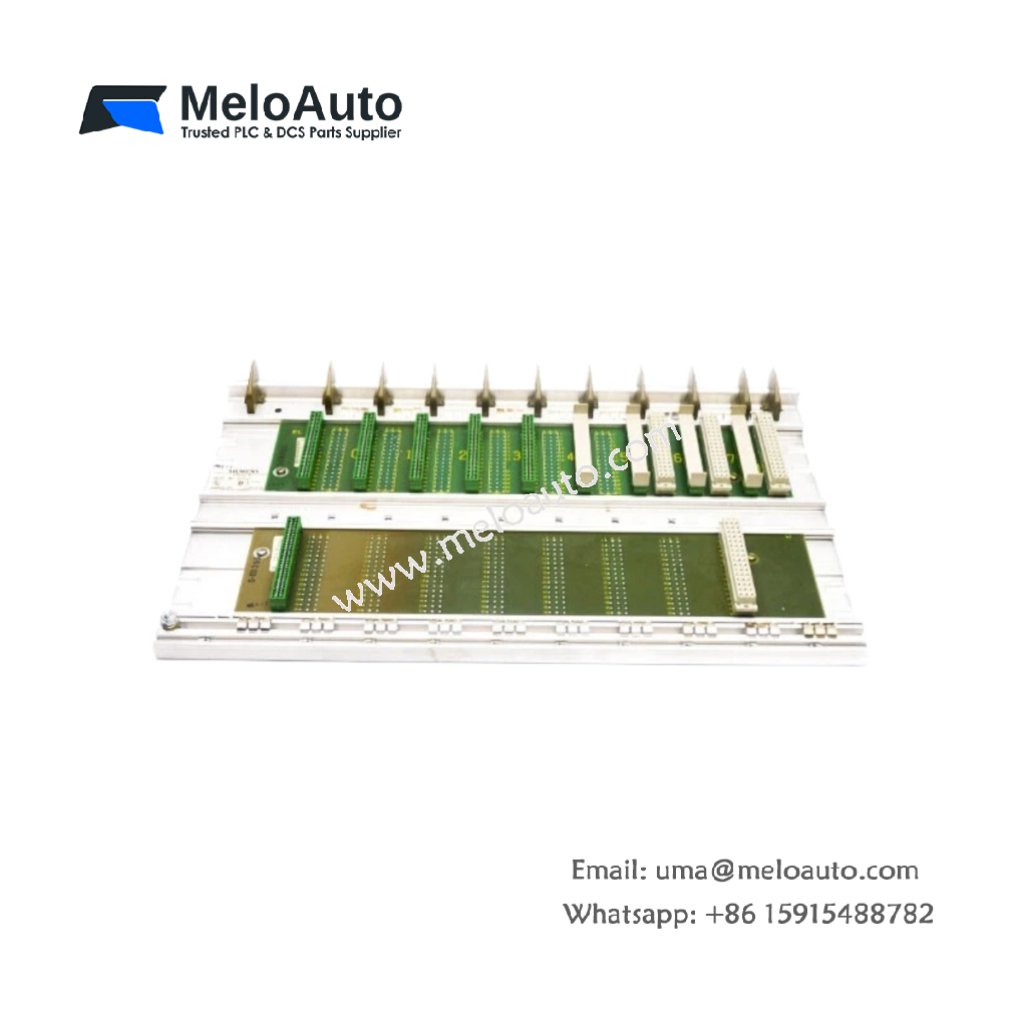

The Siemens 6ES5701-2LA12 adds extra I/O capacity to your S5 PLC system. This expansion rack connects to a central controller via an interface module. It houses additional input, output, and specialty modules for larger applications.

Technical specifications of Siemens 6ES5701-2LA12

Parameter	Specification
Brand	Siemens
Model	Siemens 6ES5701-2LA12
Product Family	SIMATIC S5
Category	Expansion Rack (EG 183U)
Number of Slots	8 (eight) module slots
Backplane Type	Passive backplane with bus
Power Supply	24V DC external (via PS module)
Compatible Interface Modules	IM 300, IM 301, IM 312
Max Distance from CPU	100 meters with proper cabling
Number of Components	1 metal chassis, 1 backplane PCB, 8 slot guides
Dimensions (L x W x H)	Approx. 35 cm x 16 cm x 12 cm
Weight	Approx. 2.8 kg (empty)
Mounting	DIN rail or panel mount
Energy Storage	None (passive backplane)
Operating Temperature	0°C to 60°C

Detailed Technical Analysis

The Siemens 6ES5701-2LA12 provides eight slots for additional I/O modules. This rack expands your system without changing the main CPU. It uses a passive backplane that carries both power and data signals. Therefore, the rack itself contains no active electronic components.

Now let us examine its physical construction. The Siemens 6ES5701-2LA12 features a sturdy metal chassis for industrial environments. It includes eight module guides with secure locking mechanisms. The backplane PCB connects all slots to a single bus. This design allows any module to communicate with the CPU.

The empty rack weighs approximately 2.8 kilograms. You must install a power supply module in one of the slots. The Siemens 6ES5701-2LA12 requires an interface module for CPU communication. This interface sits in the leftmost slot of the rack.

Installation and Configuration

You mount the Siemens on a standard DIN rail or a panel. Secure the rack using all four mounting points. Then install a power supply module into any slot. The power supply should match your system’s voltage requirements.

Next, insert an interface module into the leftmost slot. The Siemens 6ES5701-2LA12 connects to the central CPU via a shielded cable. Keep this cable length under 100 meters for reliable communication. Terminate both ends of the cable to prevent signal reflection.

Practical Applications

Engineers use this expansion rack to increase I/O count in large systems. For example, you can add eight analog modules to monitor more process variables. The Siemens 6ES5701-2LA12 also allows placement of I/O near the machinery. This approach reduces long sensor wiring runs significantly.

Summary

To conclude, the Siemens 6ES5701-2LA12 offers eight slots for I/O expansion. It weighs 2.8 kilograms and requires a separate power supply module. Choose this rack to extend your S5 system’s I/O capacity cost-effectively.
