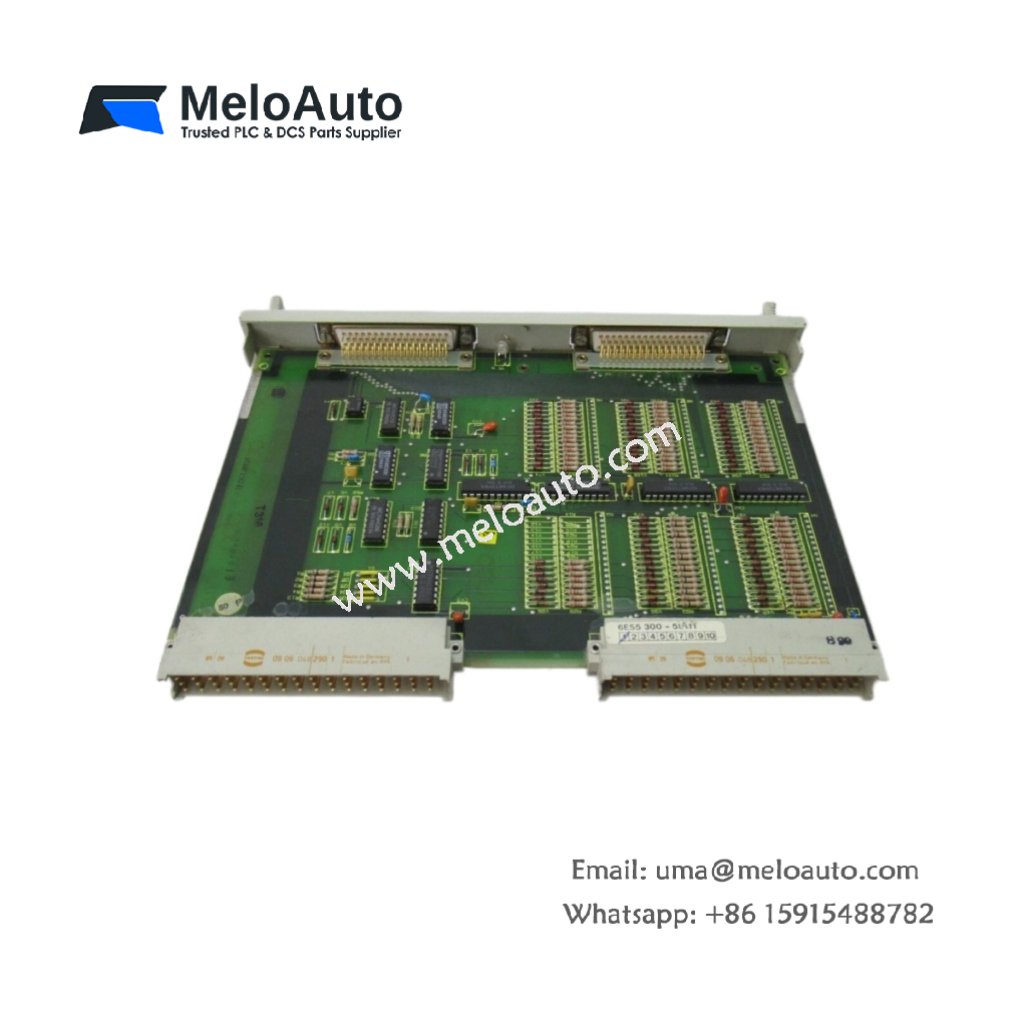

Siemens 6ES5300-5LA11 | Interface Module

The Siemens 6ES5300-5LA11 links your S5 CPU to remote expansion racks. This interface module manages data exchange between central and distributed I/O stations. It serves as a backbone component for larger S5 automation systems.

Technical specifications of Siemens 6ES5300-5LA11

Parameter	Specification
Brand	Siemens
Model	Siemens 6ES5300-5LA11
Product Family	SIMATIC S5
Category	Interface Module (IM 300)
Compatible CPUs	S5-115U, S5-135U, S5-150U, S5-155U
Communication Bus	SINEC L1 / AS511
Power Supply	24V DC external
Current Consumption	180 mA typical
Number of Connectors	1 x 15-pin D-sub (RS-485)
Maximum Cable Length	100 meters between racks
Maximum Nodes	32 devices per segment
Number of Components	1 PCB, 1 connector, 4 status LEDs
Dimensions (L x W x H)	Approx. 23 cm x 10 cm x 4 cm
Weight	Approx. 0.35 kg
Energy Storage	None (no battery or capacitor)
Operating Temperature	0°C to 60°C

Detailed Technical Analysis

The Siemens 6ES5300-5LA11 uses the SINEC L1 bus protocol for reliable communication. This module connects your central CPU to remote I/O racks. It supports cable runs as long as 100 meters between stations. Therefore, you can place I/O close to the actual field devices.

Now let us examine its power characteristics. The Siemens 6ES5300-5LA11 requires an external 24V DC power supply. It draws only 180 milliamps during normal operation. The unit contains no batteries or capacitors at all. Consequently, you never need to perform any energy storage maintenance.

The module features four front-panel status LEDs. These indicators show power, bus activity, and error conditions. The Siemens 6ES5300-5LA11 uses a standard 15-pin D-sub connector. This connector type matches many legacy Siemens communication cables.

Installation and Compatibility Notes

You mount the Siemens 6ES5300-5LA11 into any standard S5 rack slot. Connect the RS-485 cable to the 15-pin D-sub port. Use shielded twisted-pair cable for all bus connections. The module then communicates with I/O racks through the backplane automatically.

For maximum reliability, terminate both ends of the bus cable. The Siemens 6ES5300-5LA11 supports up to 32 nodes per segment. You can add repeaters to extend beyond the 100-meter limit. This flexibility suits large factory layouts with distributed control cabinets.

Practical Applications

Engineers use this module for distributed I/O in manufacturing plants. For example, you can place one S5 CPU in a central control room. Then connect multiple Siemens 6ES5300-5LA11 modules to remote racks on the factory floor. This setup reduces expensive sensor wiring across long distances.

Summary

To conclude, the Siemens 6ES5300-5LA11 connects your S5 CPU to remote I/O racks. It supports 32 nodes over 100-meter cable runs and weighs 0.35 kilograms. Choose this interface module for reliable distributed control in legacy systems.
