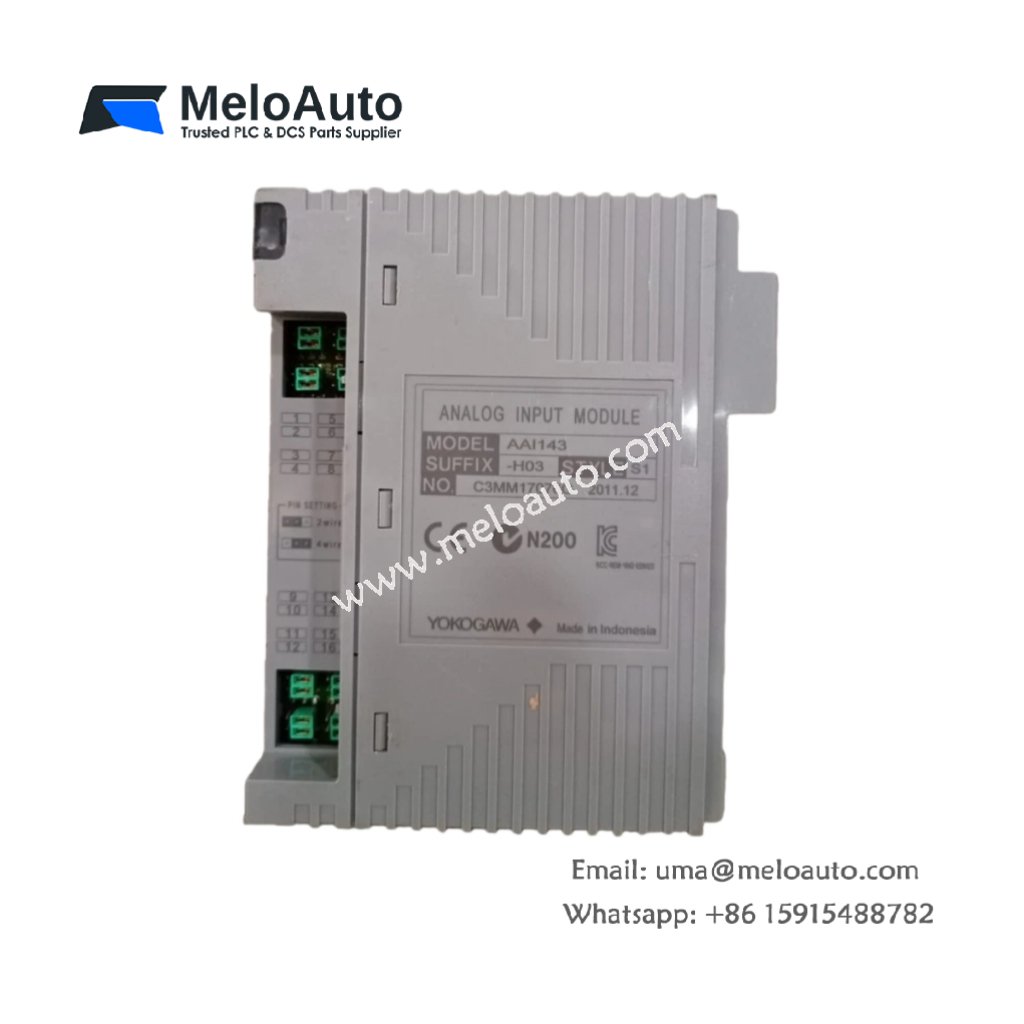

Yokogawa AAI143-H03: 16-Channel Isolated Analog Input Module

Overview

The Yokogawa AAI143-H03 is a highly efficient 16-channel analog input module designed to ensure reliable and isolated signal processing for industrial automation systems. It excels in handling precise analog signals, making it an ideal choice for applications requiring robust performance in harsh conditions. Furthermore, this module integrates seamlessly with Yokogawa’s Centum CS and Centum VP DCS platforms. It is especially effective for industries that rely on accurate and stable data transmission.

Key Features

• 16 Isolated Input Channels: With 16 isolated input channels, the AAI143-H03 provides enhanced immunity against noise and prevents ground loop issues, ensuring uninterrupted data flow.
• Wide Input Signal Range: The module supports a broad input signal range, including 4 to 22 mA, making it compatible with a variety of industrial sensors and field devices.
• High Withstanding Voltage: The module can withstand 1500V AC for 1 minute between input and system. This feature provides an added layer of protection, particularly in high-voltage environments.
• Temperature Flexibility: Operating efficiently in extreme temperatures, the module functions within a temperature range of -20°C to 70°C, making it ideal for diverse industrial conditions.
• HART Protocol Support: For advanced diagnostics and remote configuration, the module supports the HART communication protocol, allowing for easy integration with other systems.
• ISA Standard G3 Option: The module comes with the ISA Standard G3 option, which is widely accepted in industrial applications, enhancing system interoperability and compliance.

Technical Specifications

Product Model and Suffix Codes

• Model: AAI143 – Analog Input Module (4 to 22 mA, 16-channel, Isolated)
• Suffix Codes:
  • H: With digital communication (HART protocol)
  • 0: Always @
  • 3: With ISA Standard G3 option and temperature (-20°C to 70°C) option

Applications

The Yokogawa AAI143-H03 is perfect for a wide range of industrial applications. Some common use cases include:

1. Oil and Gas: The module helps in efficient monitoring and control of upstream and downstream processes.
2. Petrochemical: Ideal for chemical process control, it ensures precise data acquisition from critical sensors.
3. Power Generation: It facilitates real-time monitoring of essential power plant systems, optimizing plant performance.
4. Food and Beverage: It supports the processing and monitoring of food products, ensuring quality control.
5. Water Treatment: The module is capable of accurately measuring water quality parameters in treatment plants.

Conclusion

In summary, the Yokogawa AAI143-H03 provides high-performance 16-channel isolated analog input modules that meet the demands of complex industrial environments. Its robust design, wide operating temperature range, and HART communication support make it the ideal choice for reliable signal processing. With its added ISA Standard G3 option, the module guarantees compliance and system compatibility.
