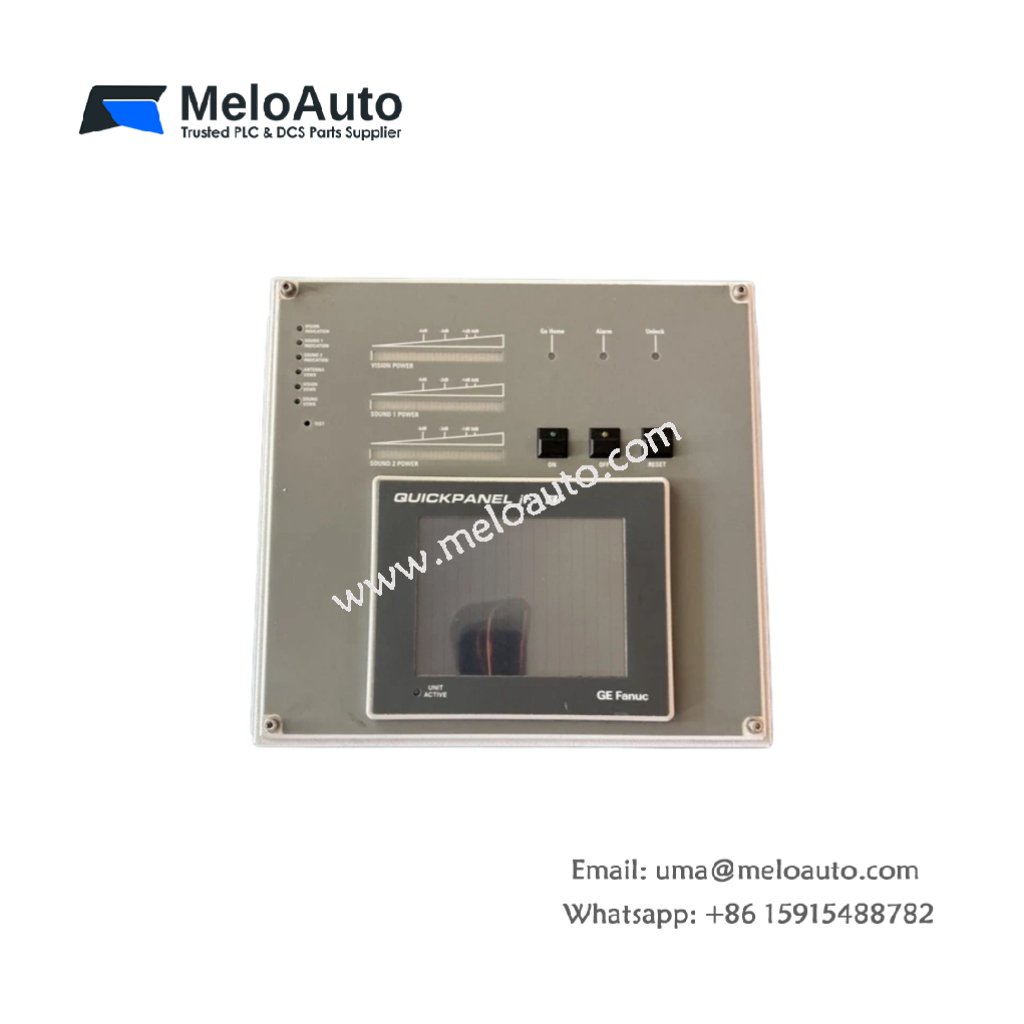

GE HMI-L2P Operator Interface

The HMI-L2P operates as a dedicated operator interface for GE automation systems. This unit displays real-time process data on its backlit LCD screen. It accepts user inputs through a membrane keypad with tactile feedback. Therefore, this HMI enables local machine monitoring and control without a computer.

Technical Specifications

We engineered this operator interface for simple yet effective machine interaction. Its compact panel-mount design fits standard cutouts on control enclosures. Moreover, the unit includes multiple communication ports for PLC connectivity.

Parameter	Specification
Dimensions (W x H x D)	7.2 x 5.7 x 1.8 inches (183 x 145 x 46 mm)
Panel Cutout (W x H)	6.8 x 5.3 inches (173 x 135 mm)
Weight	0.45 kg (1.0 lbs)
Display Type	Monochrome LCD with LED backlight
Display Size	4.5 inches diagonal (114 mm)
Resolution	240 x 64 pixels
Keypad	24-key membrane with 8 function keys
Communication Ports	2x RS-232, 1x RS-485, 1x USB
Input Voltage	24V DC nominal (18-30V DC range)
Power Consumption	8 W typical
Operating Temperature	0°C to 50°C (32°F to 122°F)

Display Characteristics and Visibility

The HMI-L2P features a high-contrast monochrome LCD for clear readability. LED backlighting ensures consistent visibility in low-light conditions. The display shows up to 12 lines of text or graphic elements simultaneously. Consequently, operators can monitor multiple process values without scrolling.

Keypad Design and User Input

This operator interface uses a durable membrane keypad with tactile response. Twenty-four keys include numeric entry and navigation controls. Eight dedicated function keys provide one-touch access to critical screens. The keypad withstands over one million actuations without failure.

Communication Capabilities

The HMI-L2P supports multiple protocols for PLC connectivity. RS-232 ports connect to GE, Allen-Bradley, and Modicon controllers directly. The RS-485 port enables multi-drop networking with up to 32 devices. Use the USB port for fast program uploads and configuration backups.

Memory and Data Storage

This operator interface includes non-volatile flash memory for screen storage. The memory retains all application pages during complete power loss. It holds up to 250 unique display screens in its internal storage. No battery backup is necessary for screen or data retention.

Energy Storage and Power Interruption

The HMI-L2P contains internal capacitors for brief power ride-through. These capacitors maintain operation for up to 50 milliseconds during voltage dips. The unit performs an orderly shutdown during extended power interruptions. No lithium battery exists on this device for data retention.

Installation and Mounting

Mount the HMI-L2P into a standard panel cutout using the included clips. Apply the supplied gasket to achieve NEMA 4X water resistance at the front. Connect the 24V DC power supply to the rear terminal block. Download your application via USB before placing the unit into service.
