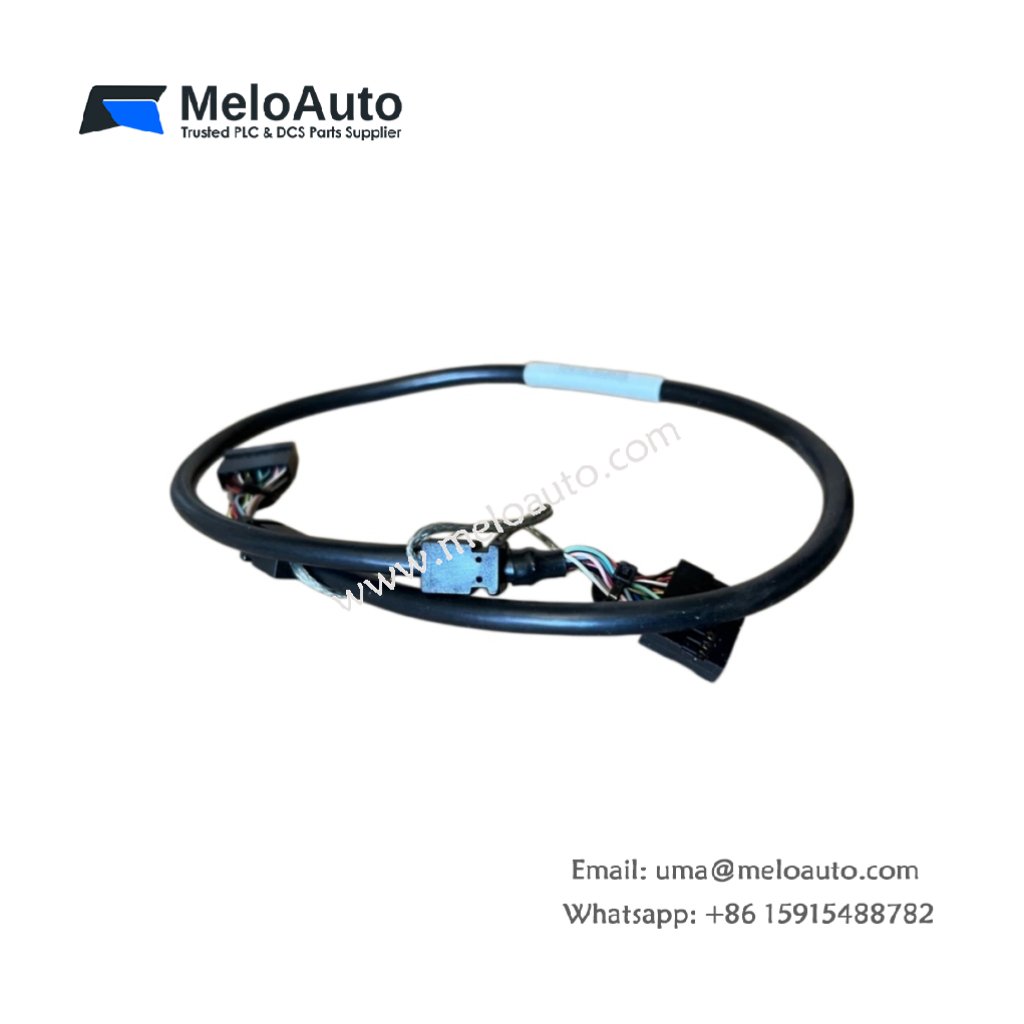

GE IC670CBL002 Expansion Cable | 2 Meter Shielded Cable

The IC670CBL002 functions as a dedicated expansion cable for GE Field Control systems. This unit connects a bus interface unit to remote I/O modules. It carries both power and communication signals between devices. Therefore, this cable enables distributed I/O architectures across your automation network.

Technical Specifications

We engineered this expansion cable for reliable signal transmission in industrial environments. Its shielded construction minimizes electromagnetic interference from nearby power cables. Moreover, the cable includes keyed connectors for foolproof installation.

Parameter	Specification
Length	2.0 meters (6.6 feet)
Cable Diameter	8.5 mm (0.33 inches)
Weight	0.23 kg (0.5 lbs)
Connector Type (End A)	20-pin female ribbon connector
Connector Type (End B)	20-pin female ribbon connector
Number of Conductors	20 discrete wires
Shielding	Foil shield with drain wire
Jacket Material	PVC (Polyvinyl Chloride)
Bend Radius (Min)	50 mm (2.0 inches)
Operating Temperature	0°C to 60°C (32°F to 140°F)
Voltage Rating	30V DC maximum
Current Rating	1.0 A per conductor

Cable Construction and Shielding

The IC670CBL002 uses a foil shield to protect signal integrity. This shield covers all 20 conductors inside the cable assembly. A drain wire simplifies shield termination at both connector ends. Consequently, this construction rejects electrical noise from nearby AC power lines.

Connector Design and Keying

This expansion cable features identical 20-pin connectors on both ends. Each connector includes a polarizing key to prevent incorrect orientation. The latches snap securely into place for vibration-resistant connections. Therefore, you cannot insert the cable incorrectly into compatible Field Control devices.

Signal and Power Distribution

The IC670CBL002 carries both data signals and DC power simultaneously. Eight conductors transmit high-speed communication between bus interface and I/O modules. Twelve conductors distribute 24V DC power to remote field devices. Thus, a single cable provides complete connectivity without separate power wiring.

Mechanical Flexibility and Routing

This expansion cable bends around corners with a minimum 50 mm radius. Its flexible PVC jacket withstands repeated flexing during maintenance activities. The cable lies flat against panels for organized wire management. Use cable ties every 300 mm to secure the cable along its route.

Installation Guidelines

Connect the IC670CBL002 to the bus interface unit output port first. Route the cable through dedicated wireways away from AC power lines. Plug the opposite end into the first I/O module’s expansion input. Do not exceed the maximum recommended bend radius during installation. Verify both connector latches click firmly into locked positions.
