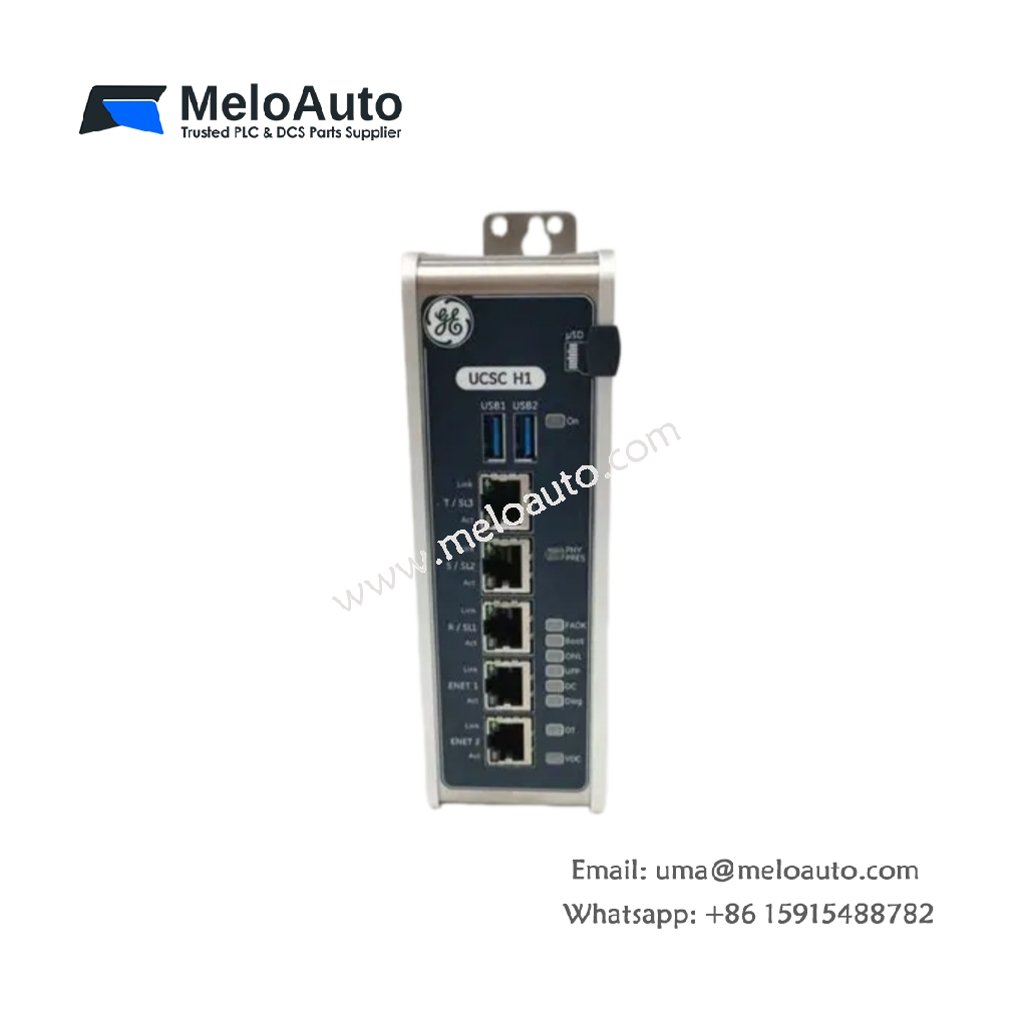

GE IS420UCSCH1B Controller Module

Product Overview

The GE IS420UCSCH1B operates as a standard controller module within the Mark VIe automation platform. This unit handles turbine sequencing, monitoring, and protection functions effectively. Its enhanced storage capacity supports more complex control strategies. We designed this module for reliable long-term service in power generation facilities.

Core Architecture and Processing Power

This controller module integrates a proven processor with expanded non-volatile memory. The GE IS420UCSCH1B runs the QNX Neutrino RTOS for deterministic real-time performance. Its memory architecture accommodates larger application programs and historical data logs. The module supports online configuration changes without restarting the control system. Furthermore, comprehensive self-monitoring routines detect and report hardware anomalies promptly.

Technical Specifications

Parameter	Specification
Processor	600 MHz Intel EP80579
Operating System	QNX Neutrino 6.5
System Memory	256 MB DDR2 SDRAM
Flash Storage	1 GB CompactFlash (industrial grade)
User Program Memory	512 MB
Ethernet Ports	5 total (4 x IONet, 1 x management)
IONet Speed	100 Mbps full-duplex
Serial Console	1 x RS-232 (RJ-45)
USB Host Ports	2 x USB 2.0
Maximum I/O Packs	48 per controller
Minimum Scan Rate	10 ms
Real-Time Clock	Battery-backed with ±5 ppm
Clock Battery	3.6 V lithium, 5 years typical
Status Indicators	Power, run, fault, Ethernet activity
Power Supply	24 V DC nominal (18–32 V DC)
Power Consumption	25.5 W peak, 15.2 W typical
Inrush Current	12 A maximum for 10 ms
Weight	1.18 kg (approximately 2.60 lbs)
Dimensions (W x H x D)	63.5 mm x 273 mm x 193 mm
Mounting	DIN rail with steel bracket
Bracket Thickness	1.5 mm
Operating Temperature	-30°C to +65°C
Storage Temperature	-40°C to +85°C
Humidity	5% to 95% non-condensing
Vibration	2 g at 10–500 Hz
Protection Class	IP20 (installed)

Key Functional Benefits

The GE IS420UCSCH1B offers expanded storage for data logging and application complexity. Its fanless cooling design eliminates moving parts that cause unplanned downtime. Consequently, maintenance teams spend less time on hardware replacement. The controller preserves all programs without an external battery, reducing lifecycle costs. Moreover, its IONet connectivity ensures deterministic communication with all connected I/O packs.

Installation and Network Configuration

You must install the GE IS420UCSCH1B on a DIN rail inside a protective cabinet. The module connects to I/O packs through the dedicated high-speed IONet network. Proper cable routing and shielding minimize electromagnetic interference effects. Additionally, you can configure the controller using GE’s ToolboxST software suite. This module integrates directly into the Mark VIe system architecture.

Environmental Durability and Standards

The GE IS420UCSCH1B meets CE, UL, and RoHS compliance requirements. Its conformal-coated PCB withstands humidity and corrosive atmospheric conditions. The controller operates without performance degradation across temperature extremes. Furthermore, the module achieves an MTBF exceeding 190,000 hours. This durability guarantees consistent performance in demanding industrial settings.
