Product Overview

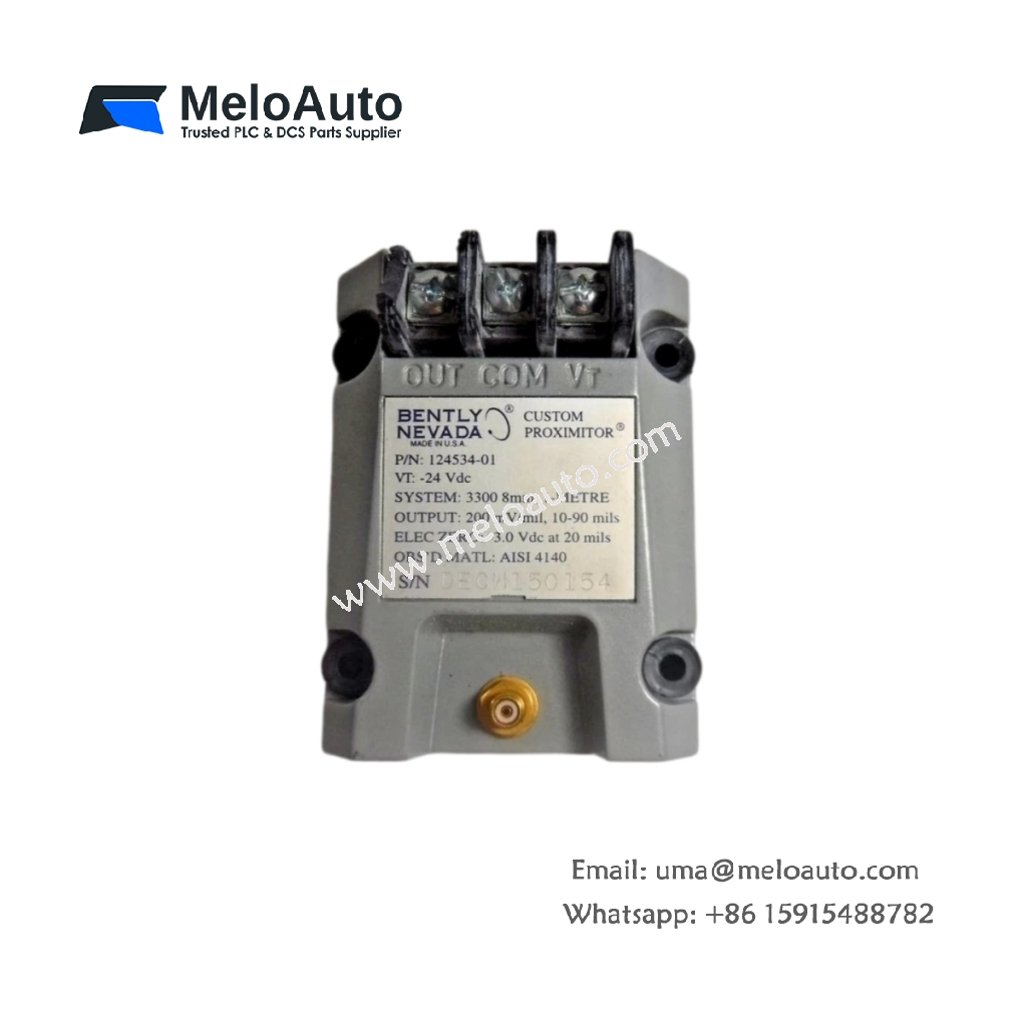

The 124534-01 operates as a Proximitor transducer module within the Bently Nevada monitoring lineup. This unit conditions signals from proximity probes into usable voltage outputs. Consequently, engineers gain accurate displacement and vibration data for turbines, compressors, and pumps.
Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Proximitor transducer module |
| Compatible Probes | 5 mm and 8 mm proximity probes |
| Output Signal | -10 V DC nominal at gap |
| Power Supply | -18 V DC to -24 V DC |
| Operating Temperature | -35°C to +85°C |
| Storage Temperature | -51°C to +100°C |
| Frequency Response | 0 to 10 kHz |
| Mounting Type | DIN rail or panel mount |
| Weight | Approximately 400 g |
| Dimensions | 120 mm × 80 mm × 30 mm |
| Housing Material | Aluminum enclosure |
| Terminal Type | Screw terminals |
| Parts Included | Module, mounting hardware, and terminal covers |
Construction and Materials
The housing uses aluminum, which shields internal electronics from electromagnetic noise. Meanwhile, screw terminals accept standard field wiring without specialized tools. The compact enclosure fits existing cabinets, so retrofits require minimal downtime.
Interface and System Compatibility
This module pairs with Bently Nevada proximity probes and matching extension cables. Additionally, its voltage output interfaces directly with monitoring systems and PLCs. Therefore, users maintain accurate displacement readings across the entire measurement chain.
Installation Guidelines
Mount the unit away from excessive heat and strong electromagnetic sources. Furthermore, route input and output wiring separately to reduce noise coupling. Correct grounding practice improves measurement stability, so follow plant standards carefully.
