Product Overview

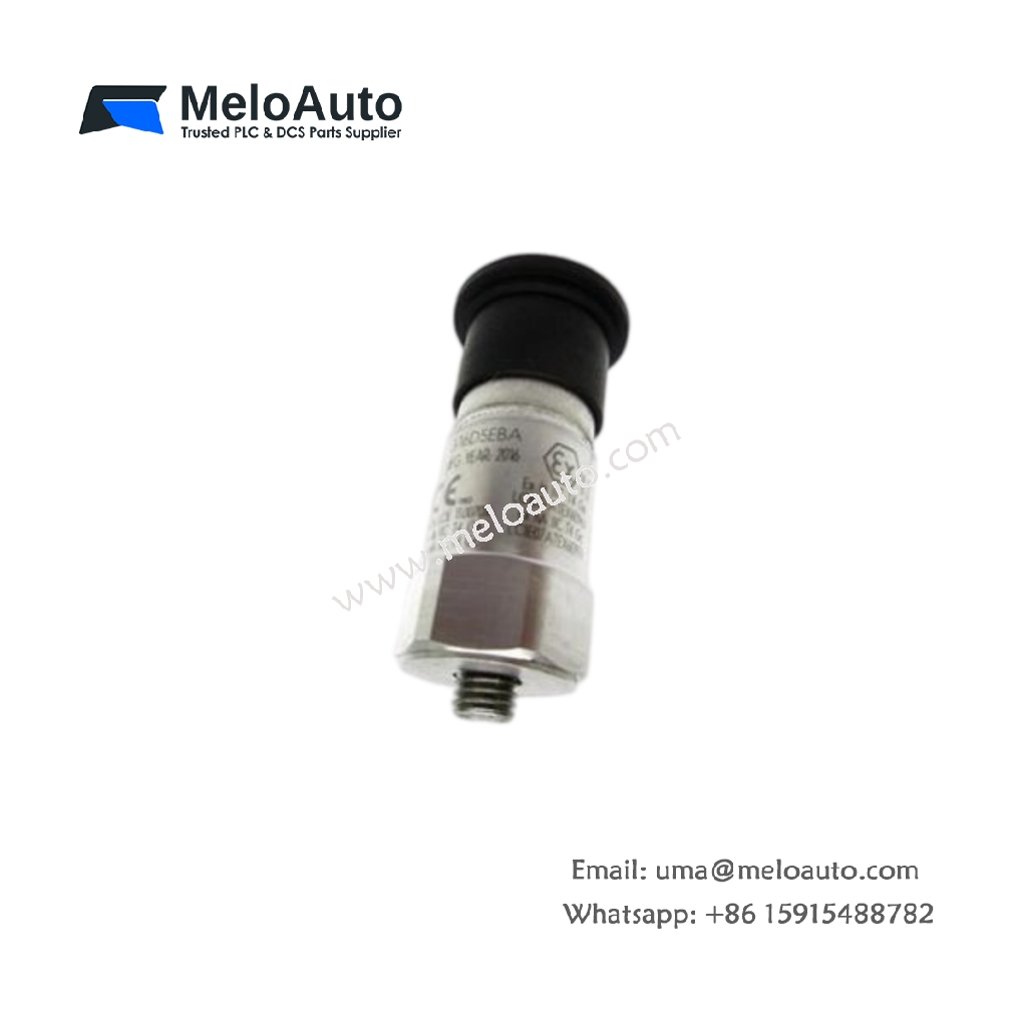

The 200350-02-00-CN operates as an accelerometer within the Bently Nevada monitoring lineup. This unit measures casing vibration on rotating machinery across a broad frequency band. Consequently, engineers gain dependable acceleration data for compressors, motors, and balance-of-plant equipment.
Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Accelerometer |
| Sensitivity | 100 mV/g nominal |
| Frequency Response | 1 Hz to 10 kHz |
| Amplitude Range | 0 to 50 g peak |
| Power Supply | 24 V DC nominal |
| Operating Temperature | -35°C to +120°C |
| Storage Temperature | -40°C to +125°C |
| Mounting Type | Stud or adhesive mount |
| Weight | Approximately 120 g |
| Dimensions | 30 mm diameter × 45 mm height |
| Housing Material | Stainless steel |
| Connector Type | 2-pin MIL-style connector |
| Output Signal | Acceleration proportional voltage |
Construction and Materials
The housing uses stainless steel, which resists corrosion and mechanical shock. Meanwhile, the internal piezo element converts motion into a stable acceleration signal. The compact stud mount fits standard machine surfaces, so installation requires minimal downtime.
Interface and System Compatibility
This accelerometer pairs with Bently Nevada monitors and vibration transmitters. Additionally, its voltage output interfaces directly with data acquisition systems. Therefore, users integrate casing vibration data into existing monitoring platforms easily.
Installation Guidelines
Mount the sensor on a flat, clean surface to ensure solid mechanical coupling. Furthermore, route the cable away from high-voltage wiring to reduce interference. Correct grounding practice improves measurement stability, so follow plant standards carefully.
