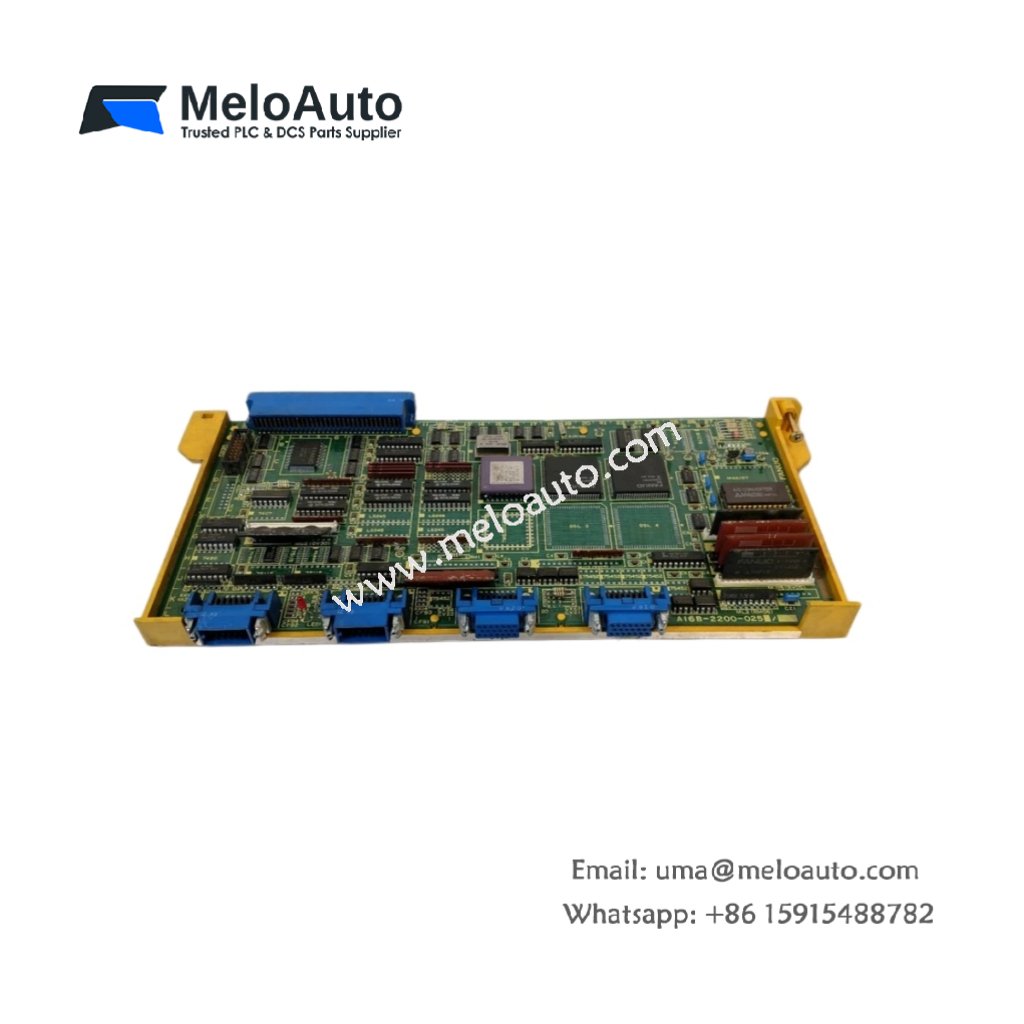

GE A16B-2200-0252/05C Axis Board

Technical Specifications and Board Architecture

This axis control board manages servo positioning for multiple axes in CNC systems. The GE A16B-2200-0252/05C processes closed-loop feedback with high precision. You will find this card inside the main rack of GE Fanuc machining centers. Its multi-layer PCB design ensures reliable signal integrity at high speeds. The board weighs approximately 0.54 kilograms. Its dimensions measure 29 cm in length, 18 cm in width, and 2.5 cm in height.

Parameter	Specification
Brand	GE Fanuc Automation
Model	A16B-2200-0252/05C
Category	Axis Control Board / Servo Motion Controller
Weight	0.54 kg
Length	29 cm
Width	18 cm
Height	2.5 cm
Number of Control Axes	3 axes (simultaneous)
Number of Connectors	4 x 50-pin headers + 2 x 34-pin flat cables
Interface Type	Backplane bus + differential encoder inputs
Component Count	15 custom ASICs, 72 logic ICs, 95 capacitors
Memory ICs	6 x 64 KB SRAM, 3 x 256 KB flash ROM
Energy Storage	Local decoupling capacitors (no battery)
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C to 70°C

Processing Capabilities and Axis Control

The board carries multiple custom LSI chips for real-time three-axis control. Each chip handles position loops, velocity loops, and current regulation. You can identify revision /05C printed near the main edge connector. This revision includes enhanced firmware and improved component layout. The board uses six-layer PCB construction for optimal signal separation. Consequently, it processes high-frequency encoder inputs without cross-talk interference. Gold-plated edge contacts provide reliable connection to the backplane bus.

Feedback and Communication Interfaces

The axis control board accepts differential encoder signals from three servo motors. Each encoder channel supports up to 500 kHz input frequency for precise positioning. The board also connects to external CNC operator panels through ribbon cables. You will find dedicated test points for analog velocity command outputs. These test points allow oscilloscope verification of each axis loop performance. The GE A16B-2200-0252/05C communicates with the main CPU over a high-speed backplane. It also sends torque commands to three external servo amplifier units.

Installation and Operational Guidelines

You must install this board into a dedicated slot within the CNC main rack. The backplane provides 5V and 12V DC power to the board. The board draws approximately 950 mA from the 5V supply. It stores no user data or axis parameters independently. Therefore, the CNC controller retains all tuning values in separate non-volatile memory. You should inspect the gold edge connector for dirt or oxidation regularly. Clean it with isopropyl alcohol and a soft lint-free cloth only.
