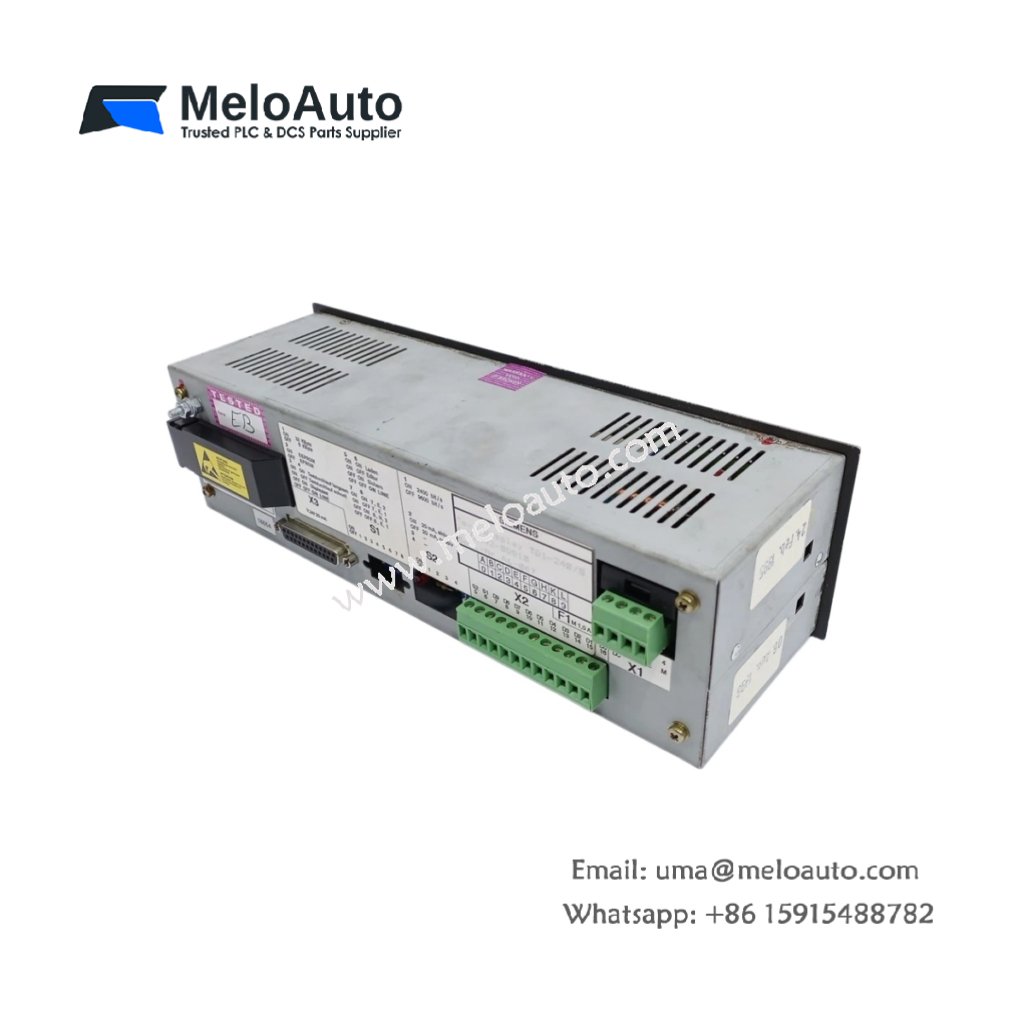

Siemens 6AV1142-0DB10 Text Display

The Siemens 6AV1142-0DB10 text display provides operator interface functions for SIMATIC S5 systems. This device shows machine status, alarms, and production data on a backlit screen. It connects directly to the AS511 interface of S5 CPUs. You can use this display as a direct replacement for older OP units.

Detailed Technical Specifications

The Siemens 6AV1142-0DB10 text display measures 138 mm in width. Its height reaches 68 mm across the front panel. The total depth goes up to 38 mm including the rear connector. This unit weighs approximately 0.35 kilograms for panel mounting.

Key hardware parameters include:

Complete Model: Siemens 6AV1142-0DB10
Display type: LCD with green LED backlight
Character format: 2 lines x 20 characters per line
Character height: 5 mm for easy reading
Keypad: 8 tactile membrane keys
Interface: AS511 serial (TTL level)
Connection: 9-pin SUB-D male connector
Power supply: 24 V DC nominal (18-30 V range)
Power consumption: 3 W maximum
Memory capacity: 4 KB for message storage

The Siemens 6AV1142-0DB10 text display stores up to 100 user-defined messages. Therefore, operators can view pre-programmed text instead of raw data values. The display operates reliably from 0°C to +50°C. Moreover, it includes contrast adjustment via a rear potentiometer.

Technical Parameter	Specification
Full Model Number	Siemens 6AV1142-0DB10
Display Type	LCD, green LED backlit
Display Format	2 lines x 20 characters
Character Height	5 mm
Keypad	8 tactile membrane keys
Interface	AS511 serial (TTL)
Connector	9-pin SUB-D male
Power Supply	24 V DC (18-30 V)
Power Consumption	3 W max
Message Memory	4 KB (100 messages)
Dimensions (WxHxD)	138 mm x 68 mm x 38 mm
Weight	0.35 kg
Operating Temperature	0°C to +50°C
Protection Rating	IP40 front panel

Application and Installation

The Siemens 6AV1142-0DB10 text display mounts into a standard 138 mm x 68 mm panel cutout. It requires a 4-core cable for connection to the CPU. This display shows numeric values from timers, counters, and data words. Consequently, you can monitor key production metrics without a programming device.

Programming and Operation

This display uses simple text editors for message configuration. The Siemens 6AV1142-0DB10 stores messages in non-volatile EEPROM memory. Therefore, your text remains safe even during long power outages. Operators can acknowledge alarms using the built-in function keys.

Always power down the CPU before connecting or disconnecting this display. Match the interface cable wiring to the pinout diagram carefully. The unit features a removable terminal block for power wiring. Furthermore, its membrane keypad resists dust and light splashes.
