GE IC752DSX000-DC Display Panel | Operator Interface

Technical Specifications and Display Characteristics

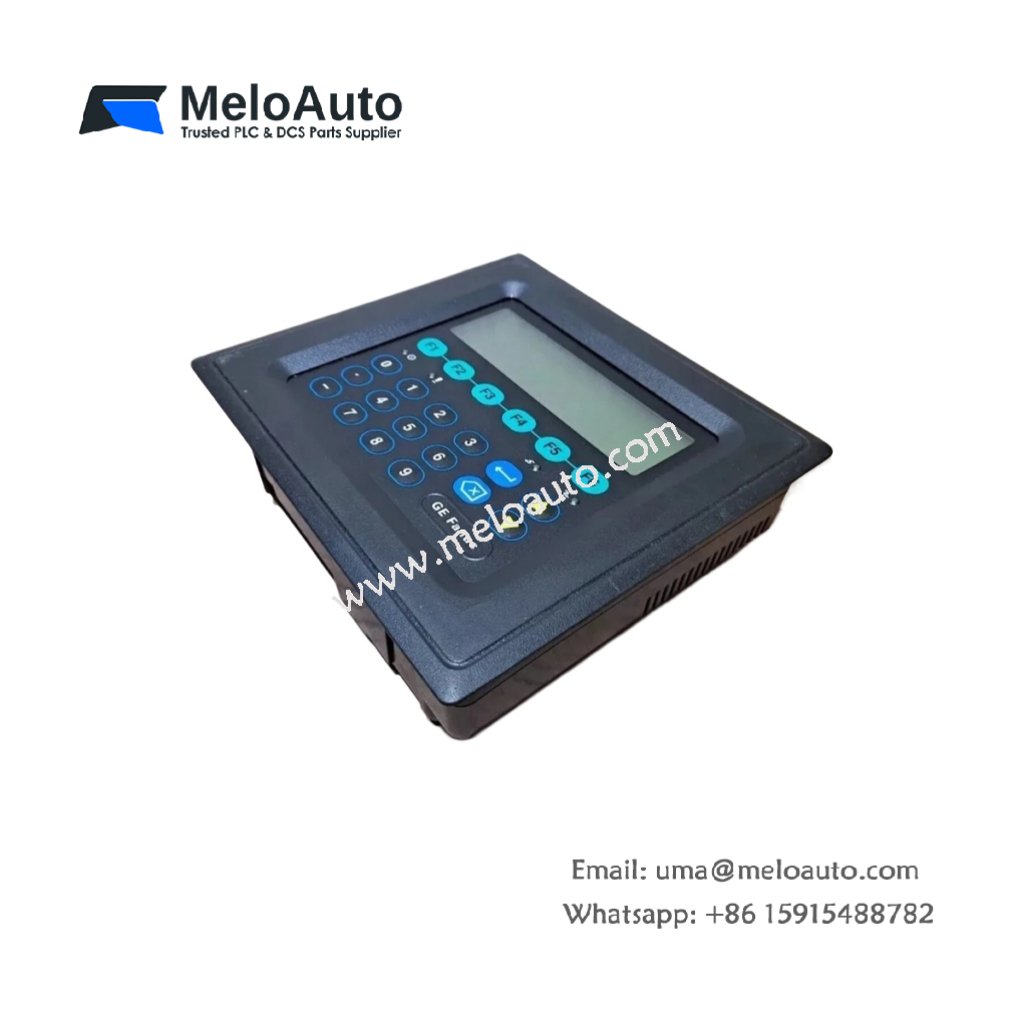

This display screen panel serves as a local operator interface for GE control systems. The GE IC752DSX000-DC provides real-time process monitoring and data entry capabilities. You can mount this unit on a machine enclosure or an operator console. Its flat-panel design saves valuable space on crowded factory floors. The unit weighs approximately 2.4 kilograms. Its dimensions measure 24 cm in height, 30 cm in width, and 6 cm in depth.

Parameter	Specification
Brand	GE Fanuc Automation
Model	IC752DSX000-DC
Category	Display Screen Panel / Operator Interface Terminal
Weight	2.4 kg
Height	24 cm
Width	30 cm
Depth	6 cm
Display Type	Monochrome LCD with backlight
Display Resolution	320 x 240 pixels (QVGA)
Active Display Area	11.5 cm x 8.5 cm
Backlight Type	CCFL (cold cathode fluorescent)
Number of Function Keys	12 membrane keys
Communication Ports	RS-232, RS-422, RS-485
Communication Speed	300 to 19.2 Kbps
Energy Storage	None (no internal battery)
Component Count	LCD panel, backlight inverter, membrane keypad, controller PCB

Interface Design and User Controls

The panel features twelve programmable function keys for custom applications. Each key provides tactile feedback for confident operator input. The GE IC752DSX000-DC includes both numeric and navigation keypad sections. A bright CCFL backlight illuminates the display for easy viewing. This backlight operates continuously whenever the panel receives power. The monochrome LCD shows crisp text and graphic elements effectively. You can adjust the contrast level using a potentiometer on the rear panel.

Communication and System Integration

You connect this display panel to a PLC or CNC via any serial port. The module supports RS-232, RS-422, and RS-485 communication standards. A D-sub 9-pin connector provides the physical interface to the host controller. The GE IC752DSX000-DC draws its operating power from an external 24V DC supply. It requires no internal battery for configuration or data retention. Therefore, all screen settings and application pages reside in the host controller. The panel acts purely as a display and input device.

Installation and Environmental Guidelines

You must mount this panel in a dry, dust-free location away from coolant sprays. The unit carries an IP65 rating for the front face only. This rating protects against water jets and dust ingress. You should use shielded serial cables for communication runs over 15 meters. Long unshielded cables will pick up industrial electrical noise. The CCFL backlight has an average life of approximately 50,000 hours. You will notice gradual dimming as the lamp approaches end of life.
