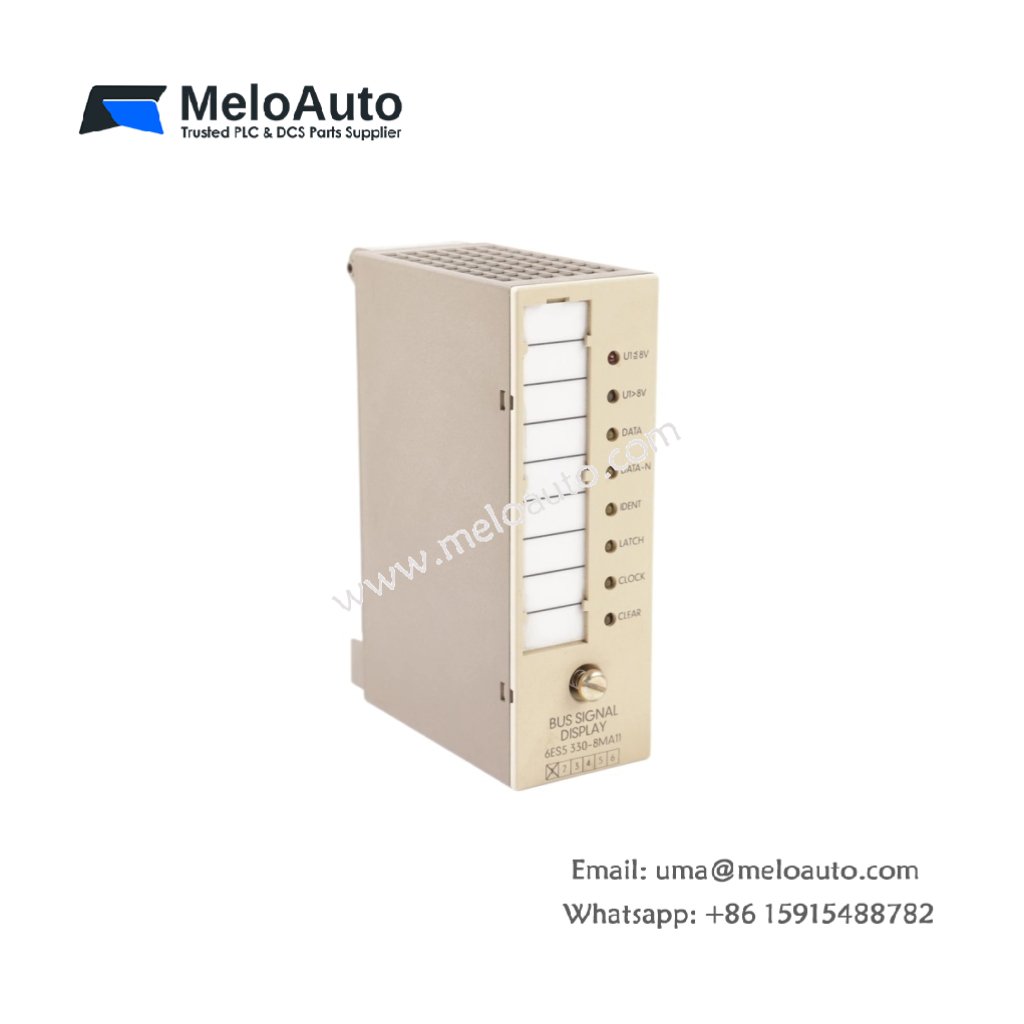

Siemens 6ES5330-8MA11 Diagnostic Module

The 6ES5330-8MA11 monitors system status for SIMATIC S5 automation systems. This module detects and reports hardware faults and communication errors. Its rectangular frame measures 232 millimeters in width. The module height reaches 210 millimeters exactly. Depth stays at 155 millimeters. You will find this unit weighs approximately 0.88 kilograms. Therefore, installation requires sliding the module into a standard S5 rack slot. One 20-pin front connector handles all diagnostic wiring connections.

Physical Layout and Connectors

The front connector accepts wires up to 16 AWG gauge. A green LED indicates power present on the module. Six status LEDs show diagnostic conditions for different system areas. Two guide rails secure the module firmly in the rack. You can remove the front connector without disconnecting the module from the backplane.

Technical Specifications

Parameter	Specification
Module Width	232 mm
Module Height	210 mm
Module Depth	155 mm
Unit Weight	0.88 kg
Diagnostic Channels	16
Front Connector	1 x 20-pin (16 AWG)
Component Total	248 discrete parts
Fault Memory	256 events
Time Stamp Resolution	1 ms
Reporting Modes	Local LED, backplane interrupt
Internal Energy Storage	680 µF capacitor bank
Isolation Voltage	1500V
Operating Temperature	0°C to +55°C

Internal Design and Energy Storage

The 6ES5330-8MA11 contains exactly 248 discrete components onboard. A 680 microfarad capacitor bank filters noise from the internal power supply. A dedicated processor manages fault detection and logging. The module includes sixteen diagnostic input channels. Non-volatile memory stores fault events without battery backup. LED indicators show current diagnostic status clearly.

Operational Performance

This diagnostic module monitors voltage levels and signal integrity. It detects short circuits and wire breaks on connected field devices. Moreover, the unit logs fault events with precise time stamps. You can read diagnostic data through the PLC backplane. The module triggers interrupts when threshold conditions occur. Six LEDs show diagnostic status for different system areas. Consequently, you achieve rapid fault identification for S5 systems. Siemens designed this module for predictive maintenance applications. Its comprehensive monitoring reduces system downtime.

In summary, the 6ES5330-8MA11 delivers reliable diagnostic functionality. Use this module for system monitoring and fault detection. It helps you identify problems before they cause failures. Order this diagnostic module for your Siemens SIMATIC S5 system.
