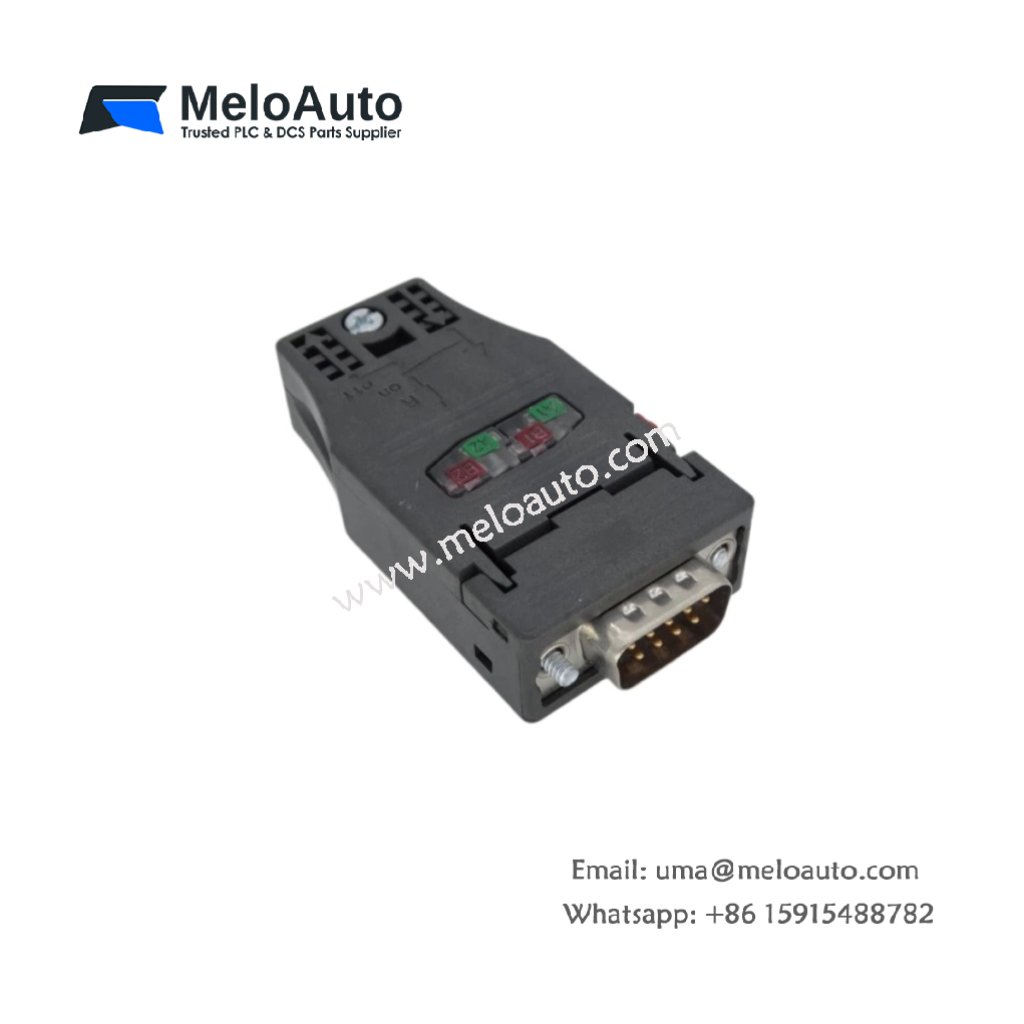

Siemens 6GK1500-0FC10 PROFIBUS Connector

The 6GK1500-0FC10 serves as a PROFIBUS connector for Siemens automation networks. This unit connects PROFIBUS devices to the RS-485 bus cable. Its rectangular frame measures 65 millimeters in width. The connector height reaches 40 millimeters exactly. Depth stays at 22 millimeters. You will find this unit weighs approximately 0.05 kilograms. Therefore, installation requires plugging the connector into a PROFIBUS device port. One 9-pin D-sub male connector provides the device interface.

Physical Layout and Connectors

The connector features a 9-pin D-sub male plug for device connection. Two screw terminals accept the incoming and outgoing PROFIBUS cable. A built-in terminating resistor switch enables end-of-line termination. Four LEDs indicate bus activity and power status. Two strain relief clamps secure the cable firmly to the connector body.

Technical Specifications

Parameter	Specification
Connector Width	65 mm
Connector Height	40 mm
Connector Depth	22 mm
Unit Weight	0.05 kg
Device Interface	9-pin D-sub male
Cable Connection	2 x screw terminals
Terminating Resistor	Built-in, switchable
Transmission Rate	9.6 kbps to 12 Mbps
Cable Type	PROFIBUS (2-wire, shielded)
Component Total	18 discrete parts
Internal Energy Storage	None (0 µF)
Contact Material	Gold-plated copper
Operating Temperature	-20°C to +60°C

Internal Design and Construction

The 6GK1500-0FC10 contains exactly 18 discrete components inside. A simple PCB routes the screw terminals to the D-sub pins. The built-in switch connects or disconnects the terminating resistor. Gold-plated contacts ensure reliable signal transmission over time. The connector uses no active electronic components or energy storage. The plastic housing meets UL 94 V-0 flammability rating.

Operational Performance

This PROFIBUS connector attaches directly to any PROFIBUS DP device. It connects the incoming and outgoing bus cables in a daisy chain. Moreover, the unit includes a switchable terminating resistor for end nodes. You can install this connector on PLCs, drives, and HMIs. The screw terminals accept solid or stranded wires without soldering. Four signal LEDs show bus activity for troubleshooting. Consequently, you achieve reliable PROFIBUS network connections. Siemens designed this connector for industrial automation networks. Its rugged construction resists vibration and mechanical shock.

In summary, the 6GK1500-0FC10 delivers reliable PROFIBUS connectivity. Use this connector for device connections in PROFIBUS networks. It simplifies cabling with built-in termination switching. Order this PROFIBUS connector for your Siemens automation system.
