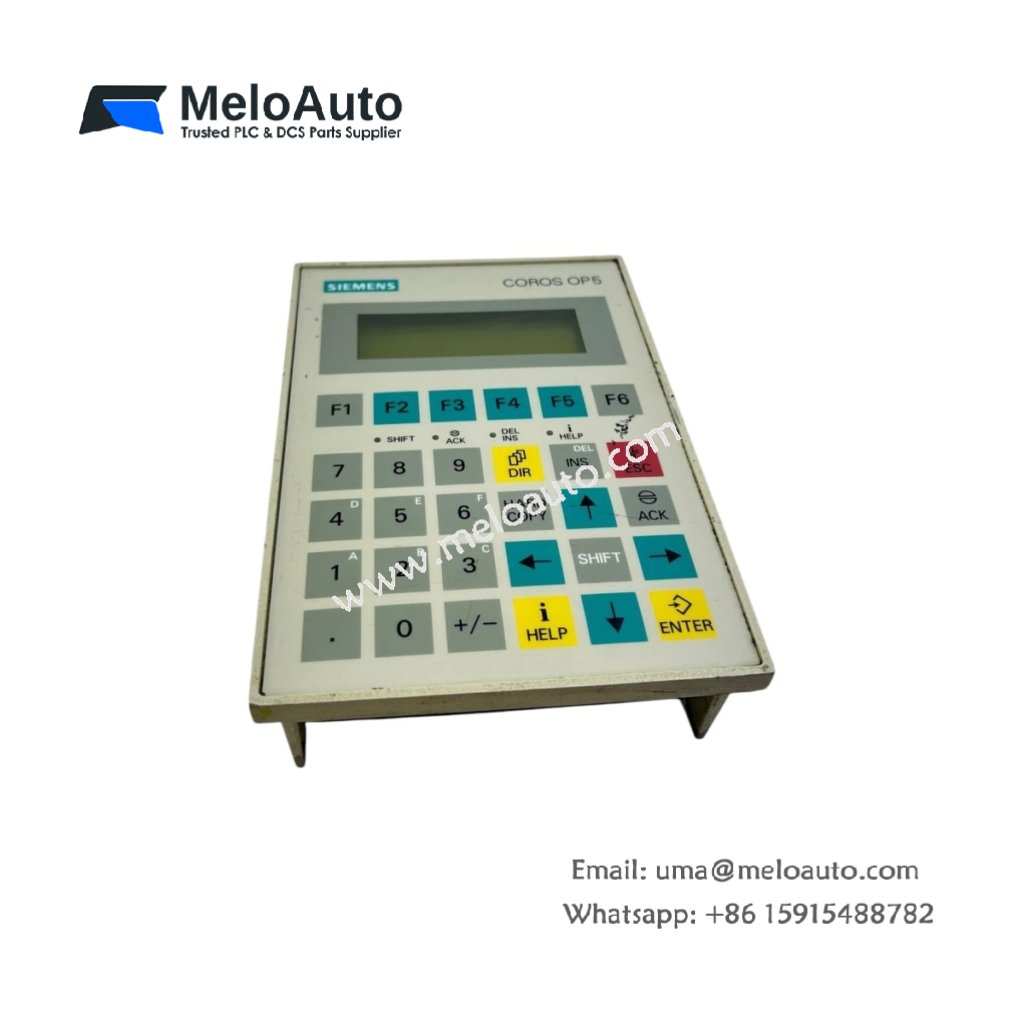

The Siemens 6AV3505-1FB00 provides a graphical user interface for SIMATIC S5 systems. You can mount this panel into a standard 19-inch control cabinet cutout. It displays machine status and process variables in real time. This operator panel accepts user commands through tactile membrane keys.
Technical Specifications and Hardware Configuration
This operator panel measures 185 mm in height. Its width reaches 290 mm, and the depth equals 72 mm. The Siemens 6AV3505-1FB00 weighs approximately 1.8 kilograms. A single internal PCB holds all display and processing circuits. The module contains no energy storage capacitors or batteries. One 25-pin D-sub connector provides the serial interface to the PLC. A separate 5-pin terminal block accepts 24 V DC power input. The front face includes a 7-inch monochrome LCD display.
| Parameter | Specification |
|---|---|
| Model | Siemens 6AV3505-1FB00 |
| Category | Operator Panel |
| Dimensions (H x W x D) | 185 mm x 290 mm x 72 mm |
| Weight | 1.8 kg |
| Internal PCBs | 1 |
| Energy Storage | None |
| Display Size | 7 inches (monochrome) |
| PLC Interface | 25-pin D-sub (serial) |
| Power Input | 5-pin terminal block (24 V DC) |
| Operator Controls | 40 membrane keys |
Display and User Interface Features
The Siemens 6AV3505-1FB00 features a 7-inch monochrome LCD with 640 x 480 resolution. This screen shows 16 lines of text or graphical elements clearly. Below the display, you will find 40 tactile membrane keys. These keys include numeric input, function shortcuts, and navigation arrows. Consequently, operators can enter data and navigate menus quickly. The panel provides configurable function keys for machine-specific commands. A contrast potentiometer on the rear allows display adjustment.
Installation and Communication Guidelines
You must mount this panel using four M5 screws through the front bezel. Transitioning to wiring, use shielded serial cables for interference-free communication. The panel supports data rates from 1200 to 9600 baud. A DIP switch block sets the communication parameters easily. Two LEDs indicate power status and data exchange activity. The operating temperature range spans from 0°C to 45°C reliably.
