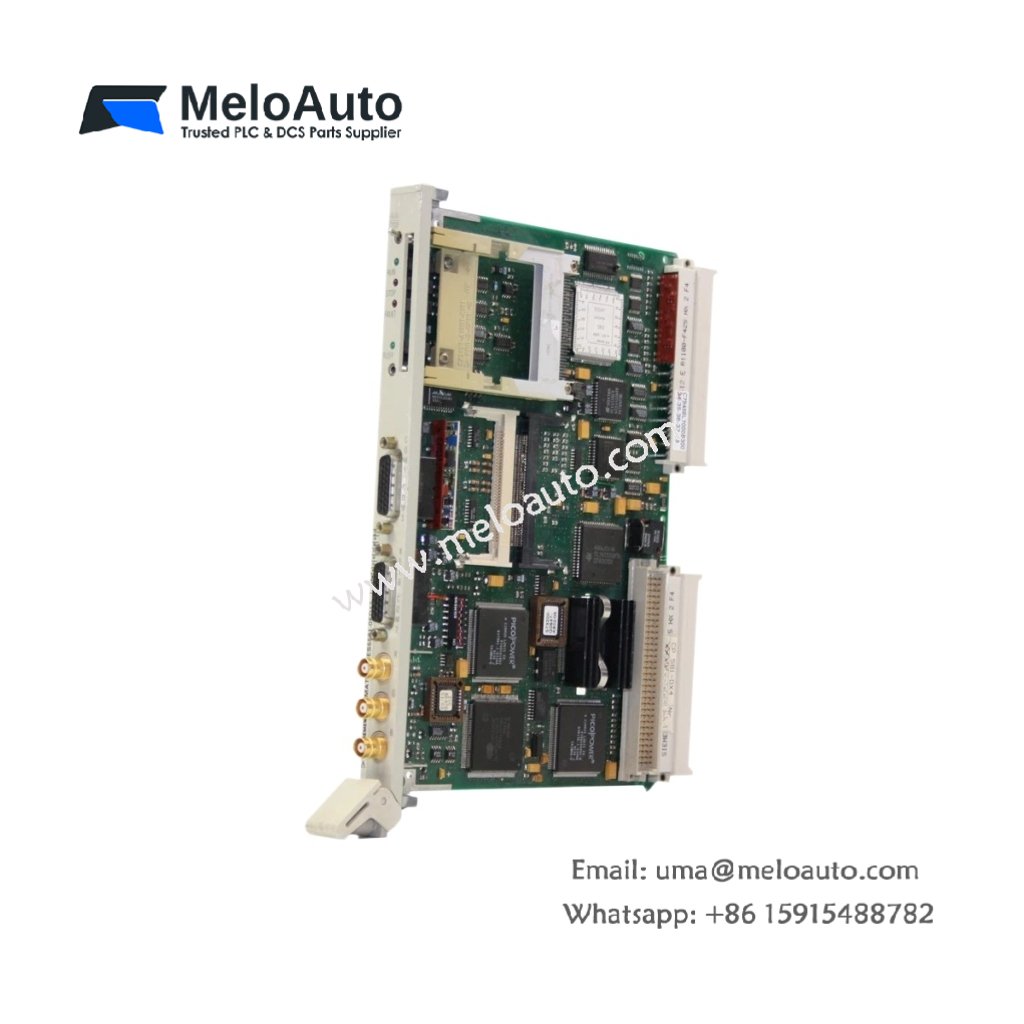

Siemens 6ES5581-0ED12 Communications Processor for SIMATIC S5

The Siemens 6ES5581-0ED12 handles data exchange between SIMATIC S5 PLCs and field networks. You can install this module into any standard S5 rack slot. It connects industrial devices using the Profibus DP protocol. This processor suits distributed I/O and drive control applications.

Technical Specifications and Hardware Layout

This communications processor measures 233 mm in height. Its width reaches 36 mm, and the depth equals 182 mm. The Siemens 6ES5581-0ED12 weighs approximately 0.42 kilograms. A single internal PCB holds all communication and isolation circuits. The module contains no energy storage capacitors or batteries. One 9-pin D-sub connector provides the Profibus DP interface. A 48-pin edge connector interfaces directly with the S5 backplane. Three status LEDs indicate network activity and processor health.

Communication Performance and Addressing

The Siemens 6ES5581-0ED12 supports baud rates from 9.6 kbit/s to 1.5 Mbit/s. It operates as a Profibus DP master on the network. This processor handles up to 64 slave devices on a single bus segment. You can set the station address using a DIP switch block. Valid addresses range from 1 to 126 for flexible network integration. Consequently, this module manages medium-sized distributed control systems. Galvanic isolation separates the fieldbus side from the backplane logic.

Installation and Diagnostic Features

You must insert this module into any standard S5 rack slot. Transitioning to wiring, use shielded twisted-pair Profibus cables with proper termination. The module includes two LEDs for bus communication diagnostics. A watchdog timer monitors processor operation every 100 milliseconds. The operating temperature range spans from 0°C to 60°C reliably.
