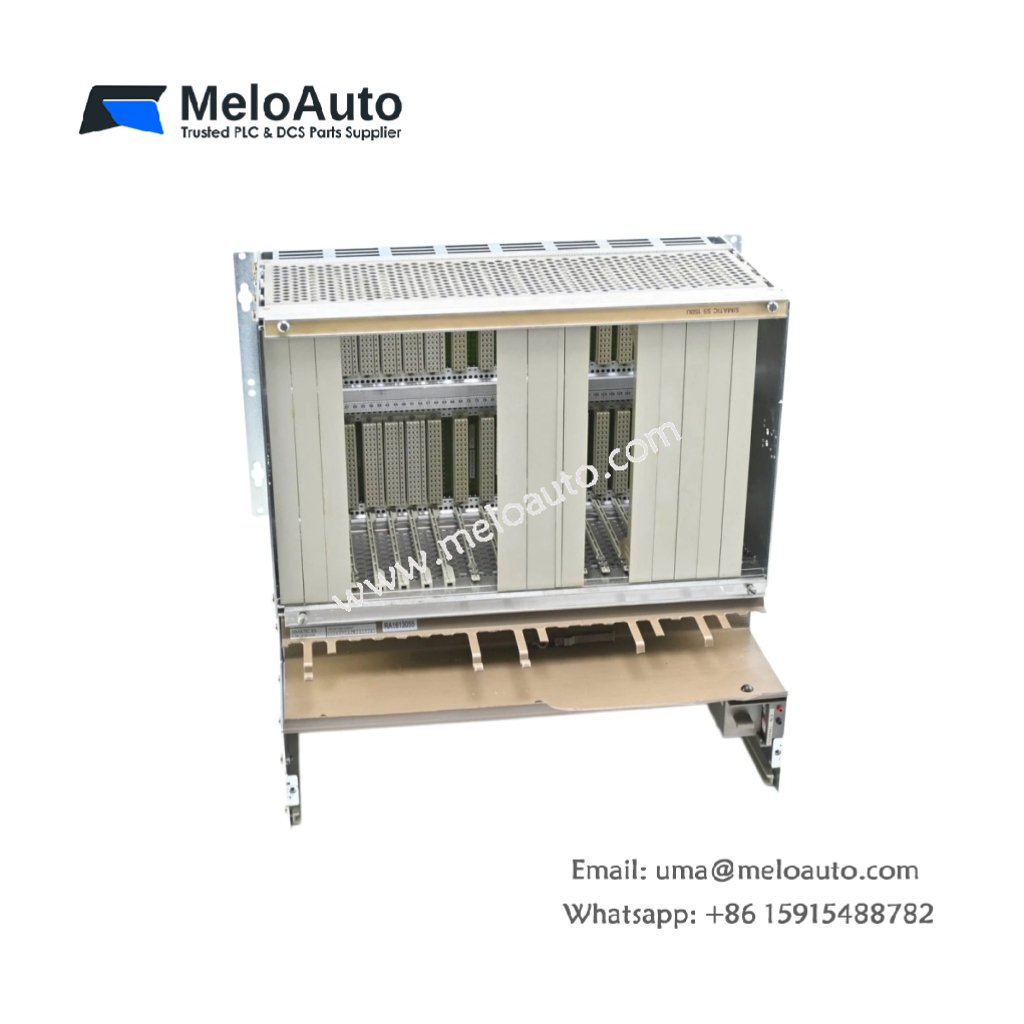

The 6ES5150-3SU61 mounting rack served as the physical backbone for SIMATIC S5-150U automation systems. This rack provided mechanical support and electrical interconnection for multiple modules. Its integrated backplane bus handled both power distribution and high-speed signal communication. Siemens has now discontinued this product, but many facilities still operate these systems today.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model Number | 6ES5150-3SU61 |
| Product Type | Mounting Rack |
| Series | SIMATIC S5-150U |
| Backplane Bus | Integrated for power and signal distribution |
| Mounting Style | 19-inch rack or panel mounting |
| Module Slots | Accommodates S5-150U CPU, I/O, and communication modules |
| Material | Steel with protective coating |
| Dimensions (approx.) | 19-inch standard width |
| Status | Discontinued |
Backplane Architecture and Signal Integrity
The built-in backplane bus supplied voltage to all inserted modules efficiently. This bus also provided the data pathways between the CPU and connected peripherals. Consequently, the design reduced the need for extensive internal wiring. The backplane maintained signal integrity even with multiple high-speed modules.
Installation and System Integration
This rack accommodated the full range of S5-150U modules, including CPUs and communication processors. Users mounted it in standard 19-inch cabinets. The rack’s robust construction ensured stable operation in demanding industrial environments. Clear slot labeling helped technicians identify module positions quickly.
Legacy Application Support and Availability
Many industrial plants continue to rely on S5-150U systems for critical processes. Therefore, replacement racks may still be available through specialized distributors. Engineers should consider migration strategies or source tested used units. Checking with Siemens directly about remaining stock sometimes yields positive results.
Maintenance and Replacement Considerations
Regular inspection of the backplane contacts prevents intermittent connection issues. Cleaning the module connectors ensures reliable signal transmission over time. When replacing this rack, verify that the new unit matches the original specifications. Some suppliers offer refurbished units with warranty for legacy support.
