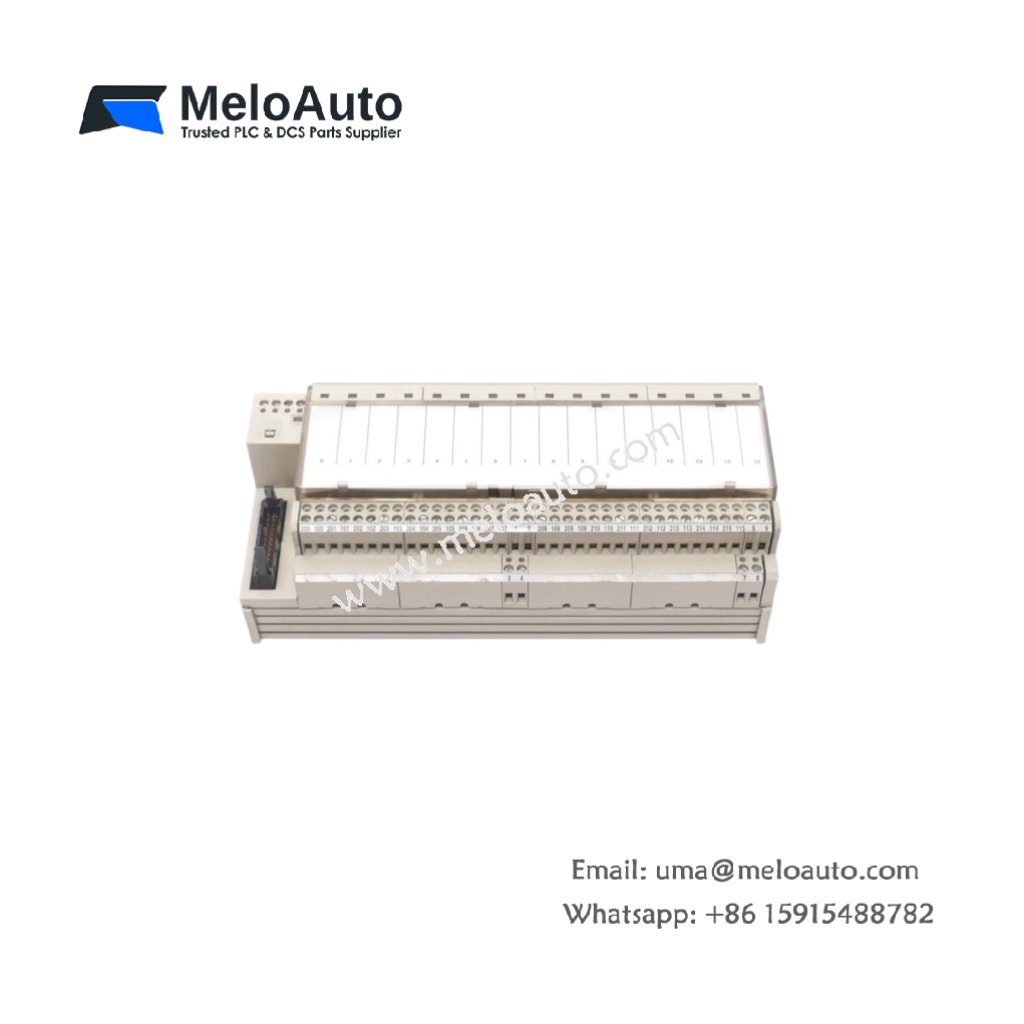

Schneider ABE7P16T210 I/O Module Rack for Modicon Systems

The Schneider ABE7P16T210 provides a compact mounting base for discrete I/O modules. You can mount this rack onto a DIN rail inside the control cabinet. It houses up to sixteen I/O modules for signal conditioning and interface tasks. This rack suits Telefast quick-wiring systems for factory automation.

Technical Specifications and Hardware Layout

The Schneider ABE7P16T210 measures 90 mm in height. Its width reaches 210 mm, and the depth equals 55 mm. The Schneider ABE7P16T210 weighs approximately 0.48 kilograms. The rack includes a passive backplane with sixteen module slots. It contains no active electronic components or energy storage devices. One 50-pin connector provides the interface to the PLC or controller. Three terminal blocks supply 24 V DC power to the mounted modules. The rack requires no internal battery or capacitor maintenance.

Expansion Capabilities and Compatibility

The Schneider ABE7P16T210 supports all Telefast ABE7 discrete I/O modules. It works with input, output, and relay modules without restrictions. You can mix different module types within the same rack. Consequently, this flexibility optimizes I/O configuration for specific applications. The rack automatically connects each module to the PLC interface. Each slot provides standard Telefast backplane signals for seamless integration. The rack requires an external 24 V DC power supply for all connected modules.

Installation and Practical Guidelines

You must mount the Schneider ABE7P16T210 on a DIN rail using the integral clips. Transitioning to wiring, connect the PLC interface cable to the 50-pin connector. Provide separate 24 V DC power to the rack terminal blocks. Ensure proper grounding to avoid noise coupling into the backplane. The rack requires 25 mm of free space above and below for cooling. The operating temperature range spans from -20°C to +60°C reliably.
