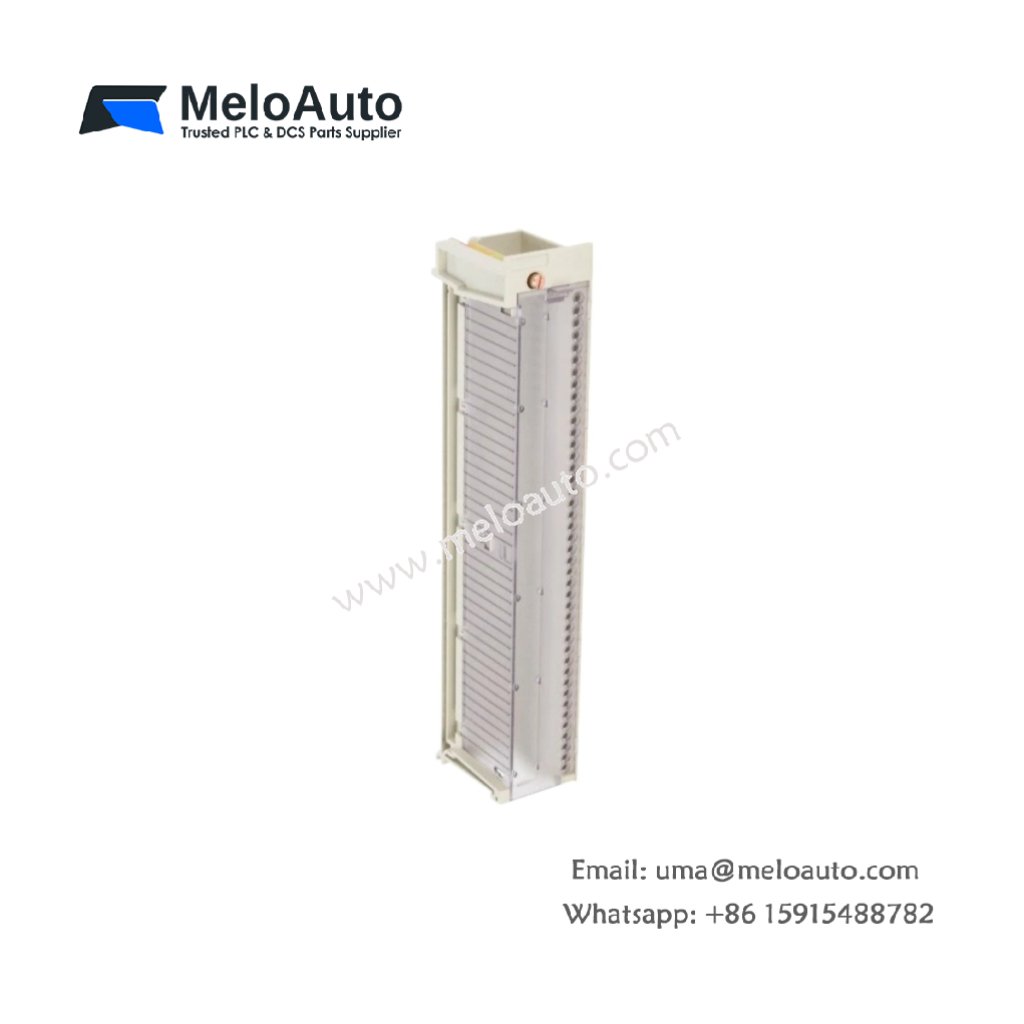

Siemens 6ES5497-4UB12 | SIMATIC S5 20-Pole Frontal

The Siemens 6ES5497-4UB12 serves as a reliable frontal connector for SIMATIC S5 I/O modules. This screw-type connector establishes secure wiring between field devices and your PLC system. It features 20 poles for transmitting digital and analog signals efficiently. You can use this connector with various S5 modules including digital input and output cards. Consequently, this component simplifies field wiring and maintenance tasks significantly.

Technical Specifications Overview

Parameter	Detailed Specification
Model	Siemens 6ES5497-4UB12
Category	SIMATIC S5 Frontal Connector (Screw Type)
Number of Poles	20
Connector Type	Screw terminal (front-facing)
Compatibility	SIMATIC S5 I/O modules with 20-pin interfaces
Dimensions (approx.)	70 mm x 40 mm x 25 mm
Weight	0.08 kg (80 grams)
Wire Gauge Range	0.25 mm² to 1.5 mm² (AWG 24 to AWG 16)
Rated Voltage	250V AC/DC
Rated Current	2 A per terminal
Operating Temperature	0°C to 60°C

Functional Features and Design Advantages

The Siemens 6ES5497-4UB12 uses durable screw terminals for vibration-resistant connections. You can attach or detach this connector without rewiring the field cables. This feature saves tremendous time during module replacement or system upgrades. The frontal design provides easy access to all terminals for troubleshooting.

Each terminal accepts solid or stranded wires securely. The connector housing uses high-grade insulating material for electrical safety. You can label each terminal for clear identification during maintenance. Furthermore, the compact design fits neatly into crowded control cabinets.

Installation and Wiring Guidelines

First, strip each wire to approximately 7 mm of exposed conductor. Next, loosen the terminal screw using a small flathead screwdriver. Then, insert the wire fully into the terminal opening. Finally, tighten the screw firmly to secure the connection.

The Siemens 6ES5497-4UB12 requires careful alignment when attaching to the module. You should push the connector straight onto the module pins. After attachment, secure the locking mechanism on both sides. Always verify each connection before applying power to the system.

This frontal connector works perfectly for new installations and retrofit projects. It supports analog signal wiring for temperature and pressure transmitters. Additionally, you can use it for digital I/O connections to sensors and actuators. The screw terminals accommodate field wiring from most industrial cable types.
