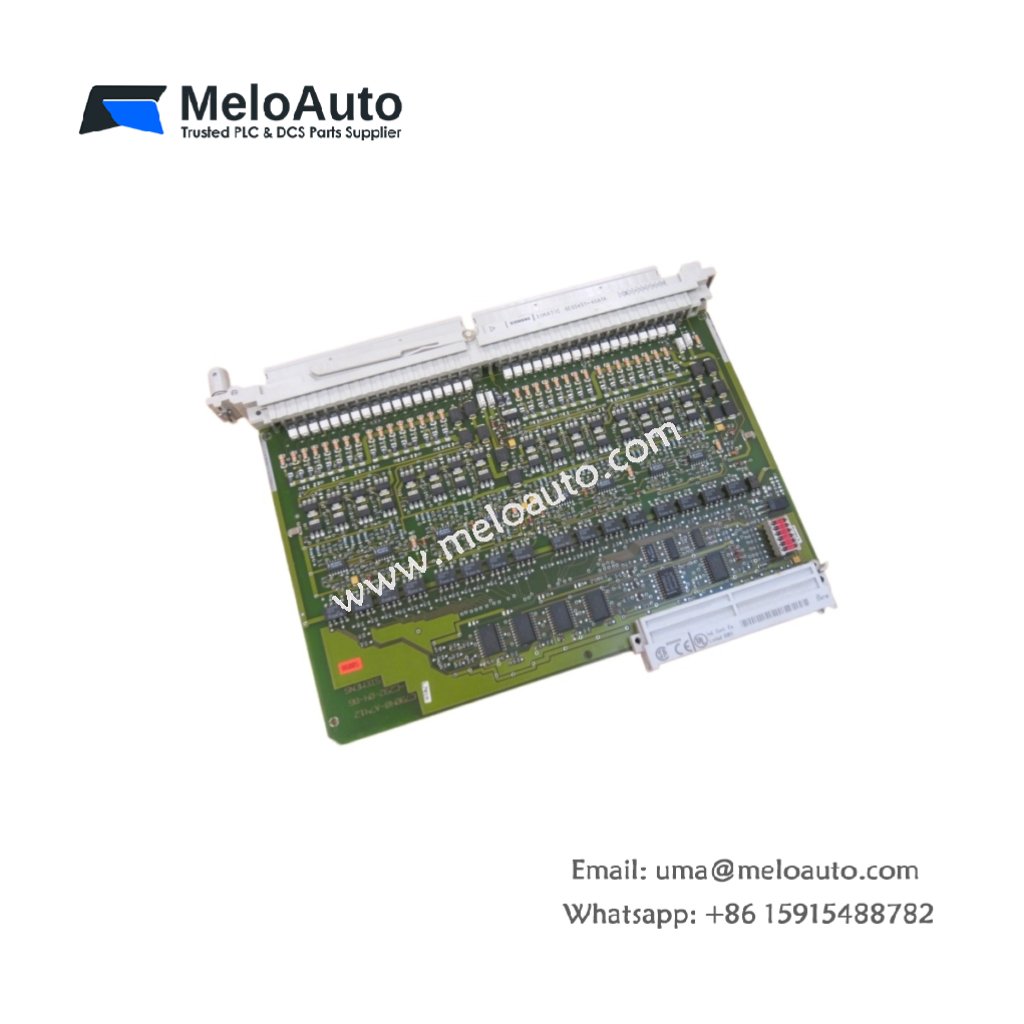

Siemens 6ES5451-4UA14 | SIMATIC S5 Digital Output Module

The Siemens 6ES5451-4UA14 provides eight digital output channels for SIMATIC S5 systems. This module operates on a 24V DC supply voltage for reliable signal transmission. Each channel delivers up to 2A of output current for driving actuators. You can use this card for solenoid control, relay switching, and indicator activation. Consequently, it suits industrial automation tasks requiring robust digital outputs.

Technical Specifications Overview

Parameter	Detailed Specification
Model	Siemens 6ES5451-4UA14
Category	SIMATIC S5 Digital Output Module
Number of Outputs	8 (isolated in groups of 4)
Output Type	Transistor, P-switching (source)
Rated Load Voltage	24V DC (20.4V to 28.8V)
Output Current per Channel	2 A (continuous)
Total Current per Group	4 A (maximum)
Lamp Load	5 W (maximum)
Switching Frequency	Up to 100 Hz (resistive load)
Internal Power Consumption	Typical 60 mA from 5V backplane
Dimensions (approx.)	250 mm x 25 mm x 130 mm
Weight	0.48 kg (480 grams)
Interface	20-pin frontal connector (screw type)
Operating Temperature	0°C to 60°C

Functional Features and Design Advantages

The Siemens 6ES5451-4UA14 uses fast transistor outputs for high-speed switching applications. You can connect each output directly to relays, contactors, or small solenoids. Furthermore, the module provides short-circuit protection on all eight channels. This protection prevents permanent damage during wiring faults or overloads.

Each output group has four channels sharing a common supply terminal. Consequently, you need separate external fuses for each group. The LED indicators on the front panel show the real-time status of every channel. You can monitor these lights for quick troubleshooting during operation.

Installation and Wiring Guidelines

First, install a compatible frontal connector like the Siemens 6ES5497-4UB12. Next, mount the Siemens 6ES5451-4UA14 securely into the S5 rack. Then, connect a 24V DC power supply to the load voltage terminals. Finally, wire your field devices to the appropriate output pins.

You should always use a fuse for each output group as external protection. The module does not include any internal energy storage or battery backup. Therefore, all outputs reset to zero after a power cycle. This behavior ensures a safe startup state for your machinery.

This digital output module works perfectly for discrete manufacturing tasks. It supports conveyor control, valve actuation, and signal lamp operation. The compact single-width design saves valuable rack space. You can replace the module without disconnecting the frontal wiring.
