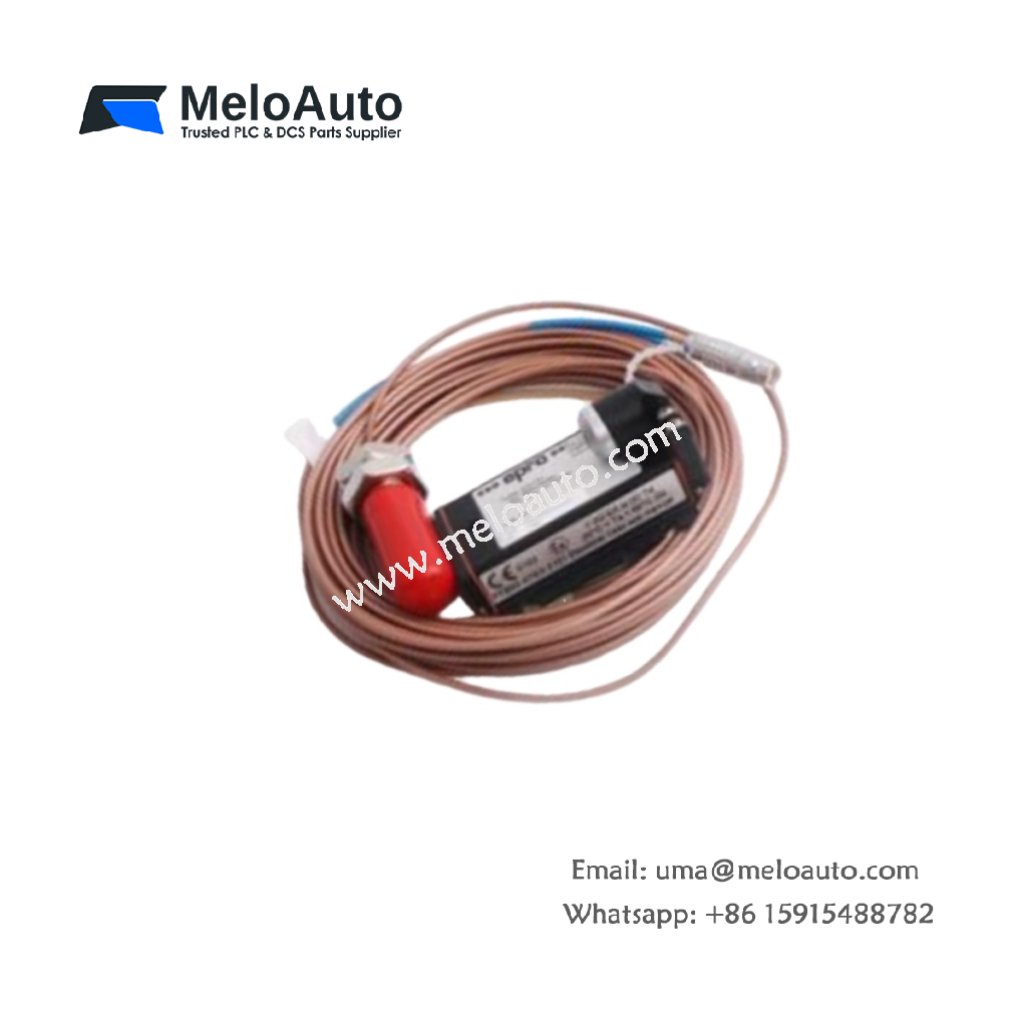

EPRO PR6423/078-110 Eddy Current Transducer for Accurate Vibration and Displacement Measurement

Overview

The EPRO PR6423/078-110 is a high-performance eddy current transducer system designed to measure key mechanical parameters like displacement, vibration, and shaft movement. This advanced system excels in a variety of industrial applications, such as energy generation, manufacturing, and machinery diagnostics. By utilizing a non-contact measurement principle, the PR6423/078-110 ensures high precision without any physical wear on components.

Thanks to its compact size, rugged design, and resistance to harsh environments, this sensor is perfect for demanding applications like turbomachinery, reactors, and pumps. Additionally, its capability to accurately monitor critical parameters helps improve predictive maintenance strategies, reducing downtime and increasing system reliability.

Key Features

• Non-contact Measurement: Measures displacement, vibration, and shaft motion without direct contact, preventing wear on monitored parts.
• Compact and Robust: The small size, durable build, and resistance to extreme environments make this sensor ideal for tough industrial settings.
• Easy Integration: The PR6423/078-110 integrates seamlessly into existing monitoring systems, simplifying installation and setup.
• High Accuracy: It provides precise and consistent measurements, enabling reliable data collection for machinery health monitoring.
• Pre-calibrated: The sensor is delivered fully adjusted, eliminating the need for on-site calibration. You only need to adjust the gap between the sensor and the object to optimize signal output.

Applications

The EPRO PR6423/078-110 is widely used for monitoring mechanical parameters in turbomachines and other rotating machinery. It’s highly effective for:

• Clearances Between Rotating and Stator Parts: Measures gaps between moving parts, ensuring efficient operation and preventing damage.
• Vibration Measurement: Monitors vibrations in rotating components, helping prevent premature wear and failure.
• Shaft Motion: Accurately detects dynamic motion, eccentricity, and radial shaft movements.
• Axial and Radial Displacement: Measures position changes to detect misalignment or potential issues.
• Thrust Bearing and Wear Detection: Monitors bearing positions and wear to predict maintenance needs.
• Oil Film Thickness: Measures oil film thickness to ensure proper lubrication and optimal performance.
• Differential Expansions and Housing Movements: Tracks expansions and valve positions to avoid structural issues.

Technical Specifications

Performance Specifications

Target and Surface Specifications

Environmental Specifications

Material and Physical Specifications

Why Choose the EPRO PR6423/078-110 Eddy Current Transducer?

• High Accuracy: This sensor provides precise measurements for monitoring vibration, displacement, and shaft motion.
• Non-contact Measurement: The PR6423/078-110 eliminates physical wear on components, improving long-term reliability and reducing maintenance costs.
• Built for Tough Environments: With an IP66 protection rating and a wide temperature range, it operates reliably in harsh industrial conditions.
• Seamless Integration: Easily integrates with existing systems, simplifying setup and allowing for faster deployment.
• Low Maintenance: Pre-calibrated and requiring minimal setup, this transducer reduces operational downtime and maintenance efforts.
