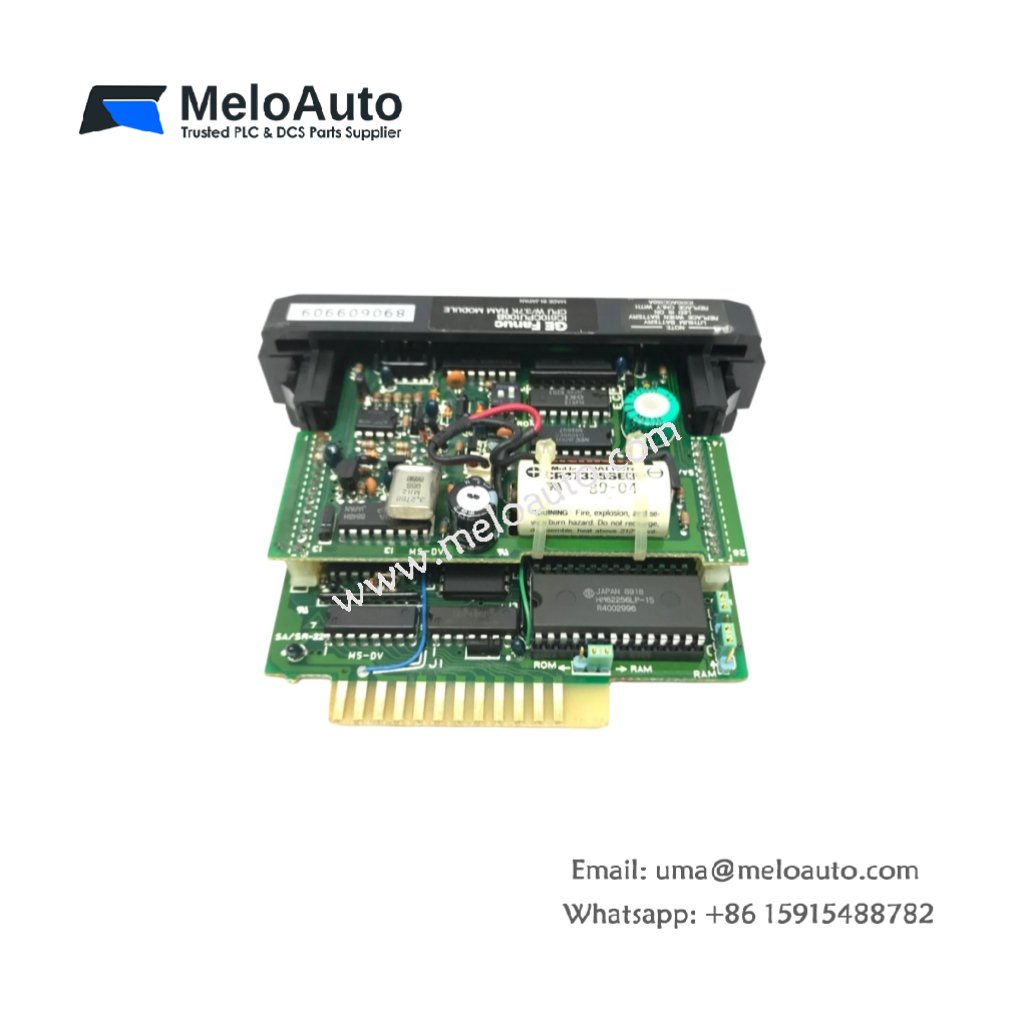

GE IC610CPU106B One Plus CPU Module for Series One PLCs

The IC610CPU106B serves as the central processor for GE Series One Plus PLC systems. This CPU module executes user logic and manages all I/O operations. You can rely on it for small to medium scale automation tasks.

Key Technical Parameters

The table below lists all essential technical specifications for this CPU module.

Physical Characteristics and Installation

This CPU module weighs approximately 0.48 kg for standard rack mounting. Its dimensions measure 160 mm x 90 mm x 50 mm for Series One chassis. First, slide the IC610CPU106B into the leftmost rack slot. Then, secure the module using the top and bottom locking tabs. Finally, connect the programming device to the RS-232 port. LED indicators on the front show run, stop, and fault status.

Memory Specifications and Backup

The IC610CPU106B integrates 6 KB of CMOS RAM for user program storage. Data memory provides 1 KB of retentive memory for critical variables. A lithium battery maintains both memories during power-down periods. The battery life reaches 2 years under normal conditions. Consequently, your program remains safe for extended equipment shutdowns.

I/O Capacity and Scan Speed

This CPU module supports up to 128 digital I/O points for discrete control. The scan speed measures 6 ms per 1K logic instructions. The IC610CPU106B works with Series One Plus I/O modules. The RS-232 port connects to handheld programmers or PCs. Use this CPU for small machine control and simple automation tasks.
