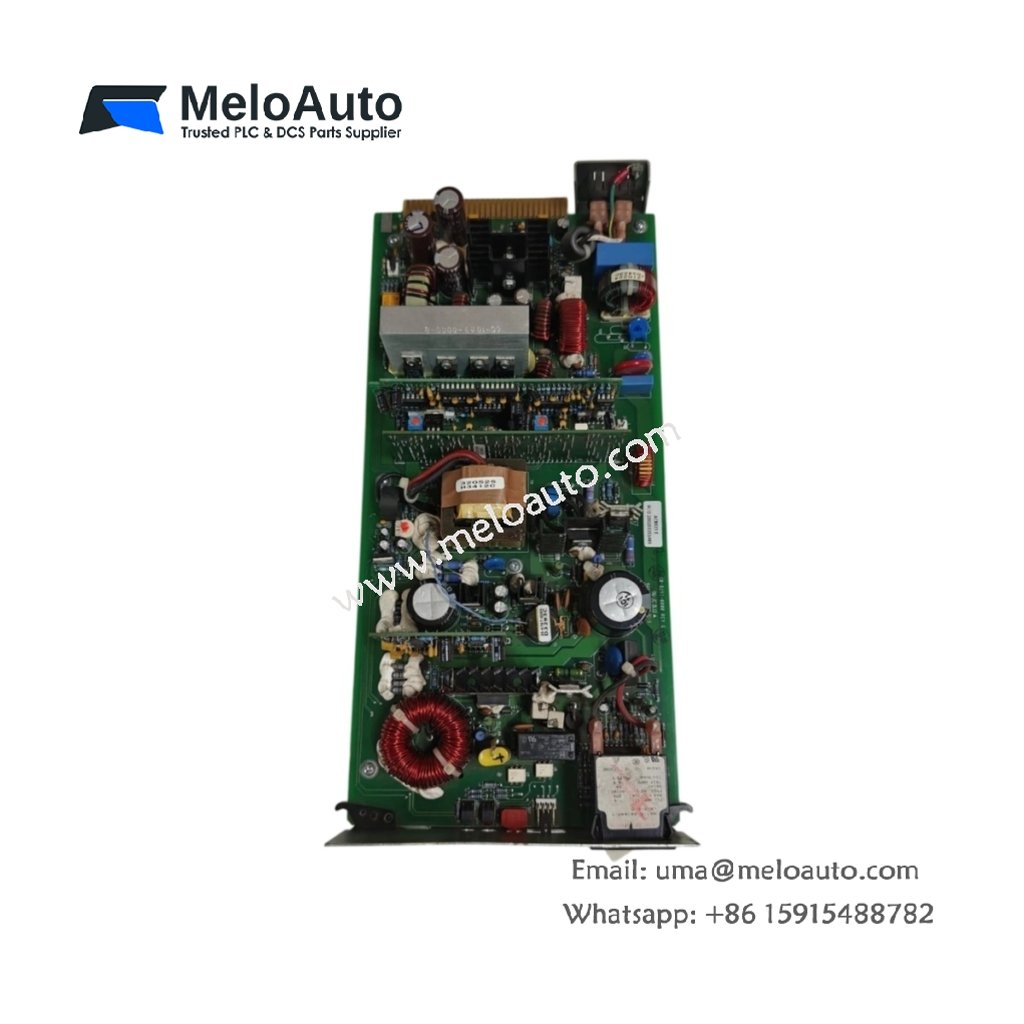

Honeywell 51196655-100 Power Supply Module

The 51196655-100 power supply module from Honeywell feeds industrial control racks with regulated DC power. Plant engineers install this unit whenever a cabinet needs a dependable, dedicated supply for its cards. Consequently, it keeps controllers, I/O modules, and communication boards running without interruption.

Key Technical Specifications

The table below outlines the main physical and electrical parameters of the 51196655-100 module.

Parameter	Specification
Product Type	Power Supply Module
Compatibility	Honeywell industrial control systems
Dimensions	Approximately 250 mm x 130 mm x 60 mm
Weight	Approximately 1.2 kg (2.6 lbs)
Mounting	Cabinet baseplate or panel frame
Interface	Backplane power bus and status indicator lines
Connectors	Screw terminal blocks and multi-pin connector
Component Count	Multiple regulators, transformers, and protection circuits
Energy Storage	Bulk capacitors for voltage ride-through
Input Voltage	Wide-range AC mains input
Output Rails	Multiple regulated DC output voltages
Operating Temperature	0 degrees C to 60 degrees C
Storage Temperature	-40 degrees C to 85 degrees C
Humidity	5% to 95% non-condensing

Functional Overview

This module converts AC mains power into clean, isolated DC rails for downstream cards. Therefore, it shields sensitive logic circuits from ripple and line transients. The 51196655-100 also monitors output status and signals faults through front-panel indicators. Meanwhile, its onboard energy storage sustains output during brief input interruptions.

Installation and Handling Notes

Always verify input voltage and polarity before connecting the 51196655-100 to a live cabinet. In addition, inspect bulk capacitors for swelling or leakage during routine service. Tighten all power terminals to the specified torque value. Finally, record measured rail voltages in your maintenance log.
