High-Density Digital Input Acquisition for S5-115U Systems

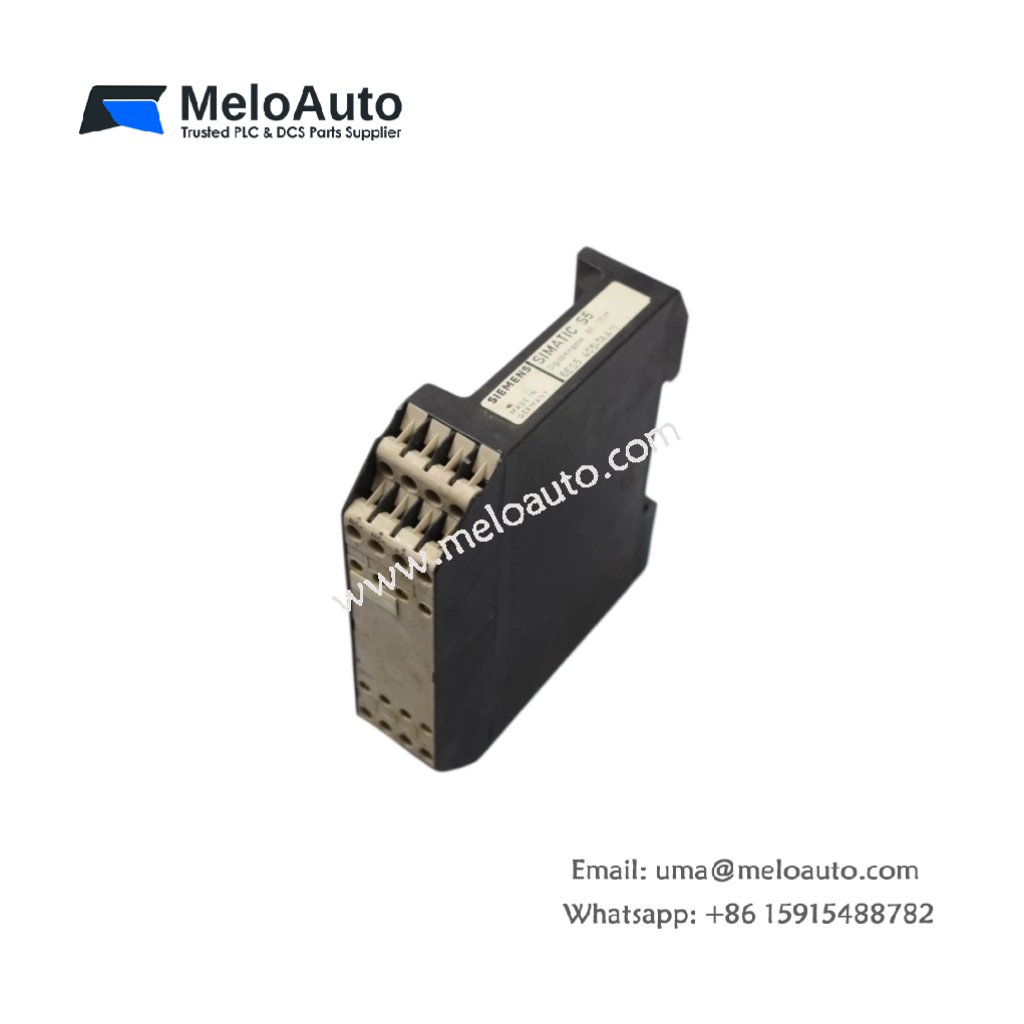

The Siemens 6ES5405-7AA11 input module provides high-density digital signal acquisition for S5-115U PLC systems. This module interfaces with field devices such as limit switches, pushbuttons, and proximity sensors. Manufacturing automation systems rely on this module for reliable and consistent input signal processing.
Input Specifications and Electrical Characteristics
This input module features 32 sinking input channels with individual LED indicators for status monitoring. Each channel accepts 24 V DC signals with a nominal current of 7 mA at 24 V. The inputs incorporate built-in debounce filters that suppress transient noise pulses. Furthermore, the module includes reverse polarity protection on the common supply terminal.
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 6ES5405-7AA11 |
| Number of Inputs | 32 (sinking) |
| Input Voltage | 24 V DC (20.4–28.8 V) |
| Input Current per Channel | 7 mA (at 24 V) |
| Input Impedance | 3.3 kΩ |
| Debounce Filter | Software-selectable (0–10 ms) |
| Isolation | Opto-isolated (per channel) |
| Dimensions (W x H x D) | 40 mm x 125 mm x 118 mm |
| Weight | 0.35 kg |
| Power Consumption | 5 V DC at 180 mA |
| Compatible CPUs | S5-115U |
| Operating Temperature | 0°C to 55°C |
Input Circuit Design and Signal Processing
The Siemens 6ES5405-7AA11 uses opto-isolators to separate each input channel from the internal logic. This isolation protects the CPU from external voltage spikes and ground loops. An integrated RC filter suppresses high-frequency noise on the input lines. Additionally, the module supports both sourcing and sinking sensor connections through the common terminal configuration.
Diagnostic Features and Status Indication
Individual green LEDs on the front panel display the status of each input channel. A red LED indicates a blown fuse or power supply fault condition. The module also provides a collective fault signal to the CPU for system monitoring. These diagnostic features simplify troubleshooting and reduce system downtime.
Physical Design and Installation Details
This input module features a compact 40 mm housing that saves valuable panel space. The unit weighs approximately 0.35 kilograms, allowing straightforward installation and replacement. A 32-pin connector provides access to all input terminals and the common supply. The module uses screw-type terminals that accept wires from 0.5 mm² to 2.5 mm².
System Integration and Addressing
You can install this input module in any slot of the S5-115U central or expansion rack. The module automatically maps its 32 inputs to consecutive addresses in the I/O table. Users can configure input filters and interrupt settings through the programming software. The module supports hot-swapping for quick replacement without system shutdown.
Application Guidelines and Environmental Ratings
This input module operates reliably in ambient temperatures from 0°C to 55°C. The unit carries an IP20 protection rating, suitable for clean control cabinet environments. For long sensor cable runs, use shielded cables to maintain signal integrity. Always connect the common terminal to the correct polarity for proper operation.
