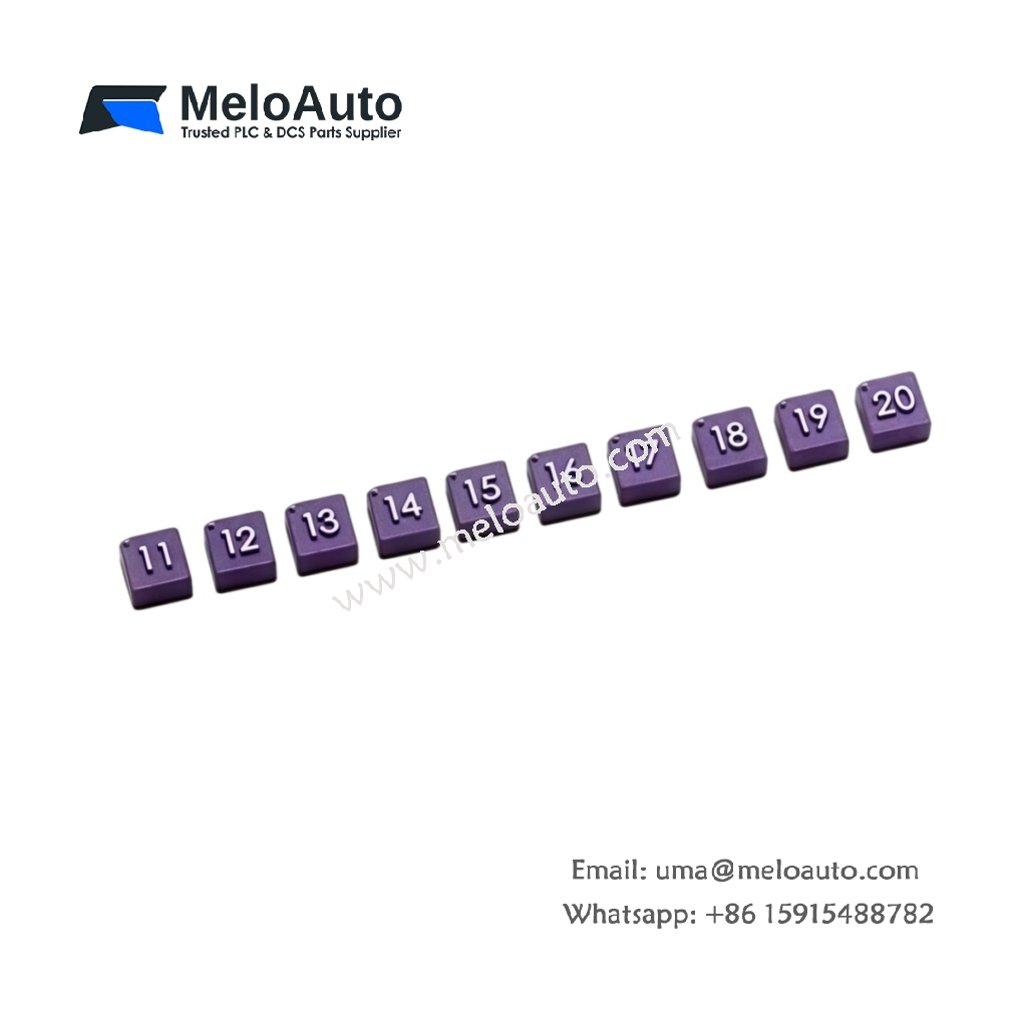

Honeywell 51153818-104 Controller Jumper Kit Specs

The 51153818-104 controller jumper kit from Honeywell configures signal paths on process control boards. This kit supplies pre-formed jumpers that link board terminals for specific operating modes. Engineers choose this kit when they need fast configuration changes and reliable electrical contact.

Technical Specifications

Parameter	Specification
Product Model	51153818-104
Module Type	Controller Jumper Kit
Function	Board signal path configuration
Interface	Pin header and terminal contacts
Mounting	Direct fit on controller board
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Weight	Approx. 0.08 kg
Dimensions	Approx. 80 mm × 50 mm × 10 mm
Energy Storage	None required for operation
Component Count	Multiple pre-formed jumper links per kit

Interface and Configuration Details

The 51153818-104 fits directly onto controller board pin headers and terminal contacts. Each jumper link bridges defined points and sets the board to a specific mode. Therefore, technicians gain fast configuration changes without soldering or wire cutting. The kit ships with labeled links that match common setup combinations.

Physical and Environmental Parameters

The kit measures roughly 80 mm by 50 mm by 10 mm and weighs about 0.08 kg. Its small package stores easily in maintenance cabinets and service kits. Meanwhile, the 0°C to 60°C operating range covers typical control room conditions. The molded links hold firm contact through vibration and thermal cycling.

Why This Kit Matters

Plant teams value the 51153818-104 for its precise fit and simple installation. The pre-formed links remove guesswork from board configuration tasks. As a result, setup errors drop and commissioning finishes faster. Technicians also appreciate the clear labeling and the secure contact retention.
