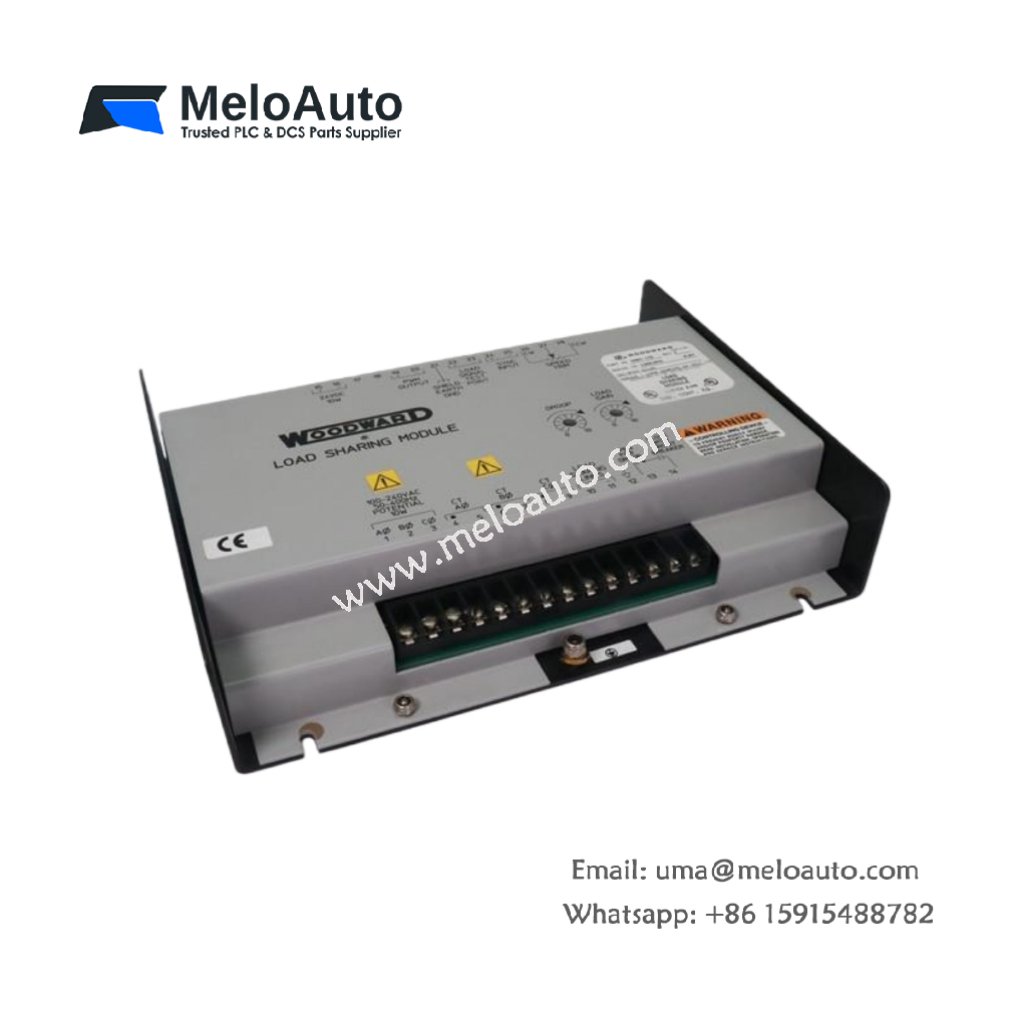

Woodward 9907-175 Load Sharing Module for Caterpillar Engines

Overview

The Woodward 9907-175 Load Sharing Module is designed for seamless integration with Caterpillar engines featuring digital speed control with pulse width modulation (PWM) input. This module enables efficient load sharing between the Caterpillar speed controller and engines managed by Woodward components, enhancing system performance and reliability in industrial automation and control applications. With built-in protections and compatibility with Woodward SPM-A synchronizers, the 9907-175 provides flexibility for a wide range of control systems.

Key Features

Manufacturer: Woodward
Model Number: 9907-175
Product Type: Load Sharing Module
Applications: Industrial Automation, Control Systems
Power Supply: 18 to 32 VDC, approximately 5 Watts
Protection: Under-voltage, over-voltage, and reverse voltage protection
Input Compatibility: Compatible with Woodward SPM-A synchronizer

Environmental Specifications

Specification	Details
Operating Temperature	-40°C to +70°C
Shock Resistance	40g, 11ms sawtooth pulse
Vibration Resistance	1 mm peak-to-peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz
Relative Humidity	5% to 95%, non-condensing
Airborne Contaminants	ISA-S71.04-1985 Class G3

Physical Specifications

Specification	Details
Length	273.6 mm (10.8 inches)
Width	214.1 mm (8.4 inches)
Height	59.2 mm (2.3 inches)
Weight	0.95 kg
Exterior Color	Beige

Detailed Description

The Woodward 9907-175 Load Sharing Module is engineered for advanced control systems that require precise load sharing functionality. It facilitates smooth integration between Caterpillar engines and Woodward-controlled engines, ensuring optimized power management. This module comes with a versatile power supply that operates within a voltage range of 18 to 32 VDC, consuming approximately 5 Watts of power.

With robust protection mechanisms in place, the 9907-175 safeguards against under-voltage, over-voltage (beyond 80 VDC), and reverse voltage (down to -32 VDC). It also features three-phase PT inputs, designed for line-to-line operation at 100 to 240 V/AC. The PT input burden is rated at 1.5 to 1.7 VA per phase at 240 V/AC and 0.4 to 0.5 VA per phase at 120 V/AC, making it highly efficient for varying input conditions.

The module’s compact dimensions of 273.6 x 214.1 x 59.2 mm (10.8 x 8.4 x 2.3 inches) ensure easy integration into most industrial control systems. Its beige exterior offers durability, although the unit is not suitable for environments with high humidity or dust. This makes it ideal for controlled environments in industrial applications where load sharing is crucial.

Applications

Industrial Automation: Perfect for systems requiring precise load sharing across engines with different controllers.
Power Systems Control: Helps manage power distribution in complex multi-engine setups.
Marine and Heavy Machinery: Ideal for use with Caterpillar engines and Woodward components in demanding environments.
