GE QPI-2D100-L2P QuickPanel | 10.4 Inch Color HMI VGA

This operator interface provides color touchscreen control for industrial machinery. It visualizes production data and accepts operator commands. You will mount this panel on machine enclosures or swing arms.

Key Technical Specifications

The QPI-2D100-L2P features a 10.4-inch TFT color LCD display. Its analog resistive touch screen responds to gloved hand inputs. The panel also includes a bright CCFL backlight for excellent visibility.

Parameter	Technical Data
Product Type	QuickPanel HMI (Color Graphic Interface)
Display Type	10.4 inch TFT LCD (active matrix)
Resolution	640 x 480 pixels (VGA)
Display Colors	256 colors

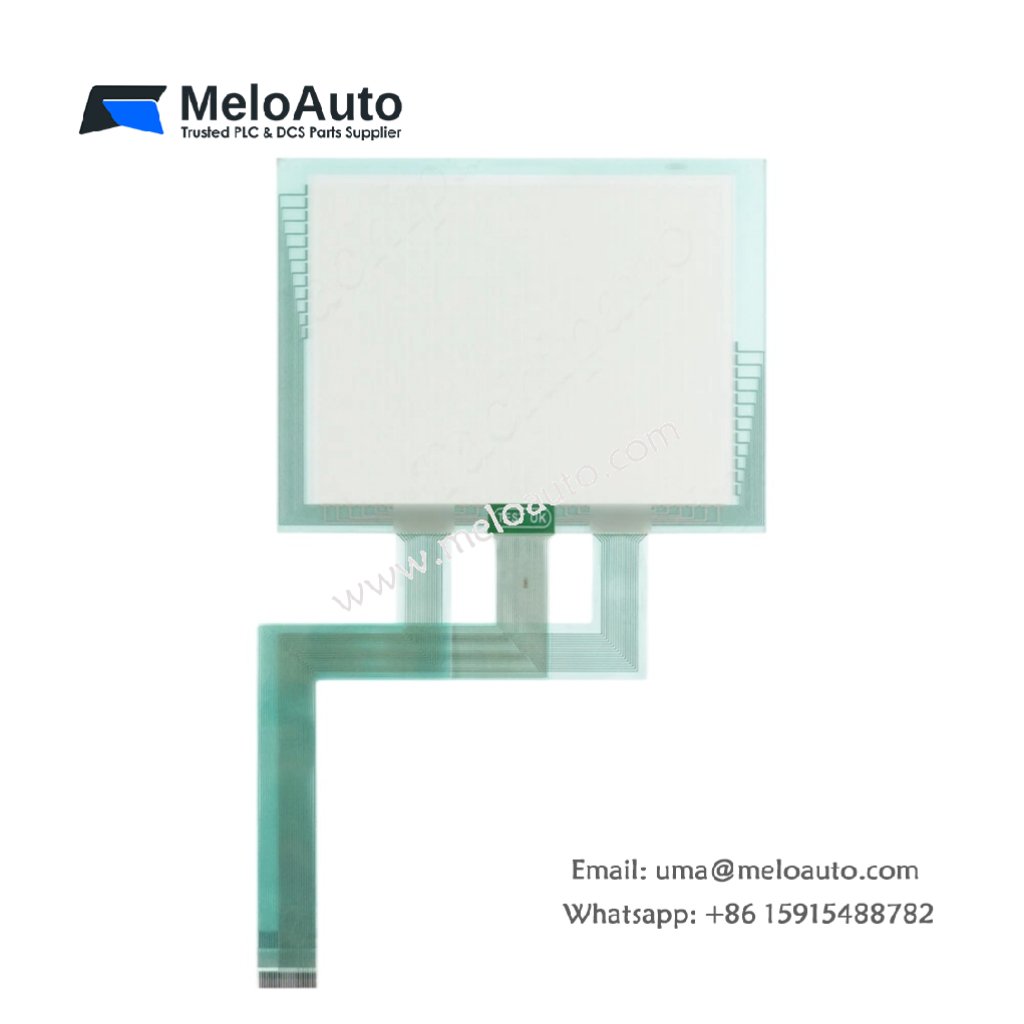

Touch Technology	Resistive, analog (4-wire)
Backlight	CCFL (user replaceable)
Brightness	300 cd/m² typical
Dimensions (W x H x D)	30.5 cm x 23.5 cm x 6.0 cm
Cutout Dimensions	28.2 cm x 21.2 cm
Total Weight	2.2 kg (4.85 lbs)
Serial Ports	2 x RS-232, 1 x RS-422/485
Ethernet Port	1 x 10Base-T (RJ45)
Power Supply	24V DC ±20%
Onboard Memory	4 MB flash, 2 MB DRAM
Energy Storage	1000 µF input filtering
Operating Temperature	0°C to 50°C
Protection Rating (Front)	IP65 (NEMA 4)

Hardware Architecture and Memory Storage

The QPI-2D100-L2P integrates a 32-bit RISC processor running at 66 MHz. Four megabytes of flash memory store application screens and configuration data. Two megabytes of DRAM handle runtime variables and alarm logs. The CCFL backlight provides approximately 30,000 hours of typical operation.

Interface and Connectivity

Two RS-232 serial ports connect the panel to PLCs and barcode scanners. One RS-422/485 port supports multi-drop networking for up to 31 devices. A 10Base-T Ethernet port allows network connectivity for data logging. The rear panel also features a contrast adjustment and a reset button.

Practical Installation Notes

Cut a 28.2 x 21.2 cm hole in the cabinet door for flush mounting. The QPI-2D100-L2P requires 10 cm clearance behind the panel for cables. Use the included mounting clamps to secure the unit from the rear. Clean the resistive touch surface only with a soft, damp cloth.
